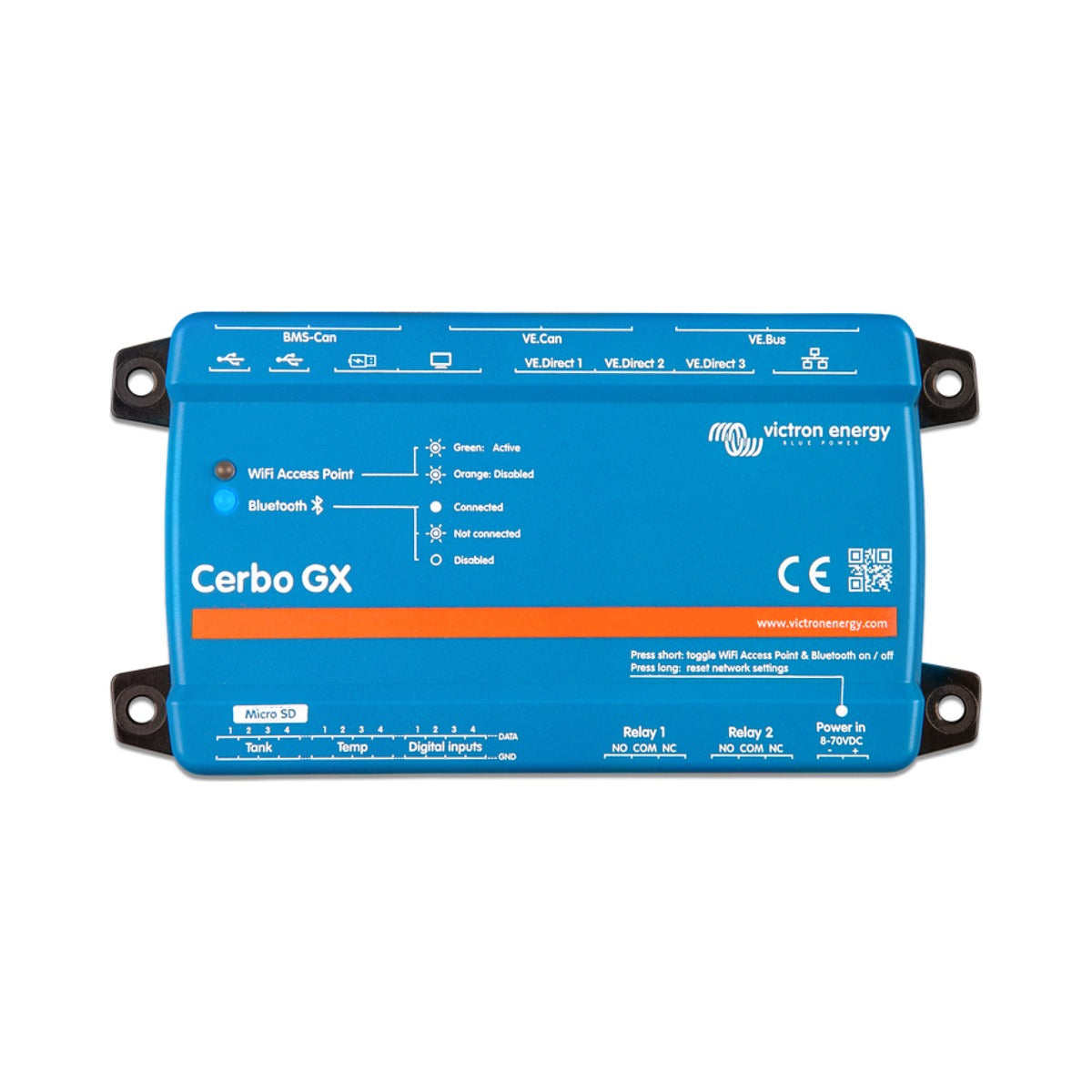

Victron Cerbo GX MK2
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Cerbo GX MK2 is the system controller at the heart of a Victron installation. It gathers data from the connected inverters, chargers, MPPT solar controllers, battery monitors and tank senders, then presents the whole system in one place and logs it to the free VRM online portal for remote monitoring.
This is the second-generation Cerbo, with faster hardware and two independent VE.Can ports. Connections cover three VE.Direct ports, VE.Bus, Ethernet and 2.4 GHz Wi-Fi, plus four resistive tank inputs, four temperature inputs, four digital inputs and two programmable relays for tasks such as generator start and stop or alarm signalling. Bluetooth is provided to simplify the initial network setup.
The Cerbo GX MK2 has no screen of its own. Add a GX Touch 50 or GX Touch 70 for a local display at the helm, or view and control the system through VRM, a web browser or a marine MFD. The unit mounts on a wall or, with the separate adapter, on a 35 mm DIN rail.
PRODUCT DETAILS
- Central GX controller for monitoring and controlling a Victron system
- Logs all system data to the free VRM online portal for remote monitoring
- Two independent VE.Can ports and three isolated VE.Direct ports
- Ethernet and 2.4 GHz Wi-Fi connectivity, with Bluetooth for setup
- Four tank-level, four temperature and four digital inputs
- Two programmable relays for generator start/stop or alarms
- Wide 8 to 70 VDC supply suits 12, 24 and 48 V systems
- No built-in screen; add a GX Touch 50 or GX Touch 70 for a local display
No compatible transducers listed for this product.
No compatible products found.
Key specifications
| Device type | System controller (GX device) |
| Display | None (use a GX Touch display) |
| Supply voltage | 8 - 70 |
| Connectivity | Ethernet, Wi-Fi (2.4 GHz), Bluetooth, VE.Can, VE.Bus, VE.Direct |
| Protection category (IP) | IP20 |
Electrical
| Relays | 2 x NO/NC; DC up to 30VDC: 6A, DC up to 70VDC: 1A, AC: 6A 125VAC |
Communication ports
| VE.Direct ports | 3 (max. possible VE.Direct devices: 15) |
| VE.Bus | 2 paralleled RJ45 sockets (isolated) |
| VE.Can | VE.Can 1 isolated, VE.Can 2 non-isolated |
| Ethernet | 10/100 RJ45 socket (isolated except shield) |
| Wi-Fi | Yes, 2.4 GHz (2.412 - 2.462 GHz) |
| Bluetooth | Yes (setup and networking only; 2.402 - 2.48 GHz) |
I/O
| Resistive tank level inputs | 4 |
| Temperature sense inputs | 4 |
| Digital inputs | 4 (with pulse counting) |
Physical
| Dimensions (h×w×d) | 78 x 154 x 48 |
Operating conditions
| Operating temperature range | -20 to +50 |
