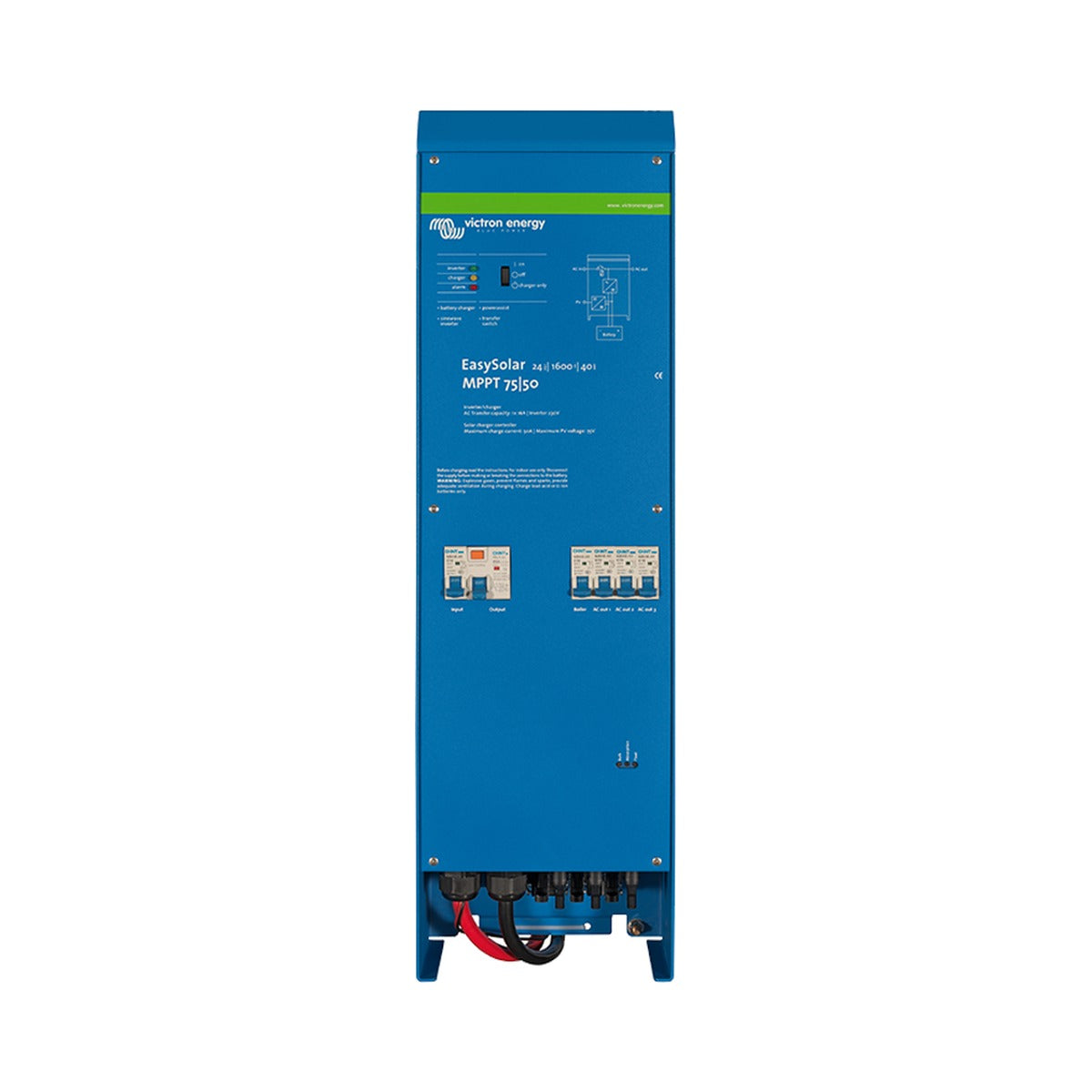

Victron EasySolar 24/1600/40-16 MPPT 100/50
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron EasySolar 24/1600/40 is an all-in-one solar power solution that combines a BlueSolar MPPT 100/50 charge controller, a MultiPlus Compact 24/1600/40 inverter/charger and AC distribution in a single enclosure. Built around a 24 V battery bank, it is designed for quick installation with a minimum of wiring on cabins, boats and small off-grid systems.
The inverter delivers 1600 VA of clean 230 VAC pure sine wave power, while the batteries can be charged from solar through the 50 A MPPT controller and from the grid or a generator through the 40 A charger. Unique PowerAssist technology protects the shore or generator supply from being overloaded by adding inverter power from the battery when it is needed.
Integrated AC distribution includes a 30 mA residual current device and four outputs protected by two 10 A and two 16 A circuit breakers, one of which is live only when AC input is present. Up to three strings of PV panels connect through MC4 connectors, and the system can be configured for a range of grid-interactive or stand-alone applications.
PRODUCT DETAILS
- All-in-one: MultiPlus Compact inverter/charger, MPPT 100/50 and AC distribution in one enclosure
- 1600 VA pure sine wave inverter with a 230 VAC, 50 Hz output for 24 V battery banks
- 40 A mains charger plus a 50 A BlueSolar MPPT controller (up to 1400 W PV, 100 V)
- PowerAssist adds battery power to protect a limited shore or generator supply
- Built-in AC distribution with a 30 mA RCD and four breaker-protected outputs
- Up to three PV strings via MC4 connectors for flexible solar layouts
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| System voltage | 24 V |
| Continuous output power | 1600 VA |
| Continuous output power at 25°C | 1300 W |
| Peak power | 3000 W |
| Maximum charge current | 40 A |
| Transfer switch | 16 A |
AC inputs
| AC input voltage range | 187 to 265 VAC |
| AC input frequency | 45 to 65 Hz |
| Maximum feed-through current | 16 A |
Inverter
| DC input voltage range | 19 to 33 V |
| Output voltage / frequency | 230 VAC ±2%, 50 Hz ±0.1% |
| Cont. output power at 25°C (VA) | 1600 VA |
| Cont. output power at 25°C (W) | 1300 W |
| Cont. output power at 40°C (W) | 1200 W |
| Peak power | 3000 W |
| Maximum efficiency | 94% |
| Zero load power | 10 W |
| Zero load power in Search mode | 3 W |
Charger
| Charge voltage 'absorption' | 28.8 V |
| Charge voltage 'float' | 27.6 V |
| Storage mode | 26.4 V |
| Charge current house battery | 40 A |
| Charge current starter battery | 4 A |
| Battery temperature sensor | Yes |
Solar charger
| Model | BlueSolar MPPT 100/50 |
| Maximum output current | 50 A |
| Maximum PV power | 1400 W |
| Maximum PV open circuit voltage | 100 V |
| Maximum efficiency | 98% |
| Self-consumption | 10 mA |
| Charge algorithm | Multi-stage adaptive |
Connectivity & control
| Programmable relay | Yes |
Protection
| Protection | Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on inverter output, input voltage ripple too high |
Environmental
| Operating temperature range | -20 to +50°C (fan-assisted cooling) |
| Humidity (non-condensing) | Max 95% |
Physical
| Material & colour | Aluminium, blue RAL 5012 |
| Protection category | IP21 |
| Battery connection | Battery cables of 1.5 metre |
| 230 VAC connection | G-ST18i connector |
| Weight | 15 kg |
| Dimensions (h x w x d) | 745 x 214 x 110 mm |
Conformance
| Safety | EN 60335-1, EN 60335-2-29, EN 62109 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-3-3 |
