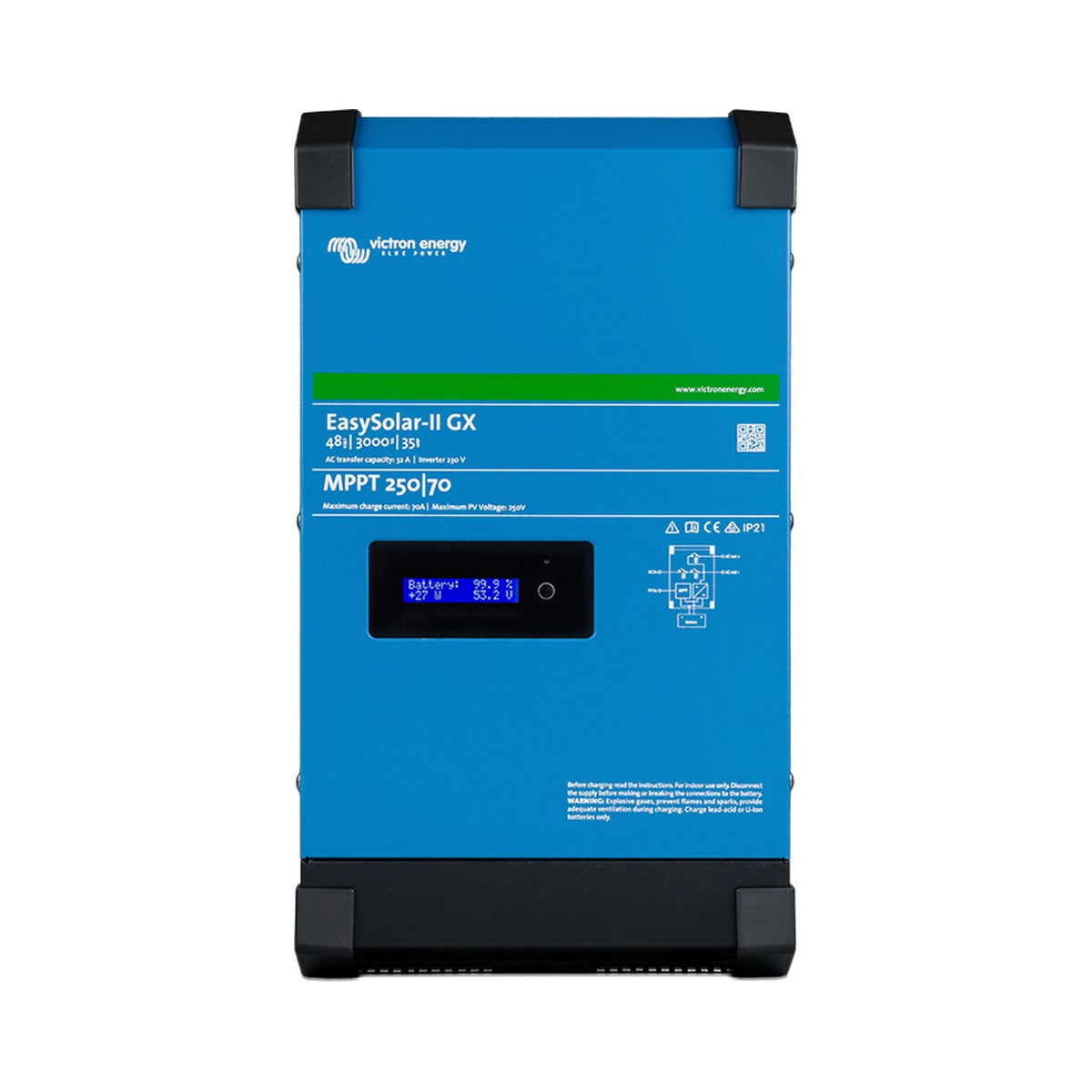

Victron EasySolar-II GX 48/3000/35 250/70
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron EasySolar-II GX 48/3000/35 is a complete solar power solution in one enclosure. It brings together a MultiPlus-II inverter/charger, a SmartSolar MPPT 250/70 solar charge controller and a GX monitoring device, all pre-wired at the factory. For a 48 V system this dramatically reduces installation time and wiring on marine, vehicle and off-grid projects, and the 48 V architecture keeps DC currents low.
The 3000 VA pure sine wave inverter delivers clean 230 VAC mains power, while the 35 A charger and the 70 A MPPT controller keep the battery topped up from shore power, a generator or solar. PowerAssist tops up a limited shore or generator supply with battery power to prevent overload, and the integrated transfer switch hands loads to the inverter in under 20 milliseconds during an outage.
The built-in GX device, with its 2 x 16 character display and Wi-Fi, reads battery, inverter and solar data and gives free remote monitoring and configuration through the VRM portal. A BMS-Can port allows connection to a compatible managed lithium battery. The MPPT accepts up to 250 V of PV open circuit voltage and 4000 W of solar, making panel layout flexible.
PRODUCT DETAILS
- All-in-one: MultiPlus-II inverter/charger, SmartSolar MPPT 250/70 and GX device pre-wired
- 3000 VA pure sine wave inverter with a 230 VAC, 50 Hz output for 48 V battery banks
- 35 A mains charger plus a 70 A MPPT solar charge controller (up to 4000 W PV, 250 V)
- PowerAssist boosts limited shore or generator supply with battery power to avoid overload
- Integrated GX device with 2 x 16 display and Wi-Fi for local and VRM remote monitoring
- BMS-Can interface for compatible managed lithium batteries
- Uninterrupted transfer to inverter in under 20 milliseconds during a power failure
- Compact pre-wired enclosure that cuts installation time and wiring
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| System voltage | 48 V |
| Continuous output power | 3000 VA |
| Continuous output power at 25°C | 2400 W |
| Peak power | 5500 W |
| Maximum charge current | 35 A |
| Transfer switch | 32 A |
AC inputs
| AC input voltage range | 187 to 265 VAC |
| AC input frequency | 45 to 65 Hz |
| Maximum feed-through current | 32 A |
Inverter
| DC input voltage range | 38 to 66 V |
| Output voltage / frequency | 230 VAC ±2%, 50 Hz ±0.1% |
| Cont. output power at 25°C (VA) | 3000 VA |
| Cont. output power at 25°C (W) | 2400 W |
| Cont. output power at 40°C (W) | 2200 W |
| Cont. output power at 65°C (W) | 1700 W (at 55°C) |
| Peak power | 5500 W |
| Maximum efficiency | 95% |
| Maximum apparent feed-in power | 3000 VA |
| Zero load power | 11 W |
| Zero load power in Search mode | 2 W |
| Zero load power in AES mode | 7 W |
Charger
| Charge voltage 'absorption' | 57.6 V |
| Charge voltage 'float' | 55.2 V |
| Storage mode | 52.8 V |
| Maximum charge current | 35 A |
| Battery temperature sensor | Yes |
Solar charger
| Model | SmartSolar MPPT 250/70-Tr |
| Maximum output current | 70 A |
| Maximum PV power | 4000 W |
| Maximum PV open circuit voltage | 250 V |
| Maximum efficiency | 99% |
| Self-consumption | 20 mA |
Connectivity & control
| Built-in GX device | Yes, with 2 x 16 character display |
| VE.Bus communication port | For parallel and three-phase operation, remote monitoring and system integration |
| General purpose comms port | Yes, 2x |
| Programmable relay | Yes |
| Auxiliary output | 32 A |
| Remote on/off | Yes |
| Monitoring | BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi |
Protection
| Protection | Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on inverter output, input voltage ripple too high |
Environmental
| Operating temperature range | -20 to +45°C (fan-assisted cooling) |
| Humidity (non-condensing) | Max 95% |
| Maximum altitude | 2000 m |
Physical
| Material & colour | Aluminium, blue RAL 5012 |
| Protection category | IP21 |
| Battery connection | M8 bolts |
| 230 VAC connection | Screw terminals 16 mm² |
| Weight | 26 kg |
| Dimensions (h x w x d) | 499 x 268 x 237 mm |
Conformance
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
