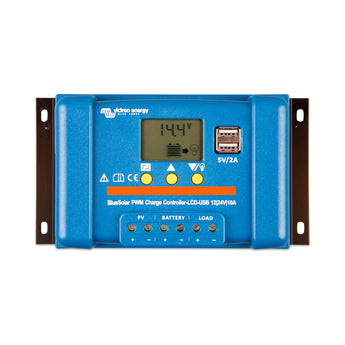

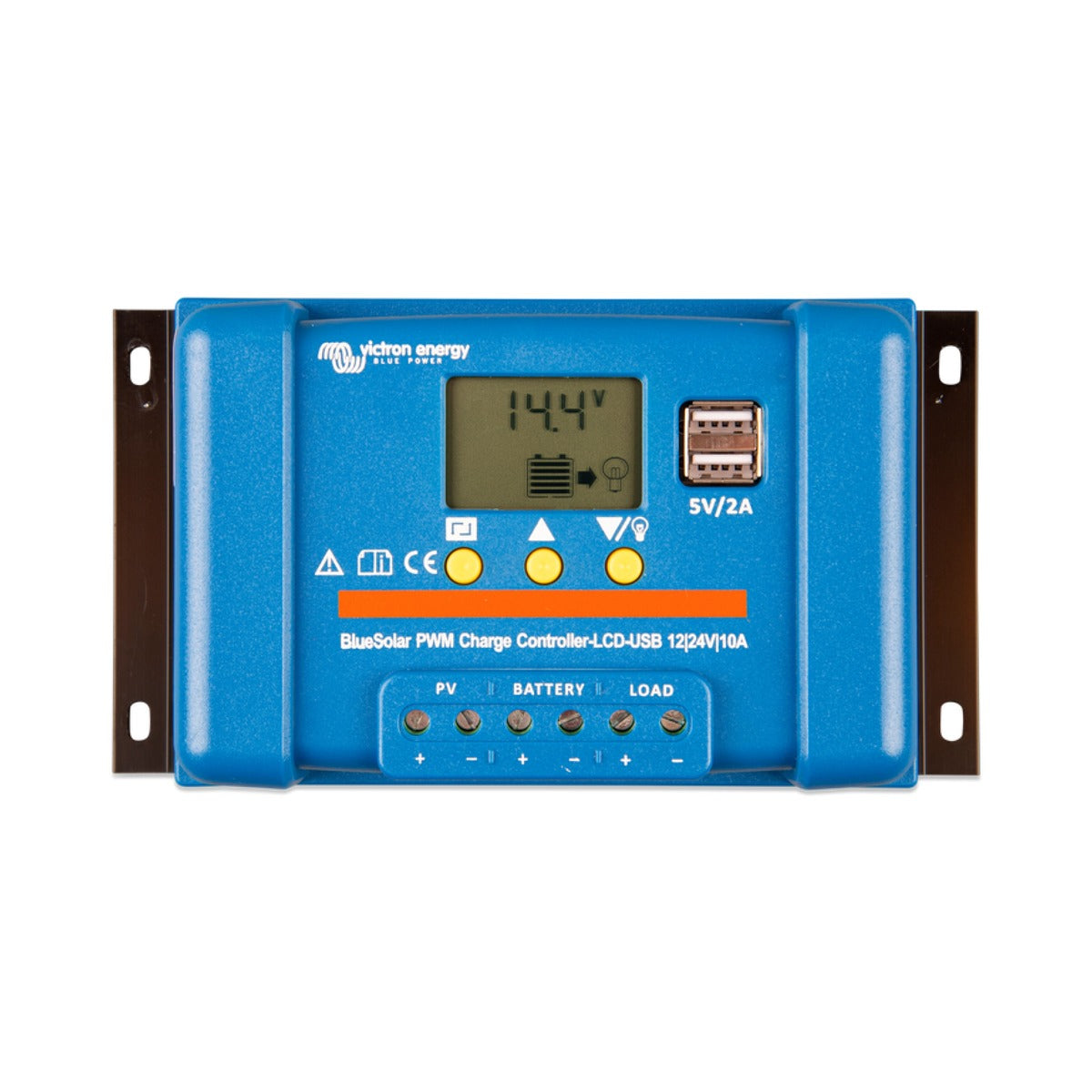

Victron BlueSolar PWM LCD&USB 12/24V 30A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron BlueSolar PWM Charge Controller LCD&USB combines an economical pulse width modulation (PWM) solar regulator with a built-in liquid crystal display and two USB charging outputs. It automatically detects whether the system is 12V or 24V and manages solar charging for flooded, GEL, AGM or LiFePO4 batteries, making it a practical choice for boats, campers and small off-grid setups.
At 30A this is the largest LCD&USB model, suited to multi-panel arrays where a built-in display and simple set-up matter. The integrated LCD shows charging status and system data and lets you adjust settings without a computer, and two 5V USB outputs (2A combined) charge phones and small devices directly.
A load output with adjustable connect and disconnect voltages and a day/night timer protects the battery from over-discharge and can drive automatic lighting. Preprogrammed charge algorithms cover the common battery chemistries out of the box.
PRODUCT DETAILS
- PWM charge controller for 12V or 24V systems
- Automatic system voltage detection on connection
- 30A rated charge current
- Built-in LCD display for status and set-up
- Two 5V USB outputs, 2A combined
- Preset algorithms for AGM, GEL, flooded and LiFePO4 batteries
- Load output with adjustable disconnect and day/night timer
- Protected against reverse polarity, short circuit and over temperature
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Rated charge current | 30 A |
| System voltage | 12/24 V (automatic detection) |
| Controller type | PWM |
Electrical
| Charge stages | Three stage with preset AGM, GEL, flooded and LiFePO4 algorithms |
| Load output | Manual control, low voltage disconnect and day/night timer |
Physical
| Dimensions | 101 x 184 x 47 mm |
| Protection category | IP20 |
