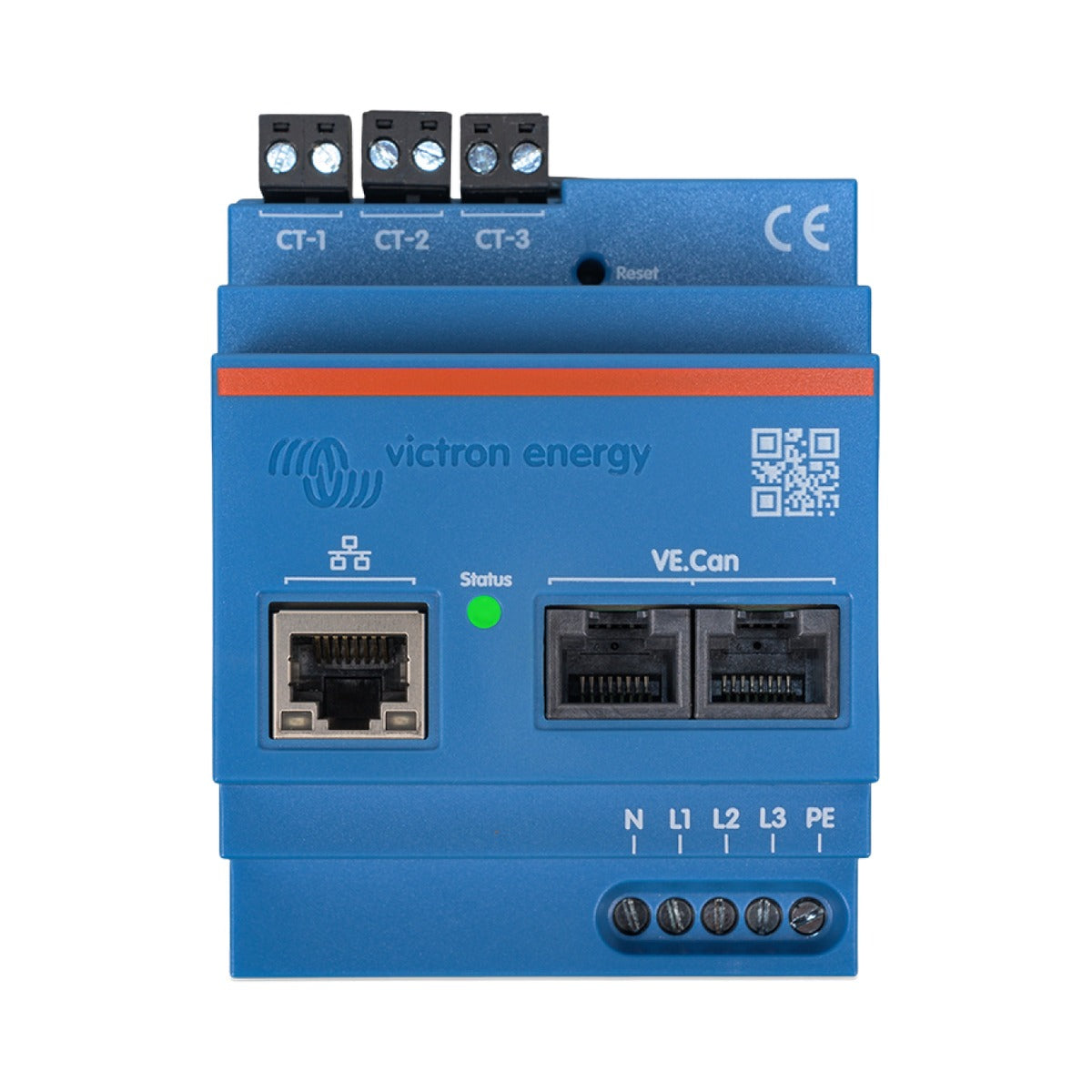

Victron Energy Meter VM-3P75CT (3-Phase, VE.Can)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron VM-3P75CT is Victron's own three-phase energy meter, designed to measure the power and energy of single-phase, split-phase and three-phase applications, for example at the distribution board or on the output of a PV inverter, AC generator or inverter/charger. Unlike the rebadged Carlo Gavazzi meters, it is engineered by Victron for native integration with the Victron ecosystem.
It uses supplied clamp-type current transformers to sense current up to 75 A per phase (rated) without modifying existing wiring, and connects to a GX device such as a Cerbo GX or Ekrano GX over VE.Can or Ethernet. The VE.Can connection is a direct link to the GX device that works independently of any network, while Ethernet suits installations where a network already reaches the board. It works out of the box as a grid meter for most systems, with configuration through VictronConnect needed only to change its role or set a fixed IP address.
A high 100 ms refresh rate gives accurate power, grid-import and feed-in figures for ESS systems, and the meter reports a full set of electrical parameters including line-to-neutral and line-to-line voltage, power factor, phase sequence and protective-earth voltages. A configurable energy registration method (vector, arithmetic or absolute) makes it suitable across different regional requirements. It is covered by Victron's standard five-year warranty.
PRODUCT DETAILS
- Victron three-phase energy meter, also suitable for single-phase and split-phase
- Measures up to 75 A per phase using the supplied clamp-on current transformers
- Native VE.Can and Ethernet (Modbus UDP) connection to the GX device
- Plug and play as a grid meter, no configuration required for most systems
- High 100 ms refresh rate for accurate grid-import and feed-in measurement
- Reports line-to-line and line-to-neutral voltage, power factor and phase sequence
- Configurable energy registration (vector, arithmetic or absolute)
- Compact DIN-rail housing, current transformers and VE.Can terminators included
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Phases | Three-phase (also single-phase and split-phase) |
| Maximum current | 75 A per phase (via supplied current transformers) |
| Communication | VE.Can and Ethernet (Modbus UDP) |
Electrical
| Measurement | Reports line-to-line and line-to-neutral voltage, power factor, phase sequence and protective-earth voltage |
| Current measurement | Via clamp-type current transformers (included, 640 mm lead) |
| Input voltage range | 85 to 265 VAC (L-N), 150 to 460 VAC (L-L) |
| Frequency | 50 / 60 Hz |
| Refresh rate | 100 ms |
| Power supply | Self-powered via L1-N, consumption 1.45 W / 3.1 VA |
Physical
| Mounting | DIN-rail |
| Dimensions | 90 x 71 x 59 mm (H x W x D) |
| Material and colour | Polycarbonate, blue (RAL 5012) |
| Protection category | IP20 |
| Weight | 370 g (including packaging) |
Environmental
| Operating temperature | -10 to +55°C (indoor only) |
