Victron

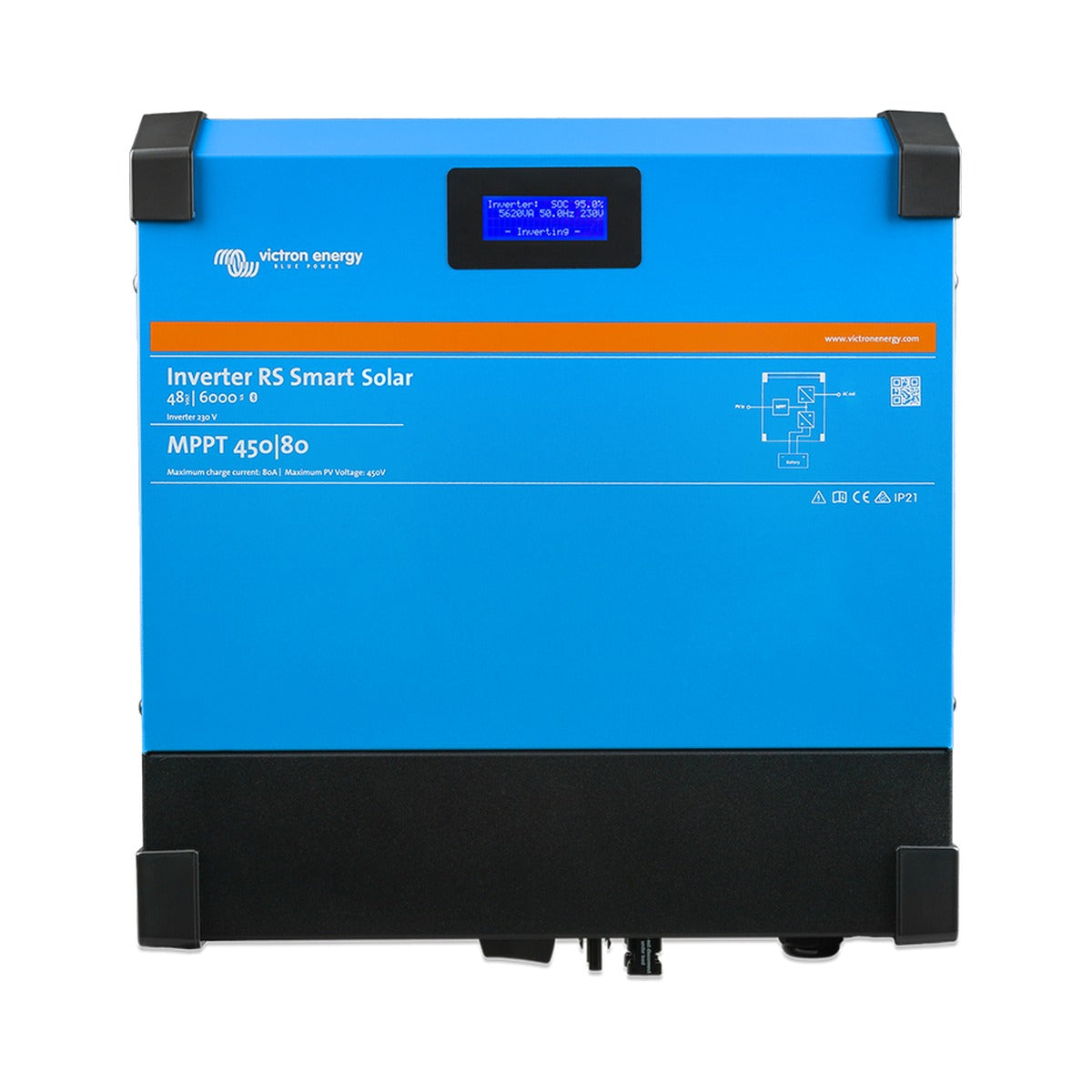

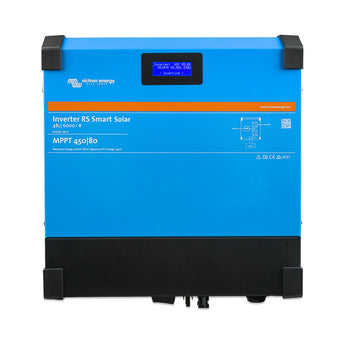

Victron Inverter RS 48/6000 230V Smart Solar
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Inverter RS 48/6000 Smart Solar is a premium off-grid power unit that combines a powerful 48V, 6kVA, 230V pure sine wave inverter with a high-voltage 80 to 450V, 4kW MPPT solar charger in a single enclosure. Designed for solar-based off-grid systems, it lets your panels charge the battery and supply loads directly while the inverter delivers clean mains power.
Modern high-frequency engineering keeps the unit to just 11 kg, with excellent efficiency of up to 96.5%, very low standby consumption and quiet operation. A built-in colour display shows battery, inverter and solar charger data at a glance, and the same information is available over Bluetooth through the VictronConnect app.
For larger installations, up to twelve units can be paralleled, with three-phase systems supporting four units per phase. A VE.Can port connects the inverter to a GX device such as the Cerbo GX for system integration and remote monitoring, while a VE.Direct port suits a GlobalLink 520. A generator can be added through an external battery charger when extra power is needed.
PRODUCT DETAILS
- Combined 48V 6kVA inverter and 80 to 450V 4kW MPPT solar charger
- Pure sine wave 230V, 50Hz output for off-grid solar systems
- High efficiency up to 96.5% with low standby consumption
- Compact and light at just 11 kg with quiet operation
- Built-in colour display plus Bluetooth via the VictronConnect app
- VE.Can for GX devices and VE.Direct for the GlobalLink 520
- Scales to twelve parallel units and three-phase systems
- Comprehensive protection and a 5-year warranty
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous power (VA) | 6000 VA |
| Continuous power (W) | Increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC |
| Peak power | 9 kW for 3 seconds, 7 kW for 4 minutes |
| System voltage | 48 V |
| Output voltage & frequency | 230 VAC, 50 Hz |
| Maximum efficiency | 96.5% at 1 kW load (94% at 5 kW load) |
Output
| Continuous power at 40°C | 4500 W |
| Continuous power at 65C | 3000 W |
| Output AC voltage (adjustable) | 230 VAC plus or minus 2% (adjustable to 240 VAC) |
| Output frequency (adjustable) | 50 Hz plus or minus 0.1% (adjustable to 60 Hz) |
| Output waveform | Pure sine wave |
| Maximum continuous inverter current | 25 Aac |
| Short-circuit output current | 45 A |
| Maximum AC output overcurrent protection | 30 A |
Input
| DC input voltage range | 38 - 62 V (minimum start-up 41 VDC, over-voltage disconnect 65.5 V) |
| Low battery shutdown | 37.2 V (adjustable) |
| Low battery restart | 43.6 V (adjustable) |
General
| Zero-load power | 20 W |
| Protections | Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on inverter output, solar earth leakage |
| Programmable relay | Yes (DC rating 4 A up to 35 VDC, 1 A up to 70 VDC) |
| Communication ports | VE.Direct, VE.Can and Bluetooth |
| Remote on/off | Yes |
| Parallel and three-phase operation | Up to 12 parallel units; three-phase supports 4 units per phase |
Environmental
| Operating temperature range | -40 to +65C |
| Cooling | Fan-assisted |
| Maximum altitude | 2000 m |
| Humidity (non-condensing) | Max 95% |
Enclosure
| Material & colour | Steel, blue RAL 5012 |
| Battery connection | M8 bolts |
| PV connection | 2 positive and 2 negative MC4 |
| AC connection | Screw terminals 10 mm2 (6 AWG) |
| Protection category | IP21 (Protective Class I) |
| Dimensions (H x W x D) | 425 x 440 x 125 mm |
| Weight | 11 kg |
Standards & Certifications
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| EMC | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
Solar charger
| Maximum PV voltage | 450 V |
| PV start-up voltage | 120 V |
| MPPT voltage range | 65 - 450 V |
| Maximum operational PV input current | 18 A |
| Maximum PV short-circuit current | 20 A |
| Maximum solar charging power | 4000 W |
| Earth leakage trip level | 30 mA |
Battery charger
| Programmable charge voltage range | 36 - 60 V |
| Absorption voltage | 57.6 V (default, adjustable) |
| Float voltage | 55.2 V (default, adjustable) |
| Maximum charge current from AC | 88 A at 57.6 V |
| Total combined charge current (AC + PV) | 100 A |
| Battery temperature sensor | Included |
