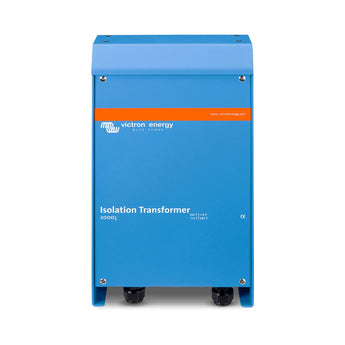

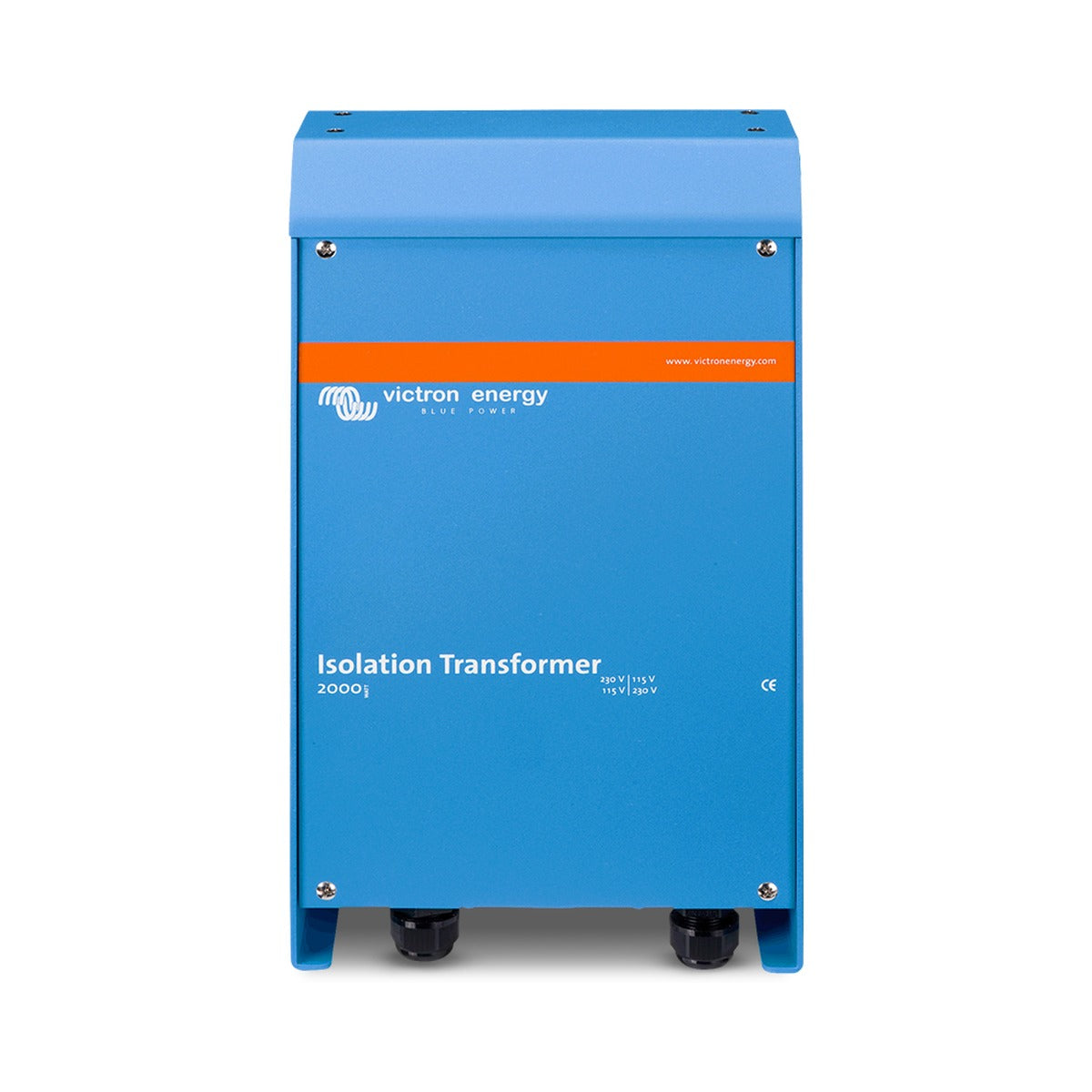

Victron Isolation Transformer 2000W (2kVA)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Isolation Transformer 2000W is a professional marine transformer that completely breaks the electrical connection between shore power and your vessel. Shore power feeds the primary winding and the boat is connected to the isolated secondary, so there is no direct continuity between the two. This eliminates stray current and galvanic corrosion, protecting your shaft, propeller, sacrificial anodes and other underwater metals, and it removes the need for a separate galvanic isolator or polarity alarm.
Because the boat is fully isolated from the shore earth, you can safely connect to almost any shore supply anywhere in the world. The unit works with 115V or 230V systems and can also convert between them, so it doubles as a step-up or step-down transformer (115V to 120V, 230V to 240V, 115V to 240V or 230V to 120V). A 1:1.05 winding ratio raises the output by 5% to compensate for the voltage drop that is common in busy marinas.
Toroidal winding technology keeps the transformer quiet, efficient and compact, while a built-in soft start limits inrush current so the shore breaker does not trip when you plug in. The rugged aluminium enclosure carries an IP21 rating and, like all core Victron products, the transformer is backed by a five year warranty.
PRODUCT DETAILS
- Full galvanic isolation between shore power and vessel, stopping stray-current and galvanic corrosion
- Removes the need for a separate galvanic isolator or polarity alarm
- Usable on 115V or 230V systems and converts between them (115/120V and 230/240V)
- 1:1.05 winding ratio boosts output by 5% to offset marina voltage drop
- Toroidal core for low noise, high efficiency and low weight
- Soft start limits inrush current so the shore breaker does not trip when connecting
- Rugged aluminium enclosure, IP21 protection, five year warranty
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous power | 2 kVA (2000 W) |
| Rated current | 8.5 A at 230V (17 A at 115V) |
| Input voltage | 115 / 230 V |
| Output voltage | 120 / 240 V |
| Transformer type | Isolation (toroidal) |
| Protection category (IP) | IP21 |
Electrical
| Continuous power | 2 kVA (2000 W) |
| Output current rating | 8.5 A at 230V, 17 A at 115V |
| AC input voltage | 115 or 230 V |
| AC output voltage | 120 or 240 V |
| Automatic input voltage detection | No |
| Voltage ratio (input to output) | 1:1.05 |
| Frequency | 50/60 Hz |
| Galvanic isolation | Yes |
| Maximum 240V feed-through current | Not applicable |
| Neutral current (30 min) | Not applicable |
| Neutral current (continuous) | Not applicable |
| Soft start (inrush current limiter) | Yes |
| Over-temperature protection | Yes |
| Ground relay for Multi/Quattro | Not applicable |
Connections
| Input circuit breaker | Yes |
| Split-phase output balancing | Not applicable |
Mechanical
| Dimensions (h x w x d) | 375 x 214 x 135 mm |
| Weight | 12.7 kg |
| Enclosure material | Aluminium (blue RAL 5012) |
| Cooling | Fan cooled (temperature-controlled) |
Environmental
| Operating temperature range | -20 to +40°C |
| Humidity | Max 95%, non-condensing |
| Protection category | IP21 |
Standards
| Safety | EN 60076 |
| Marine approvals / certificates | CE (Declaration of Conformity), Russian River Boat Register |
