Victron
Victron MIDI Fuse 40A (58V)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

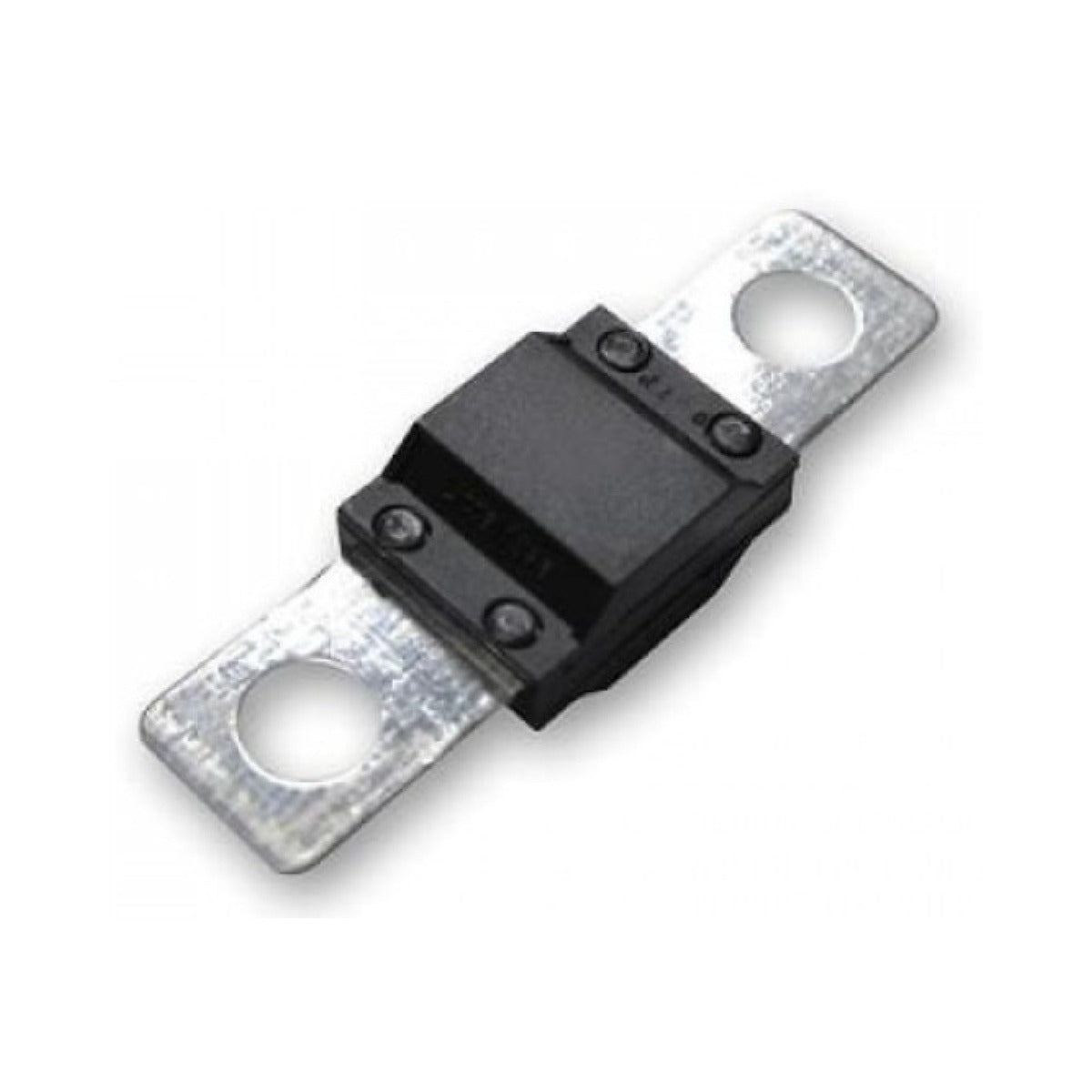

The Victron MIDI fuse is a compact bolt-down fuse designed to protect mid-range DC circuits, sitting between small blade fuses and the larger high-current MEGA fuse. It is commonly used on the DC feeds of 48V products, battery banks and distribution busbars where a neat, secure, mid-current fuse is needed.
This 40A version is rated for systems up to 58 volts, so it suits 12V, 24V and 48V installations. Its slow-blow characteristic tolerates normal inrush currents while protecting cabling and equipment against short circuits and sustained overloads. It mounts using M5 studs for a secure, low-resistance connection and fits neatly into the tight, high-vibration spaces found on boats and in vehicles.
PRODUCT DETAILS
- Rated 40A for mid-range DC circuit protection
- Rated for systems up to 58 volts, suits 12V, 24V and 48V
- Slow-blow characteristic tolerates normal inrush and surge currents
- Bolt-down design with M5 studs for a secure, low-resistance connection
- Compact body ideal for tight marine and vehicle installations
- Commonly used on the DC feeds of Victron 48V products
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Rated current | 40 A |
| Maximum voltage | 58 V |
| Fuse type | MIDI (slow-blow, bolt-down) |
Electrical
| Breaking capacity | High DC breaking capacity |
Physical
| Stud / mounting | M5 stud |
