Victron

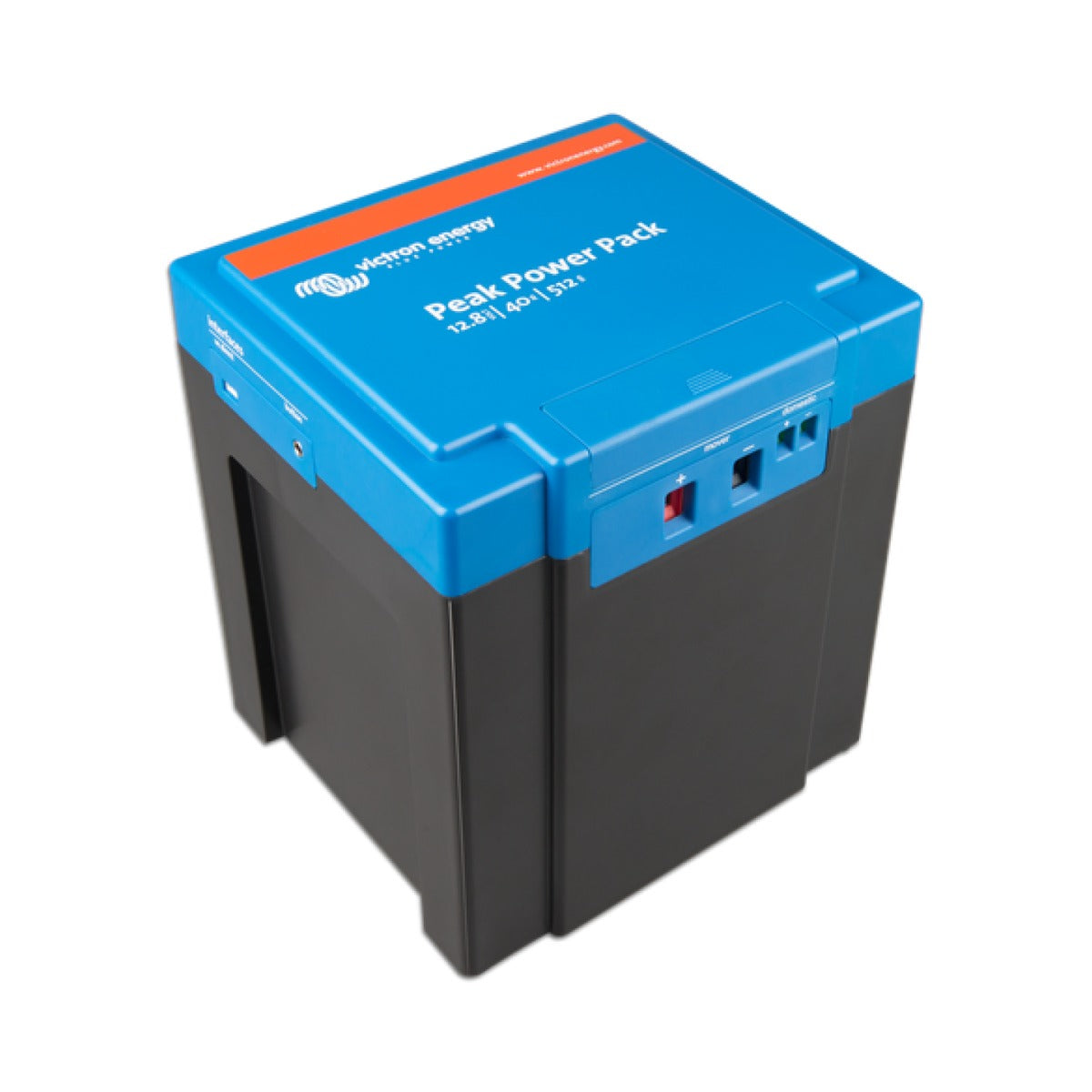

Victron Peak Power Pack 12.8V 40Ah
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Peak Power Pack is a portable 12.8V lithium-ion (LiFePO4) battery pack with a built-in charger and a high current output, designed to power tools, pumps and mobile equipment away from a fixed installation. Intrinsically safe LiFePO4 cells and a fully integrated management system make it a rugged, drop-in energy source for jobs where a conventional lead-acid battery would be too heavy or too easily damaged by deep discharge.
Two independent outputs handle different jobs. The high capacity 'mover' output delivers up to 150 A continuously (200 A for 10 seconds) for energy-intensive tasks such as caravan movers, while the 'domestic' output supplies up to 30 A for lighting, audio and video, pumps and fridges. Both outputs are short-circuit proof and protected against excessive discharge. On the 30Ah and 40Ah models the high capacity output also allows rapid charging from a battery charger or inverter/charger, up to 20 A on this 40Ah pack.
Charging is equally flexible. Input 1 accepts any source between 11 V and 25 V, so it can be topped up while driving from the vehicle alternator or from a solar panel, with current automatically limited to a safe value. Input 2 takes the supplied 110/230 V mains adapter. A multifunction push-button with a dual-colour LED handles operation and status, and a storage mode cuts consumption to almost nothing to protect the battery when the pack is not in use.
PRODUCT DETAILS
- Intrinsically safe 12.8V LiFePO4 lithium-ion cells with integrated management
- High capacity 'mover' output: 150 A continuous, 200 A for 10 seconds
- Separate 'domestic' output rated 30 A for lighting, pumps, fridges and electronics
- Rapid charging supported via the high capacity output (up to 20 A)
- Charges from a vehicle alternator or solar panel (11 to 25 V) or the supplied 110/230 V adapter
- Both outputs short-circuit proof and protected against excessive discharge
- Storage mode reduces consumption to almost zero to protect the battery
- VE.Direct port for monitoring from a PC or smartphone
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Nominal voltage | 12.8 V |
| Nominal capacity | 40 Ah |
| Nominal energy | 512 Wh |
| Maximum continuous discharge current | 150 A (high capacity output) |
| Bluetooth | Via VE.Direct Bluetooth Smart dongle (optional) |
Electrical
| Battery type | Lithium-ion (LiFePO4) |
| Round trip efficiency | 92 % |
| Self-discharge when activated | < 13 Ah/year (< 1.4 mA) |
| Self-discharge in storage mode | < 6.5 Ah/year (< 0.7 mA) |
Discharge
| Continuous output current (high capacity 'mover' output) | 150 A |
| Peak output current, mover (10 seconds) | 200 A |
| Short-circuit current (mover output) | 300 A |
| Continuous output current (domestic output) | 30 A |
| Peak output current, domestic (10 seconds) | 50 A |
Charge
| Rapid charging via high capacity output | Up to 20 A (recommended 14 V, max 14.2 V) |
| Input 1 (car/solar) voltage range | 11 V to 25 V |
| Input 1 (car/solar) current limit | 7 A |
| Input 2 (adapter) charging current | 3 A |
| Supplied adapter input | 110 / 230 V, 50 / 60 Hz |
BMS / protection
| Safety features | Overload, short-circuit, over-temperature and excessive-discharge protection |
| Operation and status | Multifunction push-button with dual-colour LED |
| Communication port | VE.Direct (PC or smartphone; dongle required) |
Operating conditions
| Operating temperature (discharge) | -20°C to +40°C |
| Operating temperature (charge) | 0°C to +40°C |
| Storage temperature | -20°C to +40°C |
| Humidity (non-condensing) | Max 95 % |
Physical
| Power connection / terminals | Screw clamps, max cable 16 mm² (mover) / 6 mm² (domestic) |
| Dimensions (h×w×d) | 212 x 190 x 172 mm |
| Weight | 8.6 kg |
