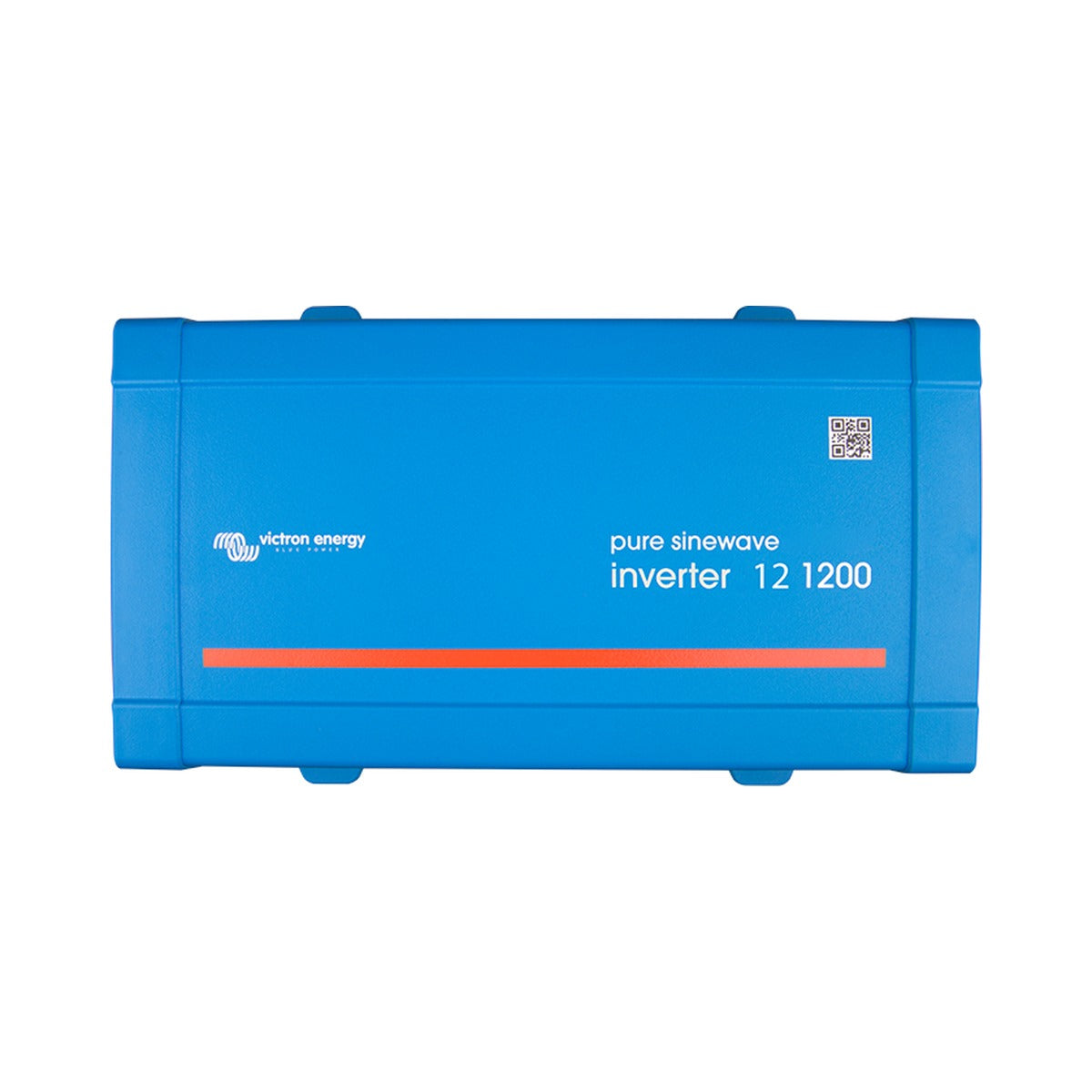

Victron Phoenix Inverter 12/1200 with DEFA 1m Cable
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Phoenix Inverter 12/1200 converts 12V battery power into clean 230V mains electricity, giving you a substantial source of household-quality power on board or off-grid. Its true pure sine wave output drives sensitive electronics, power tools and motors smoothly and quietly, just like shore power, and the headroom suits heavier appliances.
This Hudson Marine package supplies the inverter ready-fitted with a one-metre DEFA extension cable, so it integrates directly into a DEFA based shore-power or interior-heater installation without additional wiring. The steel-cased unit delivers a continuous 1000W (1200VA), a 2200W surge for demanding start-up loads, and an efficient ECO mode that reduces standby draw when idle. A two-pole remote on/off input and a VE.Direct data port make integration and monitoring simple.
PRODUCT DETAILS
- Pure sine wave 230V output for clean, reliable power to sensitive electronics
- Supplied with a DEFA one-metre extension cable pre-connected
- 1000W continuous (1200VA) with a 2200W peak for start-up surges
- ECO mode cuts standby consumption when no load is present
- Remote on/off input and VE.Direct port for monitoring and control
- Rugged steel chassis with fan-assisted cooling and full electronic protection
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous power (VA) | 1200 VA |
| Continuous power (W) | 1000 W |
| Peak power | 2200 W |
| System voltage | 12 V |
| Output voltage & frequency | 230 VAC, 50 Hz |
| Maximum efficiency | 91% |
Output
| Continuous power at 40°C | 850 W |
| Output AC voltage (adjustable) | 210 - 245 V |
| Output frequency (adjustable) | 50 Hz or 60 Hz ±0.1% |
| Output waveform | Pure sine wave |
Input
| Input voltage range | 9.2 - 17 V |
| DC low-voltage shut-down (adjustable) | 9.3 V |
| DC low-voltage restart & alarm (adjustable) | 10.9 V |
| Battery charged detect (adjustable) | 14.0 V |
General
| Zero-load power | 10 W |
| Zero-load power in ECO mode | 1 W |
| ECO mode stop and start power setting | Adjustable |
| ECO mode minimum load | 15 W |
| Protections | Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, DC ripple too high |
| Communication port | VE.Direct (USB or Bluetooth dongle sold separately) |
| Remote on/off | Yes (two-pole connector) |
Environmental
| Operating temperature range | -40 to +65°C (derate 1.25% per °C above 40°C) |
| Cooling | Fan-assisted |
| Humidity (non-condensing) | Max 95% |
Enclosure
| Material & colour | Steel chassis, plastic cover, blue RAL 5012 |
| Battery connection | Screw terminals |
| Maximum cable cross-section | 35 mm² (12V) |
| Standard AC outlet socket | Schuko CEE 7/4 |
| Protection category | IP21 |
| Dimensions (H x W x D) | 105 x 230 x 325 mm |
| Weight | 7.4 kg |
Standards & Certifications
| Safety | EN-IEC 60335-1, EN-IEC 62109-1 |
| EMC | EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Automotive Directive | ECE R10-4 |
