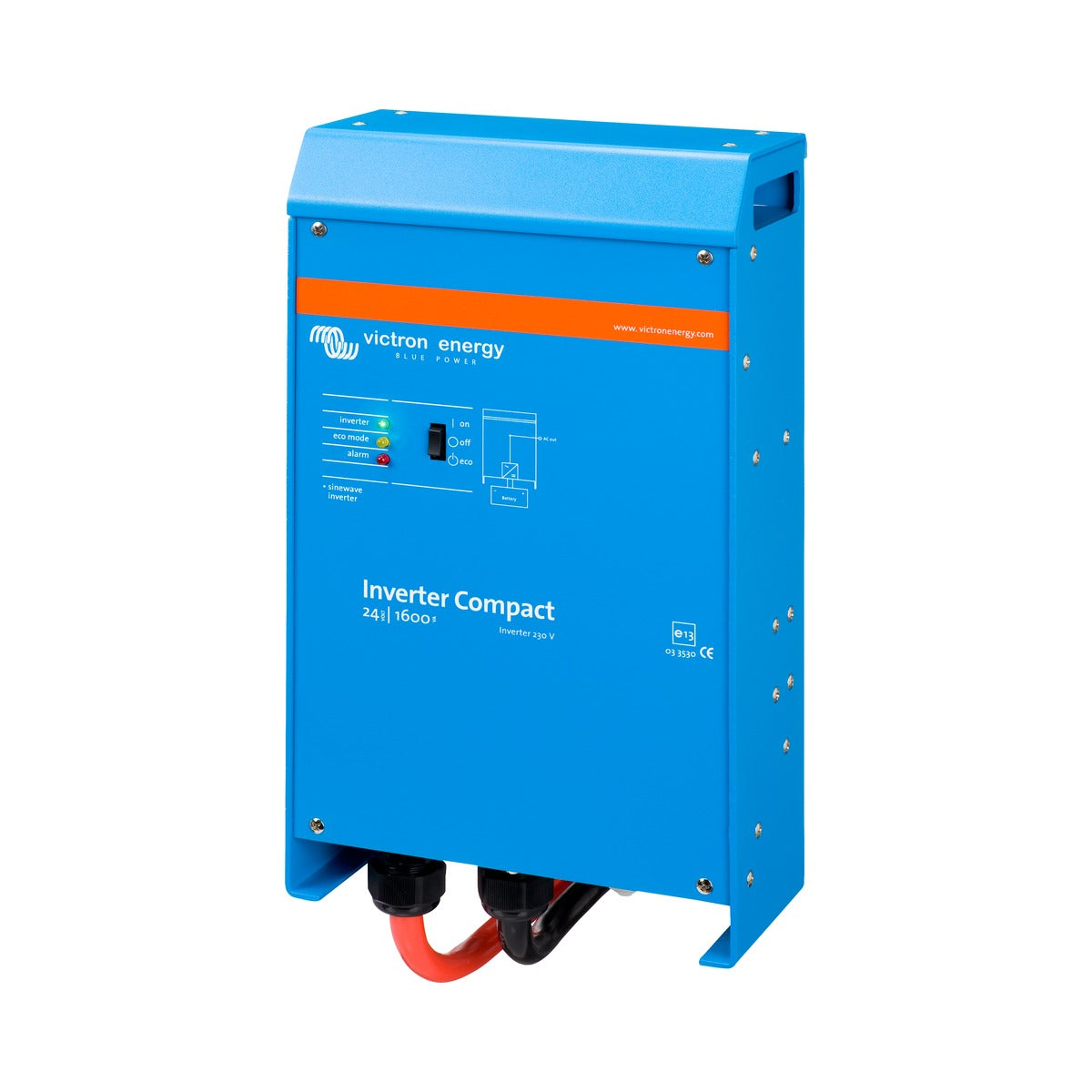

Victron Phoenix Inverter Compact 24/1600 (IEC)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Phoenix Inverter Compact 24/1600 is a pure sine wave inverter that converts 24V battery power into clean 230V, 50Hz mains electricity in a notably small and light enclosure. Built for professional duty around Victron's SinusMax hybrid design, it supplies a true sine wave to a wide range of loads while taking up minimal space, which makes it a popular choice for boats, vans and compact off-grid installations.
It is rated at 1600VA with 1300W of continuous output at 25C and a 3000W peak. High start-up power lets it handle demanding loads such as small motors, pumps and power tools. To simplify installation, 1.5 metre battery cables are included and the AC output uses a plug-in G-ST18i connector.
A VE.Bus communication port allows parallel and three-phase operation as well as remote monitoring and configuration through VictronConnect, VEConfigure and a GX device such as the Cerbo GX. The inverter includes comprehensive protection and Victron's standard 5-year warranty.
PRODUCT DETAILS
- Pure sine wave 230V, 50Hz output from a 24V battery bank
- 1600VA continuous rating with 1300W at 25C and a 3000W peak
- Compact, lightweight SinusMax enclosure for tight installations
- 1.5 metre battery cables included for quick wiring
- VE.Bus port for parallel and three-phase operation and monitoring
- High start-up power for motors, pumps and power tools
- Comprehensive protection and a 5-year warranty
No compatible transducers listed for this product.
No compatible products found.
Key specifications
| Continuous power (VA) | 1600 VA |
| Continuous power (W) | 1300 W at 25C |
| Peak power | 3000 W |
| System voltage | 24 V |
| Output voltage & frequency | 230 VAC, 50 Hz |
| Maximum efficiency | 94% |
Output
| Continuous power at 40°C | 1200 W |
| Continuous power at 65C | 800 W |
| Output AC voltage (adjustable) | 230 VAC plus or minus 2% (adjustable to 240 V) |
| Output frequency (adjustable) | 50 Hz plus or minus 0.1% (adjustable to 60 Hz) |
| Output waveform | Pure sine wave |
Input
| Input voltage range | 19 - 33 V |
General
| Zero-load power | 10 W |
| Zero-load power in AES mode | 8 W |
| Zero-load power in Search mode | 3 W |
| Programmable relay | Yes (AC rating 230 V/4 A; DC rating 4 A up to 35 VDC, 1 A up to 60 VDC) |
| Protections | Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on inverter output, input voltage ripple too high |
| Communication port | VE.Bus (parallel, three-phase, remote monitoring and system integration) |
| Remote on/off | Yes |
| Parallel and three-phase operation | Yes |
Environmental
| Operating temperature range | -40 to +65C |
| Cooling | Fan-assisted |
| Humidity (non-condensing) | Max 95% |
Enclosure
| Material & colour | Aluminium, blue RAL 5012 |
| Battery connection | Screw terminals, 1.5 metre battery cables included |
| AC connection | G-ST18i plug |
| Protection category | IP21 |
| Dimensions (H x W x D) | 375 x 214 x 110 mm |
| Weight | 10 kg |
Standards & Certifications
| Safety | EN 60335-1 |
| EMC | EN 55014-1, EN 55014-2 |
| Automotive Directive | ECE R10-6 |
