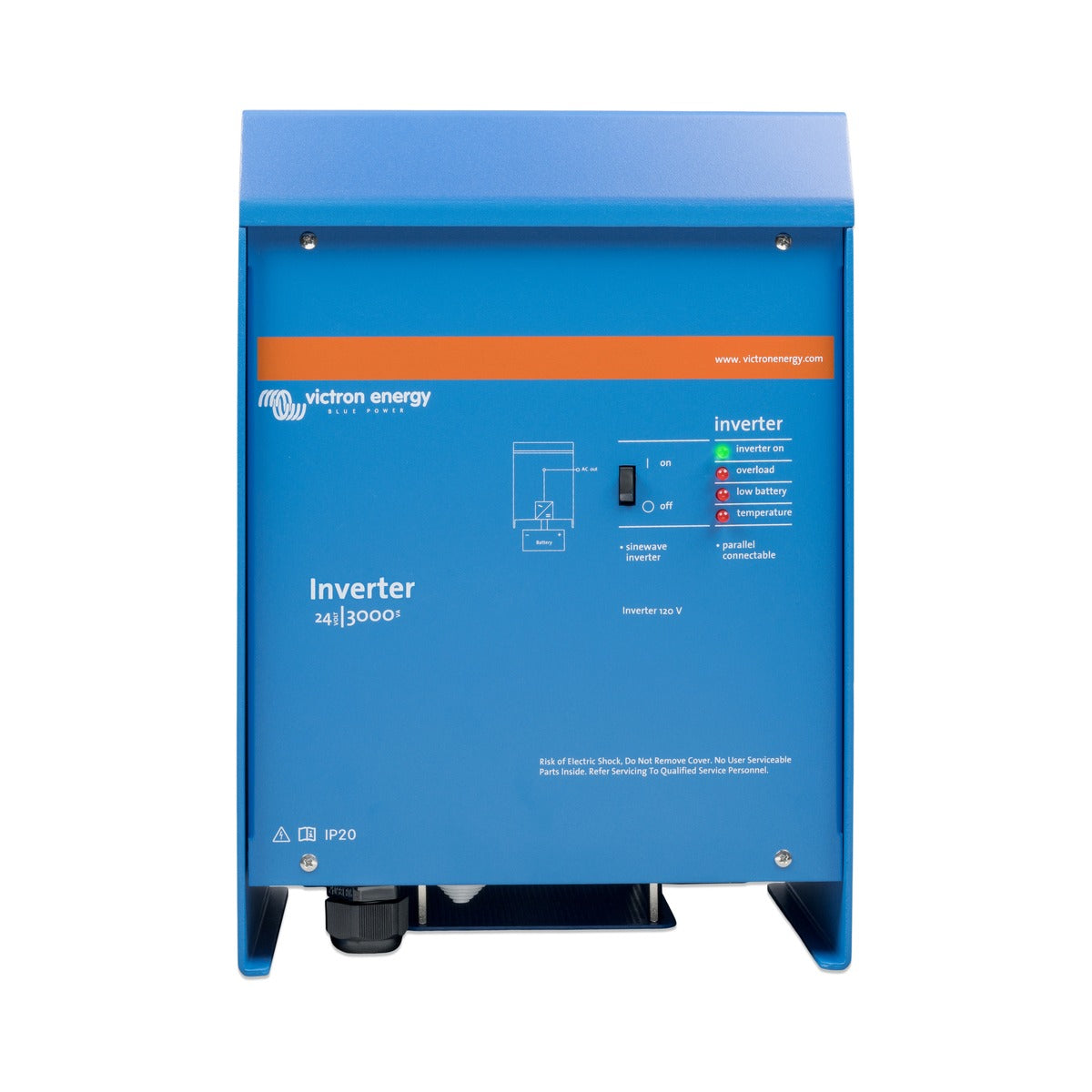

Victron Phoenix Inverter 24/3000 120V (NEMA)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Phoenix Inverter 24/3000 is a professional pure sine wave inverter that converts 24V battery power into clean 120V, 60Hz mains electricity. Its SinusMax hybrid high-frequency design keeps the unit compact and light while supplying a true sine wave to demanding loads such as refrigeration compressors, electric motors and power tools.
Rated at 3000VA with 2400W of continuous output at 25C and a 6000W peak, this 120V model suits North American and 60Hz marine and off-grid systems. The 24V input draws roughly half the current of an equivalent 12V unit, which simplifies cabling on larger battery banks. Very high start-up power handles inductive loads that conventional high-frequency inverters struggle with.
A VE.Bus communication port enables parallel, three-phase and split-phase operation along with remote monitoring through a GX device such as the Cerbo GX. VictronConnect and VEConfigure give full control over output, alarm and relay settings, and a programmable relay can raise alarms or start a generator automatically.
PRODUCT DETAILS
- Pure sine wave 120V, 60Hz output from a 24V battery bank
- 3000VA continuous rating with 2400W at 25C and a 6000W peak
- SinusMax hybrid high-frequency design, compact and lightweight
- 24V input reduces cable current for easier installation
- VE.Bus port for parallel, three-phase and split-phase operation
- Programmable relay for alarms or automatic generator start
- Configurable and monitored via VictronConnect, VEConfigure and GX devices
- Comprehensive protection and a 5-year warranty
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous power (VA) | 3000 VA |
| Continuous power (W) | 2400 W at 25C |
| Peak power | 6000 W |
| System voltage | 24 V |
| Output voltage & frequency | 120 VAC, 60 Hz |
| Maximum efficiency | 94% |
Output
| Continuous power at 40°C | 2200 W |
| Continuous power at 65C | 1700 W |
| Output AC voltage (adjustable) | 120 VAC plus or minus 2% (adjustable to 240 V) |
| Output frequency (adjustable) | 60 Hz plus or minus 0.1% (adjustable) |
| Output waveform | Pure sine wave |
Input
| Input voltage range | 19 - 33 V |
General
| Zero-load power | 20 W |
| Zero-load power in AES mode | 15 W |
| Zero-load power in Search mode | 10 W |
| Programmable relay | Yes (AC rating 120 V/4 A; DC rating 4 A up to 35 VDC, 1 A up to 60 VDC) |
| Protections | Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 120 VAC on inverter output, input voltage ripple too high |
| Communication port | VE.Bus (parallel, three-phase, remote monitoring and system integration) |
| Remote on/off | Yes |
| Parallel and three-phase operation | Yes (parallel, three-phase and split-phase) |
Environmental
| Operating temperature range | -40 to +65C |
| Cooling | Fan-assisted |
| Humidity (non-condensing) | Max 95% |
Enclosure
| Material & colour | Aluminium, blue RAL 5012 |
| Battery connection | 2 + 2 M8 bolts |
| AC connection | Screw terminals |
| Protection category | IP21 |
| Dimensions (H x W x D) | 362 x 258 x 218 mm |
| Weight | 18 kg |
Standards & Certifications
| Safety | EN 60335-1 |
| EMC | EN 55014-1, EN 55014-2 |
| Automotive Directive | ECE R10-4 |
