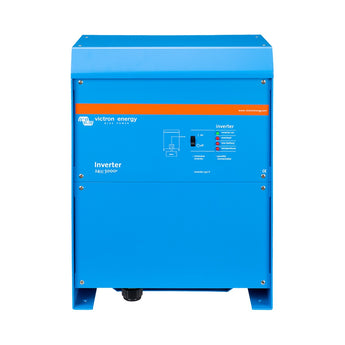

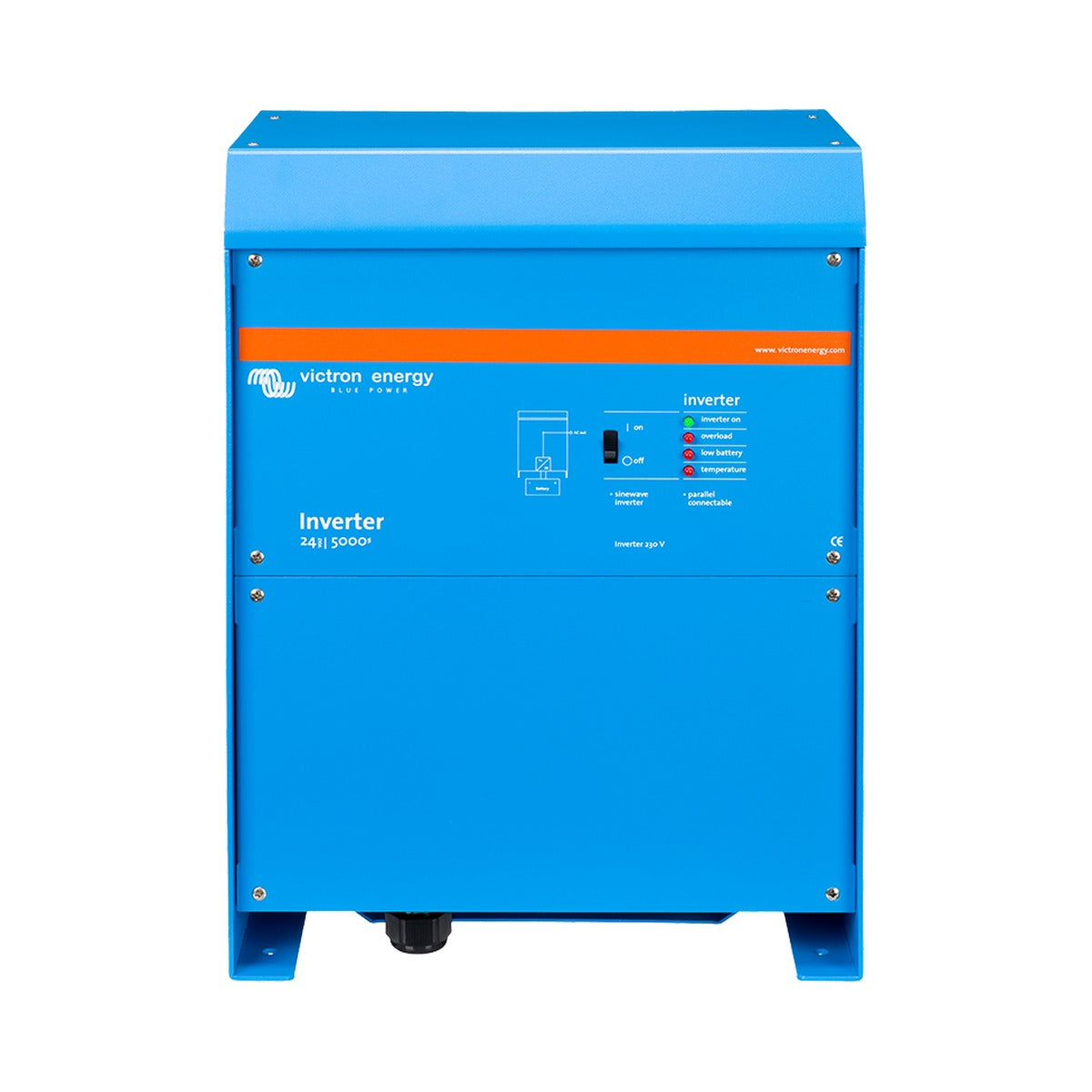

Victron Phoenix Inverter 24/5000 230V VE.Bus
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Phoenix Inverter 24/5000 is a true sine wave inverter that converts a 24V battery bank into clean 230V mains power for the most demanding marine and off-grid installations. Built on Victron's SinusMax hybrid HF technology, it combines high efficiency with the high start-up power needed to run difficult loads such as refrigeration compressors, pumps and electric motors without disruption.
Pure sine wave output makes it safe for sensitive electronics, while the aluminium IP21 chassis and fan-assisted cooling suit the harsh conditions found on boats and in vehicles. A VE.Bus communication port allows the inverter to be configured with VictronConnect or VEConfigure, integrated with a GX device such as the Cerbo GX, and operated in parallel or three-phase configurations of up to six units. Six 24/5000 units, for example, provide 24kW of output power.
AES and Search modes cut standby consumption when little or no load is connected, helping to preserve battery capacity during long periods on the hook or off-grid. A programmable relay and a two-pole remote on/off connector round out the feature set.
PRODUCT DETAILS
- True sine wave 230V output, safe for sensitive electronics
- SinusMax hybrid HF technology with very high start-up power
- 5000VA continuous, 10000W peak power
- VE.Bus port for VictronConnect, VEConfigure and GX integration
- Parallel and three-phase capable, up to six units (24kW)
- AES and Search modes minimise standby consumption
- Programmable relay and remote on/off
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous power (VA) | 5000 VA |
| Continuous power (W) | 4000 W @ 25°C |
| Peak power | 10000 W |
| System voltage | 24 V |
| Output voltage & frequency | 230 VAC, 50 Hz |
| Maximum efficiency | 94% |
Output
| Continuous power at 40°C | 3700 W |
| Continuous power at 65°C | 3000 W |
| Output AC voltage | 230 VAC ±2% (adjustable to 240 V) |
| Output frequency | 50 Hz ±0.1% (adjustable to 60 Hz) |
| Output waveform | Pure sine wave |
Input
| Input voltage range | 19 - 33 V |
General
| Zero-load power | 30 W |
| Zero-load power in AES mode | 25 W |
| Zero-load power in Search mode | 10 W |
| Protections | Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on inverter output, input voltage ripple too high |
| Programmable relay | Yes (AC 230 V / 4 A, DC 4 A up to 35 VDC, 1 A up to 60 VDC) |
| Communication port | VE.Bus (for parallel, three-phase, remote monitoring and system integration) |
| Parallel and three-phase operation | Yes (up to 6 units) |
| Remote on/off | Yes |
Environmental
| Operating temperature range | -40 to +65°C (fan assisted cooling) |
| Humidity (non-condensing) | Max 95% |
Enclosure
| Material & colour | Aluminium, blue RAL 5012 |
| Battery connection | 2+2 M8 bolts |
| 230 V AC connection | Screw terminals |
| Protection category | IP21 |
| Dimensions (H x W x D) | 444 x 328 x 240 mm |
| Weight | 30 kg |
Standards & Certifications
| Safety | EN 60335-1 |
| EMC (emission, immunity) | EN 55014-1, EN 55014-2 |
