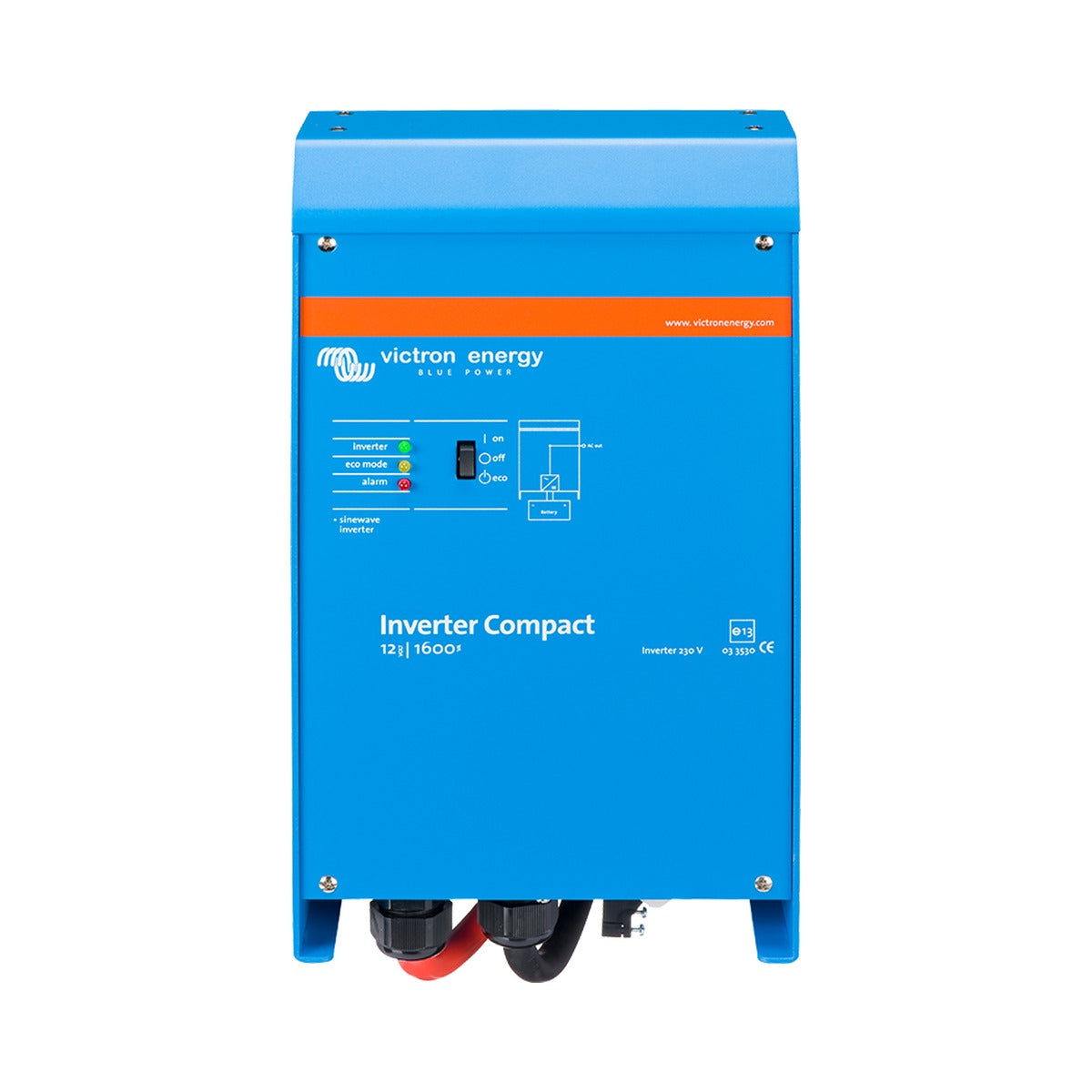

Victron Phoenix Inverter Compact 12/1600 230V
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Phoenix Inverter Compact 12/1600 is a pure sine wave inverter that turns a 12V battery bank into clean 230V mains power in a space-saving package designed for professional duty. Built on Victron's SinusMax hybrid HF technology, it pairs high efficiency with the high start-up power needed to run difficult loads such as small compressors, pumps and motors found on boats and in vehicles.
Pure sine wave output keeps sensitive electronics safe, and the aluminium IP21 chassis with fan-assisted cooling stands up to demanding marine and mobile environments. The Compact format ships with 1.5 metre battery cables already fitted and a G-ST18i AC output plug, simplifying installation in tight spaces.
AES and Search modes reduce standby consumption when little or no load is connected, helping preserve battery capacity off-grid. A VE.Bus communication port supports configuration with VictronConnect or VEConfigure, plus a programmable relay and remote on/off.
PRODUCT DETAILS
- Pure sine wave 230V output, safe for sensitive electronics
- SinusMax hybrid HF technology with high start-up power
- 1600VA continuous, 3000W peak power
- Space-saving Compact chassis with 1.5m battery cables fitted
- AES and Search modes minimise standby consumption
- VE.Bus port, programmable relay and remote on/off
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous power (VA) | 1600 VA |
| Continuous power (W) | 1300 W @ 25°C |
| Peak power | 3000 W |
| System voltage | 12 V |
| Output voltage & frequency | 230 VAC, 50 Hz |
| Maximum efficiency | 92% |
Output
| Continuous power at 40°C | 1200 W |
| Continuous power at 65°C | 800 W |
| Output AC voltage | 230 VAC ±2% (adjustable to 240 V) |
| Output frequency | 50 Hz ±0.1% (adjustable to 60 Hz) |
| Output waveform | Pure sine wave |
Input
| Input voltage range | 9.5 - 17 V |
General
| Zero-load power | 8 W |
| Zero-load power in AES mode | 5 W |
| Zero-load power in Search mode | 2 W |
| Protections | Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on inverter output, input voltage ripple too high |
| Programmable relay | Yes (AC 230 V / 4 A, DC 4 A up to 35 VDC, 1 A up to 60 VDC) |
| Communication port | VE.Bus (remote monitoring and system integration) |
| Remote on/off | Yes |
Environmental
| Operating temperature range | -40 to +65°C (fan assisted cooling) |
| Humidity (non-condensing) | Max 95% |
Enclosure
| Material & colour | Aluminium, blue RAL 5012 |
| Battery connection | Battery cables of 1.5 m included |
| 230 V AC connection | G-ST18i plug |
| Protection category | IP21 |
| Dimensions (H x W x D) | 375 x 214 x 110 mm |
| Weight | 10 kg |
Standards & Certifications
| Safety | EN 60335-1 |
| EMC (emission, immunity) | EN 55014-1, EN 55014-2 |
