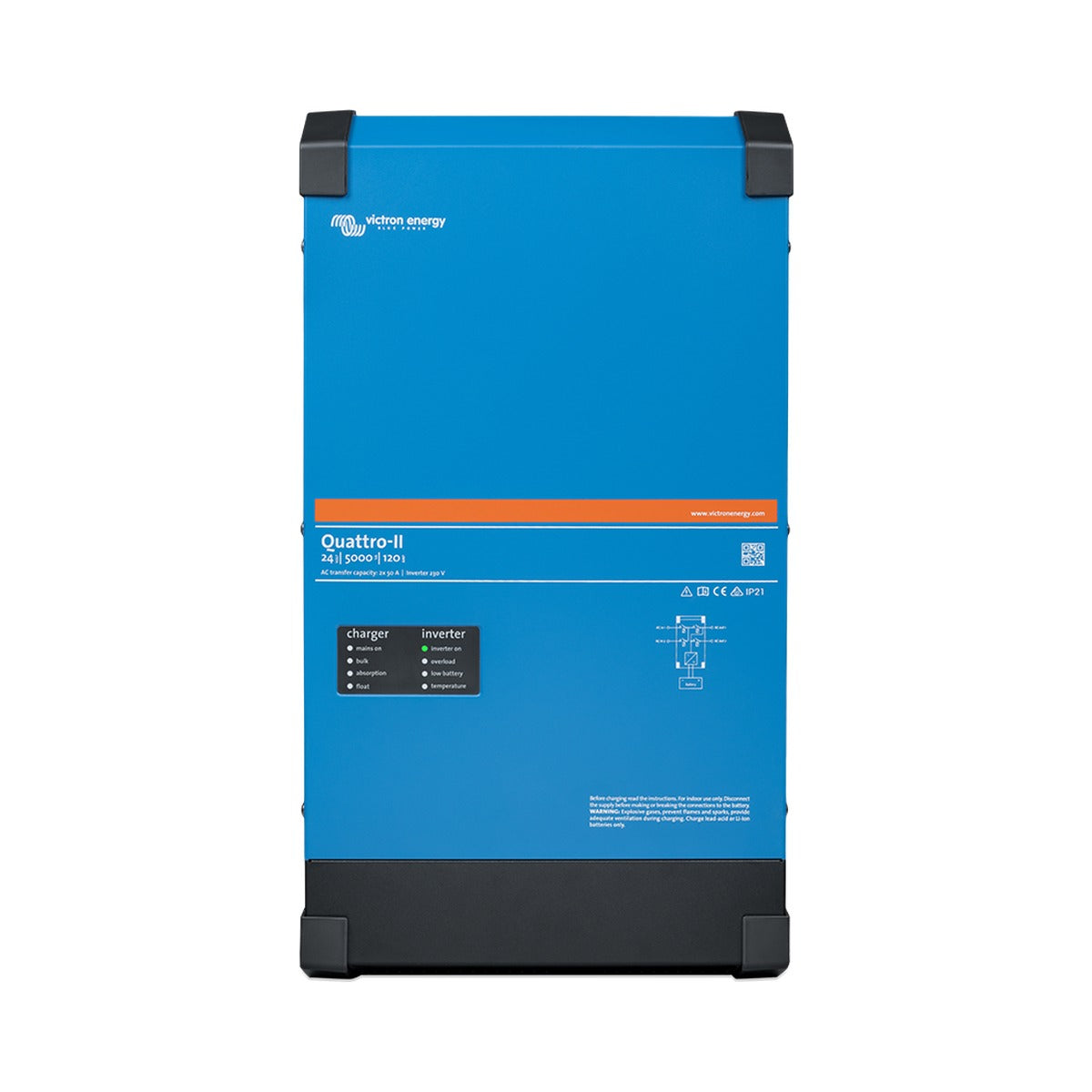

Victron Quattro-II 24/5000/120-50 Inverter/Charger
£1,972.80
/
Tax included.
QUA242505010
The Victron Quattro-II 24/5000/120-50 is a 24 V inverter/charger delivering 5000 VA continuous output (4000 W at 25°C), 9000 W peak and a 120 A charger, with a single AC input, a 50 A transfer switch, ESS support and PowerAssist.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Quattro-II 24/5000/120-50 is a combined sine wave inverter and battery charger for a 24 V system, designed for marine, mobile and off-grid use and for energy storage (ESS). It has a single AC input with a 50 A transfer switch and connects to grid or generator power, taking over the supply instantly if that source fails.
PowerControl limits the current drawn from a generator or the grid so it is not overloaded, while PowerAssist boosts a limited source with battery power during short peaks. An uninterrupted main output changes over in under 20 ms to keep sensitive equipment running, and a second output sheds non-essential loads when required.
The Quattro-II is ESS-ready and supports parallel and three phase operation, so several units can be combined for higher power. Monitoring and configuration are handled over VE.Bus and, with a GX device, through the free VRM portal and app.
PRODUCT DETAILS
- Combined 24 V sine wave inverter and 120 A battery charger in one unit
- 5000 VA continuous output, 4000 W at 25°C and 9000 W peak power
- Single AC input with 50 A integrated transfer switch
- PowerControl and PowerAssist manage and boost limited generator or grid power
- ESS (Energy Storage System) ready for self-consumption and backup
- Uninterrupted changeover in under 20 milliseconds protects sensitive loads
- Parallel and three phase capable via VE.Bus
- VRM remote monitoring and control when paired with a GX device
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| System voltage | 24 V |
| Continuous output power | 5000 VA |
| Continuous output power at 25°C | 4000 W |
| Peak power | 9000 W |
| Maximum charge current | 120 A |
| Transfer switch | 50 A |
AC inputs
| Number of AC inputs | 1 |
| AC input voltage range | 187 to 265 VAC |
| AC input frequency | 45 to 65 Hz (power factor 1) |
| Maximum feed-through current | 50 A |
Inverter
| DC input voltage range | 19 to 33 V |
| Output voltage / frequency | 230 VAC +/-2%, 50 Hz +/-0.1% |
| Cont. output power at 25°C (VA) | 5000 VA |
| Cont. output power at 25°C (W) | 4000 W |
| Cont. output power at 40°C (W) | 3700 W |
| Cont. output power at 65°C (W) | 3000 W |
| Peak power | 9000 W |
| Maximum efficiency | 96 % |
| Maximum apparent feed-in power | 5000 VA |
| Zero load power | 18 W |
| Zero load power in AES mode | 12 W |
| Zero load power in Search mode | 2 W |
Charger
| Charge voltage 'absorption' | 28.8 V |
| Charge voltage 'float' | 27.6 V |
| Storage mode | 26.4 V |
| Maximum charge current | 120 A |
| Battery temperature sensor | Yes |
Connectivity & control
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| General purpose comms port | Yes, 2x |
| Programmable relay | Yes (general alarm, DC under voltage or genset start/stop). AC rating 230 V / 4 A |
| Auxiliary output | Yes (32 A), switches off in inverter mode by default |
| Remote on/off | Yes |
Environmental
| Operating temperature range | -40 to +65 °C (fan assisted cooling) |
| Humidity (non-condensing) | Max. 95 % |
Physical
| Material & colour | Steel, blue RAL 5012 |
| Protection category | IP21 |
| Battery connection | M8 bolts |
| 230 VAC connection | Screw terminals 13 mm² (6 AWG) |
| Weight | 31 kg |
| Dimensions (h x w x d) | 607 x 329 x 149 mm |
Conformance
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1/-6-2/-6-3 |
| Anti-islanding | Per Victron certificates |
No downloads available for this product.
What is the Quattro-II and how does it differ from the standard Quattro?
The Quattro-II is a combined inverter and charger with a single AC input and a 50 A transfer switch, and it adds ESS (Energy Storage System) functionality for self-consumption and backup. It connects to grid or generator power and takes over the supply instantly if that source fails.
What does ESS functionality provide?
ESS lets the Quattro-II work as part of an energy storage system, combining solar or grid charging with battery storage to optimise self-consumption and provide backup power. It is compatible with both solar charge controllers and grid-tie inverters.
What is the difference between PowerControl and PowerAssist?
PowerControl lets you set a maximum grid or generator current so the Quattro-II never overloads the source, using any spare capacity to charge the battery. PowerAssist goes further and tops up a limited source with power from the battery during short peaks, then recharges once the load drops.
How quickly does it switch over during a power failure?
The main output is uninterrupted and takes over the supply in less than 20 milliseconds when grid, shore or generator power is lost, so computers and other sensitive equipment keep running without disruption.
How do I monitor and control the Quattro-II?
Settings are configured with VEConfigure software via an MK3-USB interface. Monitoring and control options include a Cerbo GX or Ekrano GX, the VE.Bus Smart dongle over Bluetooth, a Digital Multi Control panel, and the free VRM portal and VRM app when a GX device is connected to the internet.
