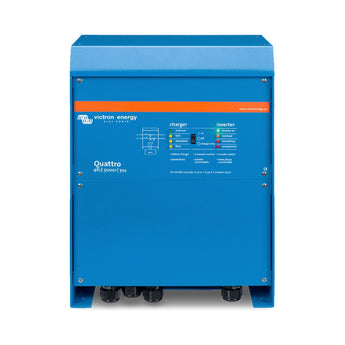

Victron Quattro 48/8000/110-100/100 Inverter/Charger
£2,163.60
/
Tax included.
QUA488024000
The Victron Quattro 48/8000/110-100/100 is a 48 V inverter/charger delivering 8000 VA continuous output (6400 W at 25°C), 16000 W peak and a 110 A charger, with two AC inputs, an integrated transfer switch and PowerAssist.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Quattro 48/8000/110-100/100 is a combined pure sine wave inverter and battery charger designed for a 48 V system, suited to marine, mobile and off-grid installations. It accepts two independent AC inputs, for example a shore supply and a generator, and connects automatically to whichever source is available through its integrated transfer switch. As one of the higher-power models in the Quattro family, it is well matched to larger battery banks and demanding loads where a single, robust inverter/charger is preferred.
Two of Victron's signature functions make the most of a limited supply. PowerControl caps the current drawn from a generator or shore connection so it is never overloaded, while PowerAssist temporarily boosts that limited source with energy from the battery to cover short load peaks. The main output is uninterrupted and changes over in under 20 milliseconds, keeping sensitive equipment running, and a second auxiliary output can shed non-essential loads when no external AC is present.
For larger installations the Quattro can be operated in parallel, in split phase or in three phase configurations, allowing several units to work together. Configuration and monitoring are handled over the VE.Bus port, and when paired with a GX device such as a Cerbo GX you gain free remote monitoring and control through the Victron VRM portal and VRM app.
PRODUCT DETAILS
- Combined 48 V sine wave inverter and 110 A battery charger in one unit
- 8000 VA continuous output, 6400 W at 25°C and 16000 W peak power
- Two AC inputs with integrated transfer switch and automatic source selection
- PowerControl and PowerAssist manage and boost limited generator or shore power
- Uninterrupted changeover in under 20 milliseconds protects sensitive loads
- Auxiliary output (50 A) for loads that should not discharge the battery
- Parallel, split phase and three phase capable via VE.Bus
- VRM remote monitoring and control when paired with a GX device
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| System voltage | 48 V |
| Continuous output power | 8000 VA |
| Continuous output power at 25°C | 6400 W |
| Peak power | 16000 W |
| Maximum charge current | 110 A |
| Transfer switch | 100 A |
AC inputs
| Number of AC inputs | 2 (integrated transfer switch, auto source selection) |
| AC input voltage range | 187 to 250 VAC |
| AC input frequency | 50/60 Hz (Cos φ >0.8) |
| Maximum feed-through current | 2x 100 A |
Inverter
| DC input voltage range | 38 to 66 V |
| Output voltage / frequency | 230 VAC +/-2%, 50 Hz +/-0.1% |
| Cont. output power at 25°C (VA) | 8000 VA |
| Cont. output power at 25°C (W) | 6400 W |
| Cont. output power at 40°C (W) | 5500 W |
| Cont. output power at 65°C (W) | 3600 W |
| Peak power | 16000 W |
| Maximum efficiency | 96 % |
| Maximum continuous output current | 30 A |
| Maximum output fault current | 100 A for 1 s |
| Input current (DC) | 188 A |
| Zero load power | 60 W |
| Zero load power in AES mode | 40 W |
Charger
| Charge voltage 'absorption' | 57.6 V |
| Charge voltage 'float' | 55.2 V |
| Storage mode | 52.8 V |
| Maximum charge current | 110 A |
| Charge current house battery | 110 A (up to 25°C ambient) |
| Charge current starter battery | Not applicable (48 V model) |
| Battery temperature sensor | Yes |
Connectivity & control
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| General purpose comms port | Yes, 2x |
| Programmable relay | Yes (general alarm, DC under voltage or genset start/stop). AC rating 230 V / 4 A |
| Number of programmable relays | 3x |
| Auxiliary output | 50 A (switches off when no external AC source available) |
| Remote on/off | Yes |
Environmental
| Operating temperature range | -20 to +60 °C |
| Humidity (non-condensing) | Max. 95 % |
| Maximum altitude | 2000 m |
Physical
| Material & colour | Aluminium, blue RAL 5012 (pollution degree 2, OVC III) |
| Protection category | IP20 |
| Battery connection | Four M8 bolts (2 plus and 2 minus connections) |
| 230 VAC connection | Bolts M6 |
| Weight | 41 kg |
| Dimensions (h x w x d) | 470 x 350 x 280 mm |
Conformance
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1/-6-2/-6-3 |
| Anti-islanding | Anti-islanding per Victron certificates |
No downloads available for this product.
How many AC inputs does the Quattro have?
It has two AC inputs with an integrated transfer switch. You can connect two independent sources, for example shore power and a generator, and the Quattro automatically connects to whichever source is active. The maximum feed-through current is 2x 100 A.
What is the difference between PowerControl and PowerAssist?
PowerControl lets you set a current limit on each AC input so the Quattro never overloads a generator or shore supply, using any spare capacity to charge the battery. PowerAssist goes further and tops up a limited source with power from the battery during short peaks, then recharges the battery once the load drops.
How quickly does it switch over during a power failure?
The main output is uninterrupted and takes over the supply in less than 20 milliseconds when grid, shore or generator power is lost, so computers and other sensitive equipment keep running without disruption.
Can I run several units together for more power?
Yes. Multiple units can be connected in parallel, and three units can be configured for three phase output. For the largest systems, up to four sets of three 15 kVA units can be paralleled. Configuration is handled over the VE.Bus port.
How do I monitor and control the Quattro?
Local monitoring is available via a Digital Multi Control panel, the VE.Bus Smart dongle over Bluetooth, or a GX device such as a Cerbo GX. When connected to a GX device you also get free remote monitoring and configuration through the Victron VRM portal and VRM app.
