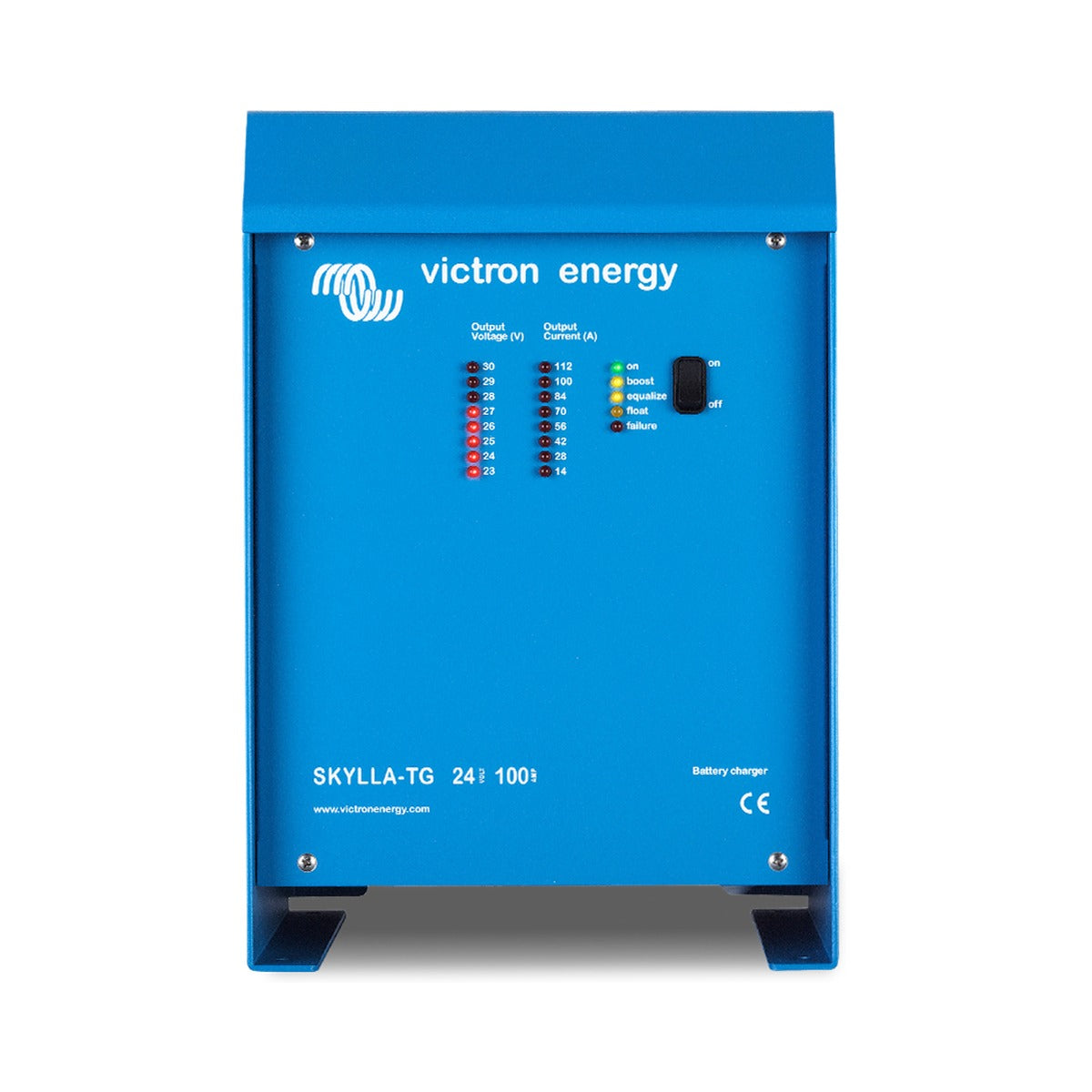

Victron Skylla-TG 24/100 Battery Charger - 3-Phase
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Skylla-TG 24/100 3-Phase is a 24 V, 100 A marine battery charger powered from a 3 x 400 V three-phase mains (320-450 VAC), making it well suited to larger vessels and commercial installations where three-phase shore or generator power is available. The three-phase supply is taken through an integral magnetic circuit breaker.
Charging follows the IUoUo three-step characteristic and is refined by the supplied battery temperature sensor and a voltage sense connection that compensates for cable losses. A separate 4 A second output keeps a starter battery topped up, while the unit can remain connected to the batteries throughout periods of storage.
The charger is housed in a sea-water-resistant aluminium enclosure, is force-cooled and rated IP21. Unlike the single-phase Skylla-TG models, the 3-phase version does not accept a DC supply.
PRODUCT DETAILS
- 24 V charging at up to 100 A from a 3 x 400 V three-phase supply
- Three-phase input via integral magnetic circuit breaker
- Two isolated outputs: full-current house output plus a 4 A starter-battery output
- IUoUo three-step charge characteristic with selectable 4, 8 or 12 hour absorption
- Supplied battery temperature sensor for temperature-compensated charging
- Battery voltage sense to compensate for cable voltage loss up to 2 V
- Can be used as a stabilised DC power supply
- Sea-water-resistant aluminium case, force-cooled, IP21 rated
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Battery voltage | 24 V |
| Charge current | 100 A |
| Number of outputs | 1+1 |
| Maximum efficiency | 85 % |
Charging
| Charge algorithm | IUoUo (three step: bulk, absorption, float) |
| Charge current starter battery | 4 A |
| Charge voltage 'absorption' | 28.5 V |
| Charge voltage 'float' | 26.5 V |
| Recommended battery capacity | 500 - 1000 Ah |
| Temperature compensation | External battery temperature sensor (supplied) |
Input
| AC input voltage range | 320 - 450 VAC (3-phase, 3 x 400 V nominal) |
| DC input voltage range | Not applicable (3-phase AC input only) |
| Input frequency | 45 - 65 Hz |
| Maximum input current setting | 3 x 6 A at 30 V (full output) |
| Power factor | 1 |
Connectivity & control
| Battery temperature sensor | Yes, external sensor supplied |
| Programmable relay | Potential-free alarm contact 60 V / 1 A (1x NO and 1x NC) |
| Battery voltage sense | Yes, compensates up to 2 V cable loss |
| Remote on/off | Yes, via remote panel or switch |
Protection
| Protection | Output short circuit, battery reverse polarity detection, battery voltage too high, temperature too high |
Environmental
| Operating temperature | -40 to +50°C (full output up to 40°C) |
| Cooling | Forced air cooling |
| Humidity | Max 95% (non-condensing) |
Physical
| Colour | Blue (RAL 5012) |
| Material | Aluminium, sea-water resistant, epoxy powder coated |
| Protection category | IP21 |
| Terminals | M8 studs (battery); 3-phase input via magnetic circuit breaker |
| Weight | 23 kg |
| Dimensions (h x w x d) | 515 x 260 x 265 mm |
Conformance
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3 |
