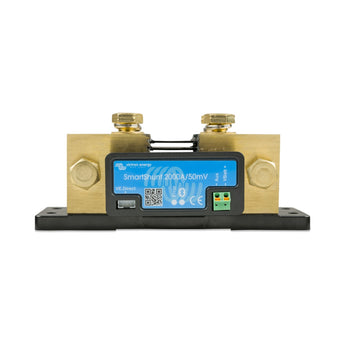

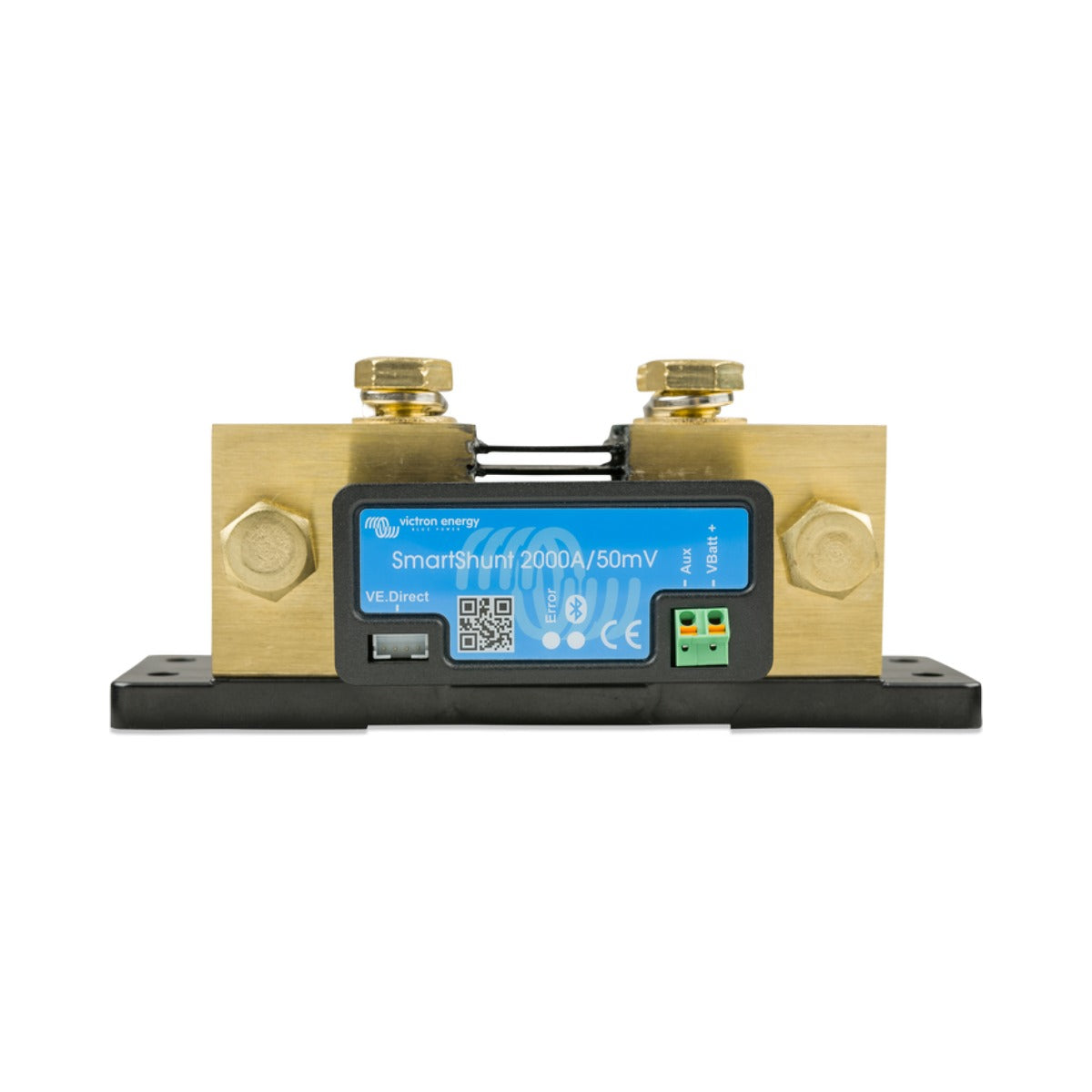

Victron SmartShunt 2000A Battery Monitor
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron SmartShunt 2000 A is an all-in-one battery monitor without a display. Your phone or tablet acts as the screen: it connects over built-in Bluetooth to the VictronConnect app, where you can read state of charge, time to go, voltage, current and full historical data for the battery bank.
It works as a straightforward alternative to a BMV battery monitor for systems where accurate monitoring is needed but less wiring and panel clutter is wanted. The shunt is wired in the negative line of the battery bank and a single positive sense lead completes the connection. An auxiliary input lets you also monitor a second battery voltage, a midpoint, or battery temperature with the optional sensor.
A VE.Direct port allows the SmartShunt to be read by a Victron GX device such as the Cerbo GX, bringing battery data into a wider system display and remote monitoring through the VRM portal. The 2000 A rating suits very large banks and high-power inverter installations.
PRODUCT DETAILS
- 2000 A shunt for very large banks and high-power inverter installations
- Built-in Bluetooth to the free VictronConnect app, which acts as the display
- Reads state of charge, time to go, voltage, current and stored history
- Auxiliary input for a second battery, midpoint or temperature monitoring
- VE.Direct port for connection to a Victron GX device and VRM remote monitoring
- Wide 6.5 to 70 VDC supply range suits 12, 24 and 48 V systems
- Compact wiring with no separate display unit to mount
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Shunt rating | 2000 A |
| Supply voltage range | 6.5 - 70 VDC |
| Bluetooth | Yes, built-in |
| Display | No (VictronConnect app) |
| Protection category (IP) | IP21 |
Electrical
| Current draw | < 1 mA |
| Battery capacity range | 1 - 9999 Ah |
| Auxiliary input | Second battery voltage, midpoint, or temperature |
| Bistable relay | No relay |
Resolution & accuracy
| Current resolution | ± 0.01 A |
| Voltage resolution | ± 0.01 V |
| State of charge resolution | ± 0.1 % |
| Current measurement accuracy | ± 0.4 % |
| Voltage measurement accuracy | ± 0.3 % |
Connectivity
| VE.Direct port | Yes |
Physical
| Dimensions (h×w×d) | 68 x 168 x 100 mm |
| Shunt connection bolts | M10 |
Operating conditions
| Operating temperature range | -40 to +50 °C |
