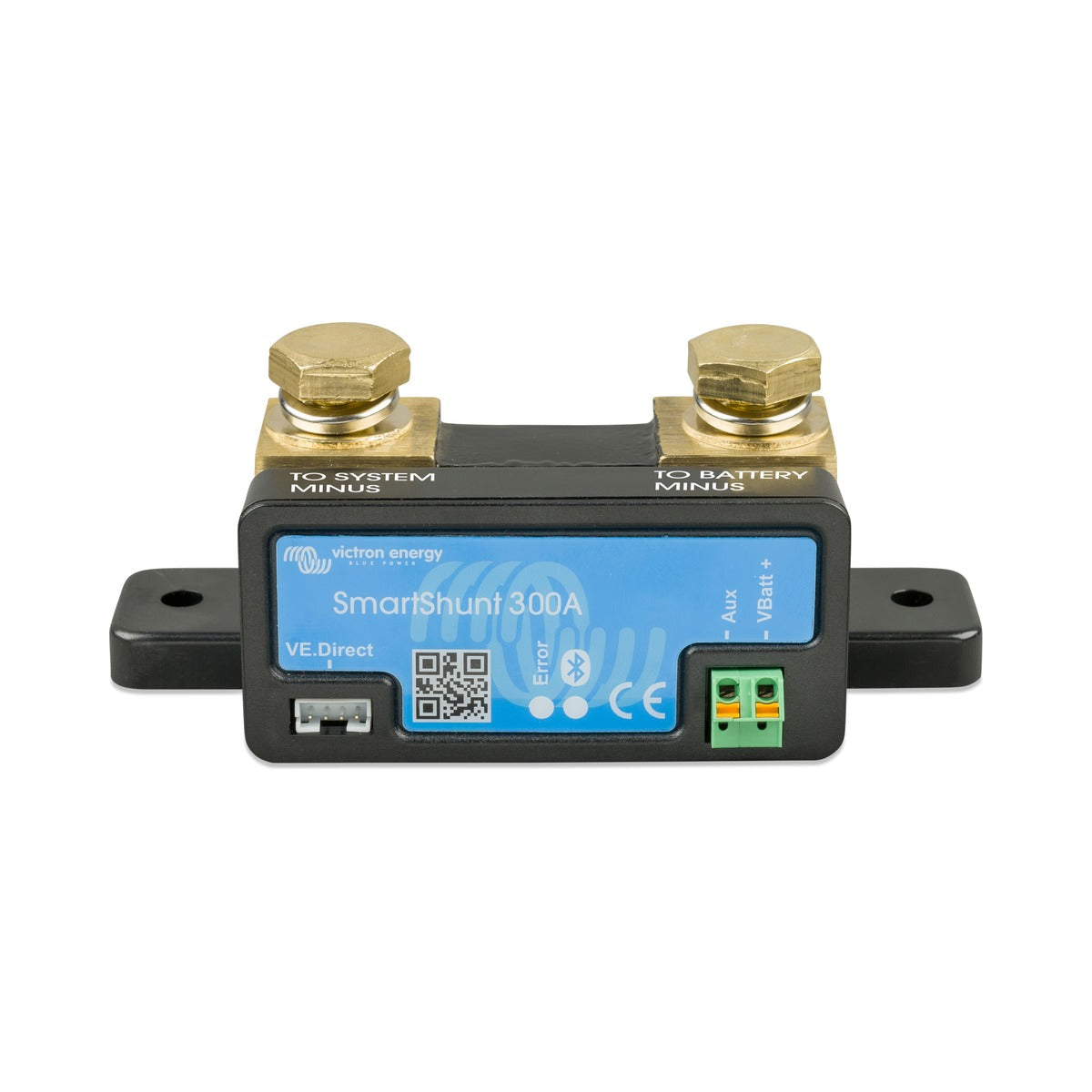

Victron SmartShunt 300A Battery Monitor Victron SmartShunt 300A Battery Monitor
Victron SmartShunt 300A Battery Monitor

Victron

Victron SmartShunt 300A Battery Monitor

£82.80
Tax included.
SHU050130050
App-only Victron battery monitor with built-in Bluetooth and a 300 A shunt. Reads state of charge, time to go, voltage and current in the VictronConnect app, with a VE.Direct port for connection to a GX device. No display or relay.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Victron SmartShunt 300 A is an all-in-one battery monitor without a display. Your phone or tablet acts as the screen: it connects over built-in Bluetooth to the VictronConnect app, where you can read state of charge, time to go, voltage, current and full historical data for the battery bank.

It works as a straightforward alternative to a BMV battery monitor for systems where accurate monitoring is needed but less wiring and panel clutter is wanted. The shunt is wired in the negative line of the battery bank and a single positive sense lead completes the connection. An auxiliary input lets you also monitor a second battery voltage, a midpoint, or battery temperature with the optional sensor.

A VE.Direct port allows the SmartShunt to be read by a Victron GX device such as the Cerbo GX, bringing battery data into a wider system display and remote monitoring through the VRM portal. The 300 A rating suits typical leisure and starter battery banks.

PRODUCT DETAILS

  • 300 A shunt for monitoring leisure and starter battery banks
  • Built-in Bluetooth to the free VictronConnect app, which acts as the display
  • Reads state of charge, time to go, voltage, current and stored history
  • Auxiliary input for a second battery, midpoint or temperature monitoring
  • VE.Direct port for connection to a Victron GX device and VRM remote monitoring
  • Wide 6.5 to 70 VDC supply range suits 12, 24 and 48 V systems
  • Compact wiring with no separate display unit to mount

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Key specifications

Shunt rating300 A
Supply voltage range6.5 - 70 VDC
BluetoothYes, built-in
DisplayNo (VictronConnect app)
Protection category (IP)IP21

Electrical

Current draw< 1 mA
Battery capacity range1 - 9999 Ah
Auxiliary inputSecond battery voltage, midpoint, or temperature
Bistable relayNo relay

Resolution & accuracy

Current resolution± 0.01 A
Voltage resolution± 0.01 V
State of charge resolution± 0.1 %
Current measurement accuracy± 0.4 %
Voltage measurement accuracy± 0.3 %

Connectivity

VE.Direct portYes

Physical

Dimensions (h×w×d)44 x 120 x 44 mm
Shunt connection boltsM8

Operating conditions

Operating temperature range-40 to +50 °C

No videos available for this product.

Does the SmartShunt have a display?
No. The SmartShunt has no built-in display. It connects over Bluetooth to the free VictronConnect app on your phone or tablet, which shows state of charge, time to go, voltage, current and historical data.
How is the SmartShunt different from a BMV battery monitor?
The SmartShunt provides the same monitoring as a BMV but without a panel display, and it has no programmable visual or audible alarm and no programmable relay. Alarms are shown in the VictronConnect app or on a connected GX device instead.
Can the SmartShunt connect to a GX device?
Yes. A VE.Direct port lets the SmartShunt be read by a Victron GX device such as the Cerbo GX, using a VE.Direct cable, so battery data appears on the system display and in the VRM portal.
What can the auxiliary input monitor?
The auxiliary input can monitor the voltage of a second battery, a battery bank midpoint, or battery temperature when the optional temperature sensor is fitted.
What battery voltages does it support?
The SmartShunt has a supply range of 6.5 to 70 VDC and can be configured for battery banks from 1 to 9999 Ah, so it suits 12, 24 and 48 V systems.
