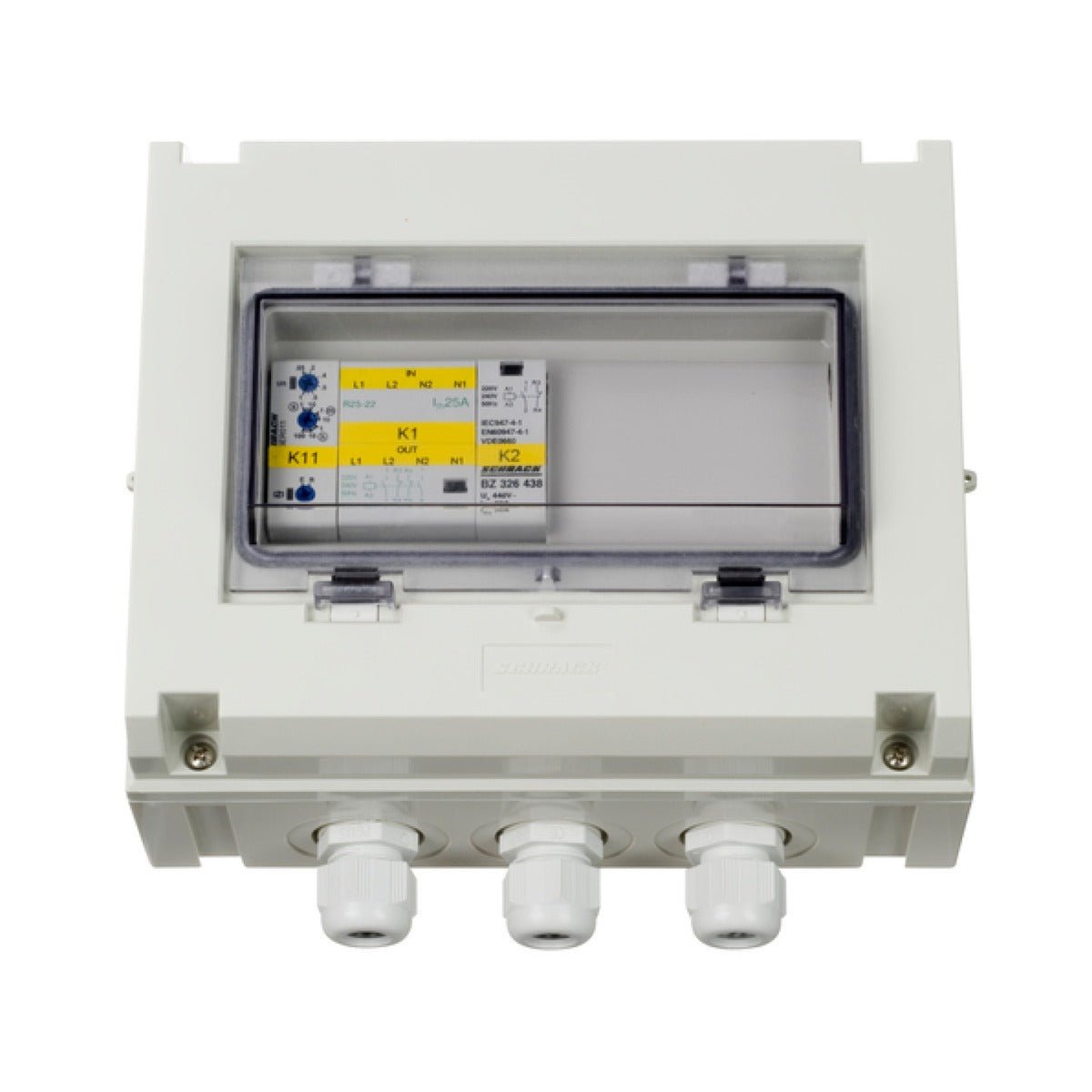

Victron Transfer Switch 10kVA/230V
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron VE Transfer Switch 10kVA automates the changeover between two AC power sources: between a generator and shore power, between an inverter and a generator, or between an inverter and shore power. It has two inputs and one output, and automatically routes whichever source is available to the output.
Input 1 is normally the priority source (a generator or shore supply). If the voltage or frequency on input 1 drifts out of range, the transfer switch changes over to input 2 (typically the inverter). Once the input 1 supply has been continuously stable again, the switch returns to it after a delay of approximately 10 seconds. During the changeover the output briefly loses power, so it is intended for general loads rather than sensitive equipment that cannot tolerate a short interruption.
This model is rated at 10 kVA on a single-phase 200 to 250 V AC supply, making it suitable for larger marine and off-grid installations where a generator or shore feed is combined with an inverter.
PRODUCT DETAILS
- Automatic changeover between two AC sources (shore, generator or inverter)
- Two inputs and one output with automatic source selection
- Switches to the backup source if the priority source is out of range
- Returns to the priority source after about 10 seconds once it is stable
- Rated 10 kVA, single-phase 200 to 250 V AC
- Suited to larger marine and off-grid generator or shore plus inverter systems
