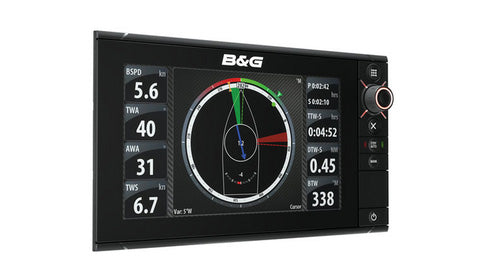

B&G ZEUS2 W9 Multi-function Display with Insight Charts
Description
The B&G Zeus2 W9 is a 9 inch sailing chartplotter supplied with pre-loaded Insight cartography, combining B&G's unique sailing features with a bright, bonded-glass multi-touch display. Tools such as SailSteer, laylines and race timers help the sailor make the most of every leg, while the signature rotary controller keeps the system usable in spray and heavy weather.
Zeus2 integrates over NMEA 2000 and Ethernet with Broadband Radar, AIS, sonar and CZone digital switching, and also supports Navionics and C-MAP cartography on dual micro SD cards. Its low-profile, IPX6 and IPX7 waterproof case is engineered to perform in demanding marine conditions.
PRODUCT DETAILS
- 9 inch multi-touch sailing chartplotter with 1200 nit bonded glass display
- Supplied with pre-loaded Insight cartography
- B&G sailing features including SailSteer, laylines and racing tools
- Backed by the B&G rotary controller for use in spray and heavy weather
- NMEA 2000 networking with Broadband Radar, AIS and digital switching support
- IPX6 and IPX7 waterproof, low-profile design
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Screen size | 9 inch |
| Resolution | 480 x 800 pixels |
| Brightness | 1200 nits |
| Touchscreen | Multi-touch |
Electrical
| Operating voltage | 9 to 31.2 V DC |
| Power consumption | 11.9 W |
| Protection | Reverse polarity and temporary overvoltage to 36 V |
Interfaces
| NMEA 2000 | 1 port (Micro-C male) |
| Ethernet | 1 port |
| Video input | 2 analogue ports (NTSC or PAL) |
| Card slots | Dual micro SD, up to 32 GB each |
Cartography
| Charts | Pre-loaded Insight charts, plus Navionics and C-MAP support |
Environmental
| Casing | PC / ABS |
| Operating temperature | -15 to +55 C |
| Water ingress | IPX6 and IPX7 |
Physical
| Dimensions (W x H) | 279.4 mm x 163.6 mm |
| Weight (excluding mounting hardware) | 1.414 kg |
General
| Conformity | CE, C-Tick |
