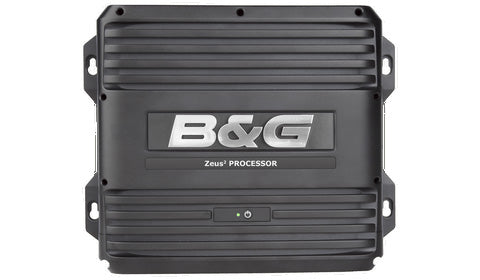

B&G Zeus2 - Glass Helm Processor
Description
The B&G Zeus2 Glass Helm Processor is the black-box engine behind the Zeus2 Glass Helm navigation system, built for large cruising and performance sailboats. It drives up to two ZM-series glass bridge touch monitors and uses twin iMX61 quad-core processors for fast chart redraw and sharp graphics.
Three Ethernet ports (two of them PoE) and an NMEA 2000 connection let it integrate with Broadband Radar, autopilot, sonar, AIS and B&G instruments, while two BNC video inputs and high-resolution video output complete the helm. Insight, Navionics and C-MAP cartography are supported on SD card. The processor is rated IPX2 and is intended for installation in a protected location.
PRODUCT DETAILS
- Black-box processor for the B&G Zeus2 Glass Helm navigation system
- Twin iMX61 quad-core processors for fast chart redraw and graphics
- Drives up to two ZM-series glass bridge touch monitors
- Three Ethernet ports (two PoE) plus NMEA 2000 for full system integration
- Two BNC video inputs and high-resolution video output up to 1920 x 1200
- Supports Insight, Navionics and C-MAP cartography on SD card
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Operating voltage | 9 to 31.2 V DC |
| Power consumption | 45 W |
| Protection | Reverse polarity and temporary over-voltage to 36 V |
Processing
| Processors | Twin iMX61 quad core |
| RAM | 1 GB DDR3 |
| Storage | 4 to 8 GB Flash |
Interfaces
| Ethernet | 3 ports (ports 1 and 2 are PoE, RJ45) |
| NMEA 2000 | 1 port (Micro-C male, LEN = 1) |
| Video input | 2 ports (BNC female, NTSC or PAL) |
| Video output | Up to 1920 x 1200 (supports SVGA to WUXGA) |
| Card slot | Full-size SD, up to 32 GB |
Environmental
| Casing | ABS plastic |
| Operating temperature | -15 to +55 C |
| Water ingress | IPX2 |
Physical
| Dimensions (W x H x D) | 281 mm x 232 mm x 65.5 mm |
| Weight (processor only) | 1060 g |
General
| Conformity | CE, C-Tick, HDMI |
