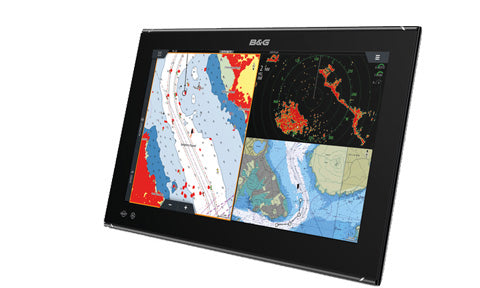

B&G Zeus3 19 GH 19 inch Glass Helm Display
000-14009-001
The B&G Zeus3 Glass Helm 19 is a premium 19-inch glass helm multifunction display designed for blue water sailing, multihulls and superyachts. This large-screen, fast processor display offers touchscreen and remote control and runs B&G's sailing features including SailSteer and RacePanel, alongside radar, charting and sonar. This is the display-only version, supplied with a World Basemap.
Description
Zeus³ GH 19" Display Only:The B&G Zeus³ Glass Helm 19 is designed specifically for blue water sailing, multihulls and superyachts. This premium, super-fast, large-screen, multifunction display sits at the heart of your fully integrated navigation system. The Zeus³ Glass Helm provides easy-to-use touchscreen and remote control options. B&G's unique sailing features including SailSteer and RacePanel all combine with Radar, charting, sonar and much more. World Basemap
PRODUCT DETAILS
- 19 inch ultra-bright Full HD 1920x1080 glass helm display
- Quad core processor runs radar, sonar and charts together
- B&G sailing features: SailSteer, RacePanel, Laylines, SailingTime
- All-weather touchscreen or ZC2 remote control
- Built-in Wi-Fi, Bluetooth and NMEA 2000 networking
- Display only, supplied with World Basemap
- Zeus3 Glass Helm 19 display unit
- Power cable
- Mounting hardware
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 19 inches |
| Display resolution | 1920 x 1080 (Full HD) |
| Screen brightness | 1200 nits |
| Viewing angles | 80° top/bottom, 80° left/right |
Connectivity
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| Ethernet | 3 x 100 Mbit/s RJ45 ports |
| Wi-Fi | Internal 802.11b/g/n |
| Bluetooth | Internal |
| Video | 2 x composite video (BNC), 1 x HDMI-A in (1080p), 1 x HDMI-A out (1080p) |
| Card storage | 1 x micro SD slot, max 32 GB |
Electrical
| Supply voltage | 10 - 32 V DC |
| Power consumption (max) | 50 W ± 4 W |
| Recommended fuse | 7 A @ 12 V DC |
Environment
| Operating temperature | -15°C to +55°C |
| Waterproof rating | IPX6 front when correctly panel mounted (rear not waterproof) |
Physical
| Dimensions W x H x D | 478.1 x 305 x 83 mm (18.82 x 12.01 x 3.27 in) |
| Weight | 4.8 kg (10.5 lb) |
| Mounting | Panel or bracket mount |
| Compass safe distance | 50 cm (20 in) |
General
| Cartography included | World basemap |
| GPS | External GPS required |
| Warranty | 2 years |
No videos available for this product.
Is this the display only or a full system?
This is the Zeus3 Glass Helm 19 display-only version. The matching system pack adds an MI10 card reader, ZG100 GPS antenna and ZC2 remote controller for a complete installation.
Which charts does the Zeus3 Glass Helm 19 support?
It supports C-MAP cartography, Navionics charts and Insight charts from Navico. As a Glass Helm display the chart card reader is provided by the separate MI10 card reader, included in the system pack version.
Can I connect a radar?
Yes. The Zeus3 Glass Helm 19 is compatible with B&G and Simrad radar including HALO Pulse Compression Radar and Broadband 4G Radar, connected over the Ethernet network.
Does it work with NMEA 2000 instruments?
Yes. The Zeus3 Glass Helm 19 connects over NMEA 2000 and NMEA 0183, integrating with B&G autopilot, wind, depth and other compatible sailing instruments.
