Discontinued
This product has been discontinued by B&G and is no longer available to buy.
B&G

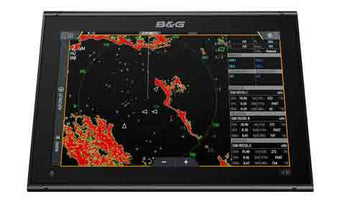

B&G Vulcan 12R 12-Inch Chartplotter Radar Sonar - South Europe C Map Chart
000-14155-001
The B&G Vulcan 12R is a 12-inch multi-touch sailing chartplotter supplied with C-MAP South Europe cartography. It packs the award-winning B&G sailing suite of SailSteer, SailingTime, RacePanel and laylines, is Broadband Radar and ForwardScan ready, and drives a B&G autopilot over NMEA 2000. Built-in Wi-Fi and a 10Hz GPS complete the package.
Description
B&G Vulcan 12 is a 12-inch touch screen chartplotter built specifically for sailors. Packed with sailing specific functions such as B&G’s Award Winning SailSteer™ and Sailing Time, sailors can see all key sailing data at a glance. SailSteer allows sailors to view crucial sailing data on one handy screen or alternatively overlaid on your position on the chartplotter screen. GoFree™ Compatible with built in Wi-Fi functionality. Advanced NMEA2000® networking. Broadband Radar™ and ForwardScan™ ready. Comes with C-Map MAX-N South Europe chart card.
PRODUCT DETAILS
- Easy to use multi-touch display
- Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines
- Broadband Radar and ForwardScan ready
- Integrated Wi-Fi
- Control your B&G Pilot
- Instrument data display
- Built-in high accuracy 10Hz GPS
- Supplied with C-MAP South Europe cartography
- Vulcan 12R display unit
- C-MAP South Europe chart card
- Panel mounting kit (gasket and mounting screws)
- Sun cover
- Power cable
- U-bracket (metal) with mounting screws
- Fuseholder and fuse (3 A, ATC-blade)
- Protective caps (3x)
- Documentation package (installation manual, quick guide, mounting template)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display Size | 12 inches |
| Display Resolution | 1280 x 800 |
| Screen Brightness | 1200 nits |
| Backlight Colour | White |
| Viewing Angles | 80 deg top/bottom, 80 deg left/right |
Connectivity
| Wi-Fi | Internal |
| Bluetooth | Internal |
| Ethernet Ports | 1 x 5 pin yellow connector x 100 Mbits/s (Radar and Sirius (USA only) connectivity only) |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 | Exports NMEA0183 over WiFi |
| SD Card Storage | 2 Micro SD slots, max. 32GB each. >32 GB format to NTFS |
| PC Connectivity | None |
| Video | None |
Cartography
| Charts Supported | Insight, Navionics (Gold, NAV+, Platinum+), C-MAP (MAX N, MAX N+), NV Digital (Raster US Charts) |
| Supplied Cartography | C-MAP South Europe |
GPS
| Type | Internal, 10Hz |
| GPS Receiver Channels | 32 Channels |
| Correction | WAAS, MSAS, EGNOS, GLONASS |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft.) |
| Update Rate | 10 Hz |
| Time to First Fix | Cold start less than 90 seconds exposed to open sky; satellite reacquisition 5 sec |
Sonar
| Sonar Compatibility | Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector |
Autopilot
| Steering Modes | Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail) |
| Manoeuvres / Turn Patterns | Tack / Gybe, Depth contour tracking |
Electrical
| Supply Voltage | 12V (10 - 17V) |
| Power Consumption typical | 24 W |
| Power Consumption max | 30 W |
| Recommended Fuse Rating | 3A |
Environment
| Waterproof Rating | IPX6 & 7 |
| Operating Temperature Range | -15 deg C to +55 deg C (5 F to 131 F) |
| Storage Temperature Range | -20 deg C to +60 deg C (4 F to 140 F) |
Physical
| Dimensions W x H x D | 310 mm x 219 mm x 82.7 mm (12.20" x 8.63" x 3.26") (no bracket) |
| Weight | 2.242 kg (4.94 lbs) |
| Mounting Type | Bracket or Panel |
MFD
| AIS | Receive AIS data over NMEA 2000 only |
| Internal Storage | 90MB |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points |
| Digital Switching | BEP C-Zone, NaviOP |
| Multimedia | via SonicHub2, Fusion Link, *Sirius, **JL Audio (*USA only, **AUST. & NZ only) |
| Weather | Sirius XM WM-3 (USA only), GRIB |
Other
| Interface | Touch screen, ZC1 or ZC2 controller via NMEA 2000 |
| Warranty Period | 2 Years |
No videos available for this product.
Which charts are supplied with this Vulcan 12R?
This version is supplied with C-MAP South Europe cartography, ready to navigate Southern European and Mediterranean waters out of the box. You can also add Navionics, Insight and other C-MAP regions via the two microSD card slots.
What is the difference between the Vulcan R and FS models?
The R models such as this Vulcan 12R are radar-ready chartplotters with a dedicated Ethernet radar port for a B&G radar dome. The FS models focus on a built-in fishfinder and ForwardScan instead. The 12R also has an integrated CHIRP, DownScan and ForwardScan echosounder.
Does the Vulcan 12R support sonar and a transducer?
Yes. The 12R has a built-in CHIRP, DownScan and ForwardScan echosounder using a single 9-pin XSonic connector. Add a transducer to suit your hull. A transducer is not included.
What radar can I connect to the Vulcan 12R?
It connects to B&G Broadband 3G and 4G domes and HALO pulse compression radar over its dedicated Ethernet radar port, with radar overlay on the chart. The radar dome is sold separately on this version.
Does the Vulcan 12R have Wi-Fi and NMEA 2000?
Yes. Built-in Wi-Fi supports GoFree, wireless updates and phone or tablet control, while a single NMEA 2000 port integrates B&G instruments, sensors, AIS and a compatible autopilot.
