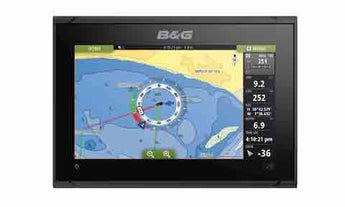

B&G Vulcan 9FS 9-Inch Chartplotter Radar Sonar - South Europe C Map Chart
000-13214-007
The B&G Vulcan 9FS is a 9-inch multi-touch sailing chartplotter supplied with C-MAP South Europe cartography and a built-in CHIRP and DownScan echosounder. It runs the award-winning B&G sailing suite of SailSteer, SailingTime, RacePanel and laylines, is Broadband Radar and ForwardScan ready and drives a B&G autopilot. Built-in Wi-Fi and a 10Hz GPS are included.
Description
B&G Vulcan 9 is a 9-inch touch screen chartplotter built specifically for sailors. Packed with sailing specific functions such as B&G's Award Winning SailSteer™ and Sailing Time, sailors can see all key sailing data at a glance. SailSteer allows sailors to view crucial sailing data on one handy screen or alternatively overlaid on your position on the chartplotter screen. GoFree™ Compatible with built in Wi-Fi functionality. Advanced NMEA2000® networking. Broadband Radar™ and ForwardScan™ ready. Comes with C-Map MAX-N South Europe chart card.
PRODUCT DETAILS
- Easy to use multi-touch display
- Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines
- Broadband Radar and ForwardScan ready
- Integrated Wi-Fi
- Control your B&G Pilot
- Instrument data display
- Built-in high accuracy 10Hz GPS
- Supplied with C-MAP South Europe cartography
- Vulcan 9FS display unit
- C-MAP South Europe chart card
- Panel mounting kit (gasket and mounting screws)
- Sun cover
- Fuse holder and fuse (3A)
- U-bracket with knobs and screws
- Documentation package
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display Size | 9 inches |
| Display Resolution | 800 x 480 |
| Screen Brightness | 1200 nits |
| Backlight Colour | White |
| Viewing Angles | 80 deg top/bottom, 80 deg left/right |
Connectivity
| Wi-Fi | Internal |
| Bluetooth | Internal |
| Ethernet Ports | 1 x 5 pin yellow connector x 100 Mbits/s (Radar and Sirius (USA only) connectivity only) |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 | Exports NMEA0183 over WiFi |
| SD Card Storage | 2 Micro SD slots, max. 32GB each. >32 GB format to NTFS |
| PC Connectivity | None |
| Video | None |
Cartography
| Charts Supported | Insight, Navionics (Gold, NAV+, Platinum+), C-MAP (MAX N, MAX N+), NV Digital (Raster US Charts) |
| Supplied Cartography | C-MAP South Europe |
GPS
| Type | Internal, 10Hz |
| GPS Receiver Channels | 32 Channels |
| Correction | WAAS, MSAS, EGNOS, GLONASS |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft.) |
| Update Rate | 10 Hz |
| Time to First Fix | Cold start less than 90 seconds exposed to open sky; satellite reacquisition 5 sec |
Sonar
| Sonar Compatibility | Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector |
Autopilot
| Steering Modes | Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail) |
| Manoeuvres / Turn Patterns | Tack / Gybe, Depth contour tracking |
Electrical
| Supply Voltage | 12V (10 - 17V) |
| Power Consumption typical | 12 W |
| Power Consumption max | 20 W |
| Recommended Fuse Rating | 3A |
Environment
| Waterproof Rating | IPX6 & 7 |
| Operating Temperature Range | -15 deg C to +55 deg C (5 F to 131 F) |
| Storage Temperature Range | -20 deg C to +60 deg C (4 F to 140 F) |
Physical
| Dimensions W x H x D | 243 mm x 171 mm x 83 mm (9.56" x 6.71" x 3.26") (no bracket) |
| Weight | 1.32 kg (2.9 lbs) |
| Mounting Type | Bracket or Panel |
MFD
| AIS | Receive AIS data over NMEA 2000 only |
| Internal Storage | 90MB |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points |
| Digital Switching | BEP C-Zone, NaviOP |
| Multimedia | via SonicHub2, Fusion Link, *Sirius, **JL Audio (*USA only, **AUST. & NZ only) |
| Weather | Sirius XM WM-3 (USA only), GRIB |
Other
| Interface | Touch screen, ZC1 or ZC2 controller via NMEA 2000 |
| Warranty Period | 2 Years |
No videos available for this product.
Which charts are supplied with this Vulcan 9FS?
This version is supplied with C-MAP South Europe cartography, ready to navigate Southern European and Mediterranean waters out of the box. You can add Navionics, Insight and other C-MAP regions via the microSD card slots.
Does the Vulcan 9FS need a transducer for the sonar?
Yes. The 9FS has a built-in CHIRP and DownScan echosounder but no transducer is supplied. Add a CHIRP, DownScan or ForwardScan transducer via the single 9-pin XSonic connector to suit your hull.
What is the difference between the Vulcan FS and R models?
FS models such as this 9FS have a built-in fishfinder and ForwardScan as standard, while the R models are sold as radar bundles. The 9FS remains radar-ready, so you can add a B&G dome separately.
Can I add radar to the Vulcan 9FS?
Yes. The 9FS connects to B&G Broadband 3G and 4G domes and HALO radar over its dedicated Ethernet radar port. The radar dome is purchased separately on this version.
Does the Vulcan 9FS have Wi-Fi and NMEA 2000?
Yes. Built-in Wi-Fi supports GoFree, wireless updates and phone or tablet control, while a single NMEA 2000 port integrates B&G instruments, sensors, AIS and a compatible autopilot.
