Garmin
Fusion Apollo 8 Channel Marine Amplifier (150-watt RMS per Channel)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

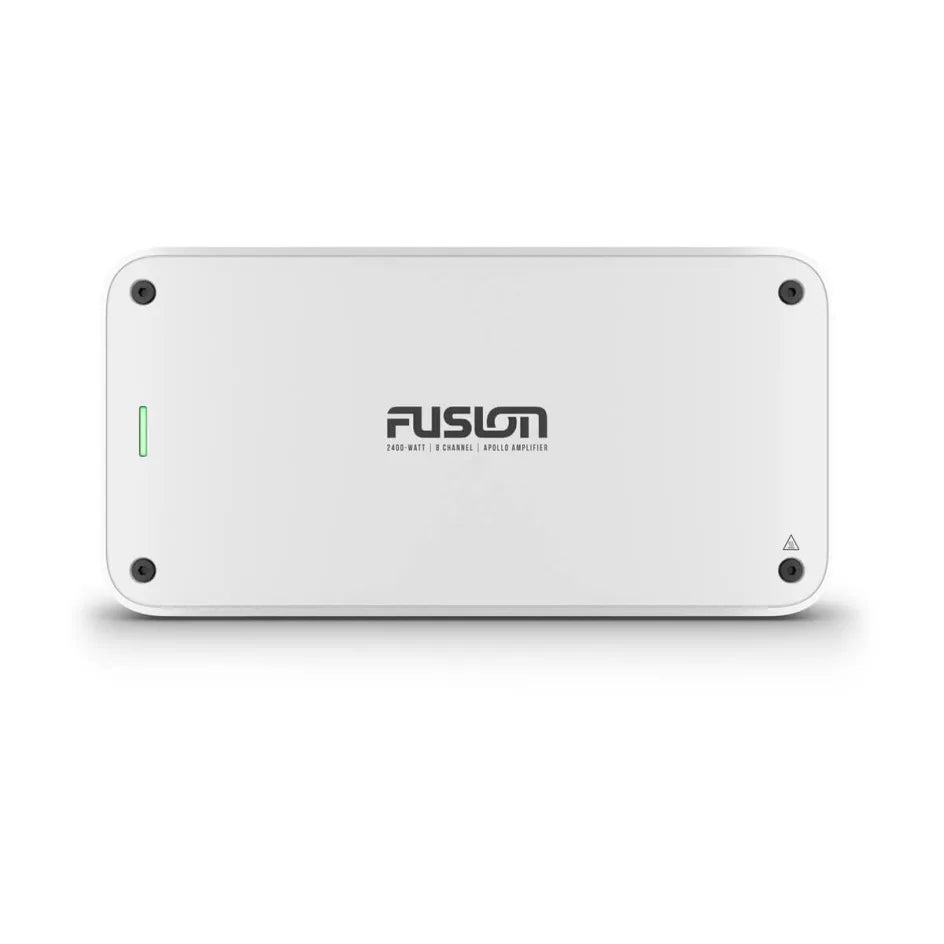

Amplify the moment with the Fusion Apollo 8-channel amplifier, designed specifically for use with your DSP-enabled Fusion marine stereo and Fusion speakers. This efficient Class-D amplifier drives up to eight speakers with 150 W RMS per channel at 4 ohms, and can be bridged to four channels, making it the ideal heart of a large multi-zone marine audio installation.
Designed to integrate with your compatible Fusion stereo system, the Apollo amplifier is quick to install and features a self-resetting electronic fuse, so there is no fuse to replace. A rugged, corrosion-resistant chassis and ignition-protected design make it well suited to the demands of the marine environment.
PRODUCT DETAILS
- Eight-channel Class-D design delivering 150 W RMS per channel at 4 ohms
- Bridgeable to four 580 W RMS channels for extra power or larger speakers
- Ideal for large multi-zone systems, powering the whole boat from one amplifier
- Self-resetting 125 A electronic fuse means there is no fuse to replace
- Purpose-built to pair with DSP-enabled Fusion marine stereos and speakers
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Amplifier
| Channels | 8 |
| Power per channel (RMS) at 4 Ω | 150 W x 8 @ 14.4 V, <1% THD |
| Power per channel (RMS) at 2 Ω | 290 W x 8 @ 14.4 V, <1% THD |
| Power bridged (RMS) at 4 Ω | 580 W x 4 |
| Total power | 2400 W |
| Class | Class-D |
| THD | <1% at rated power |
| Input sensitivity | 1.3 V RMS |
| Input impedance | 22 kΩ |
Electrical
| Supply voltage | 12 V DC (10.8 V - 16 V) |
| Fuse rating | 125 A self-resetting electronic fuse |
Installation
| Dimensions (W x D x H) | 359 x 180 x 45 mm |
| Marine rating | IPX2, Ignition Safety Protected |
General
| Weight | 3.15 kg |
| Warranty | 2 years |
