Description

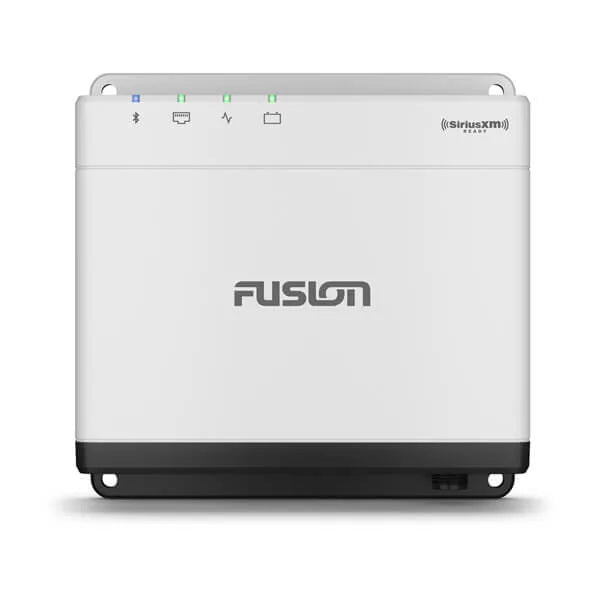

The Fusion Apollo WB670 inherits the audio innovation and technological brilliance of the Apollo RA670 in a compact, space-saving hideaway form factor designed to free up dash space. With no front panel to mount, it installs discreetly and is controlled through a compatible remote, multifunction display or smart device.
Multi-Zone technology gives independent control of up to three zones, each tuned by Fusion Digital Signal Processing. Wi-Fi streaming and Apple AirPlay are available when connected to an Apollo network or router, and PartyBus networking, Bluetooth, USB, AM/FM, DAB+ (module required) and NMEA 2000 connectivity complete a flexible concealed audio system.
PRODUCT DETAILS
- Compact hideaway design frees up valuable dash space
- Multi-Zone technology controls up to three independent zones
- Fusion DSP tunes the sound of every zone for superior clarity
- Wi-Fi and AirPlay streaming when connected to an Apollo network
- PartyBus networking and NMEA 2000 connectivity for MFD control
- Apollo WB670 hideaway stereo
- Wiring harness
- Mounting hardware
- Stealth antenna
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Audio
| Built-in amplifier power | 26 W RMS x 4 (4 Ohm), 43 W RMS x 4 (2 Ohm) |
| Peak power | 280 W |
| Amplifier class | Class-D (2 Ohm stereo-stable) |
| Zones | 3 |
| DSP | Built-in Fusion Digital Signal Processing |
| Pre-amp / RCA outputs | Zone RCA pre-outs plus subwoofer output |
Sources
| Bluetooth | Yes |
| USB | Yes |
| AM/FM tuner | Yes |
| DAB+ | Optional (DAB+ module required) |
| AUX | Yes |
| Wi-Fi / app | Wi-Fi and AirPlay via Apollo network or router, Fusion-Link app |
Connectivity
| NMEA 2000 | Yes (LEN 1, 50 mA) |
| Ethernet (PartyBus) | Yes (wired) |
| Wired remote support | Yes (Apollo ERX400 / NRX remotes) |
Installation
| Mounting | Hideaway / concealed mount |
| Dimensions (H x W x D) | 130 x 130 x 55 mm |
General
| Power supply | 10.8 to 16 V DC |
| Warranty | 2 years |
