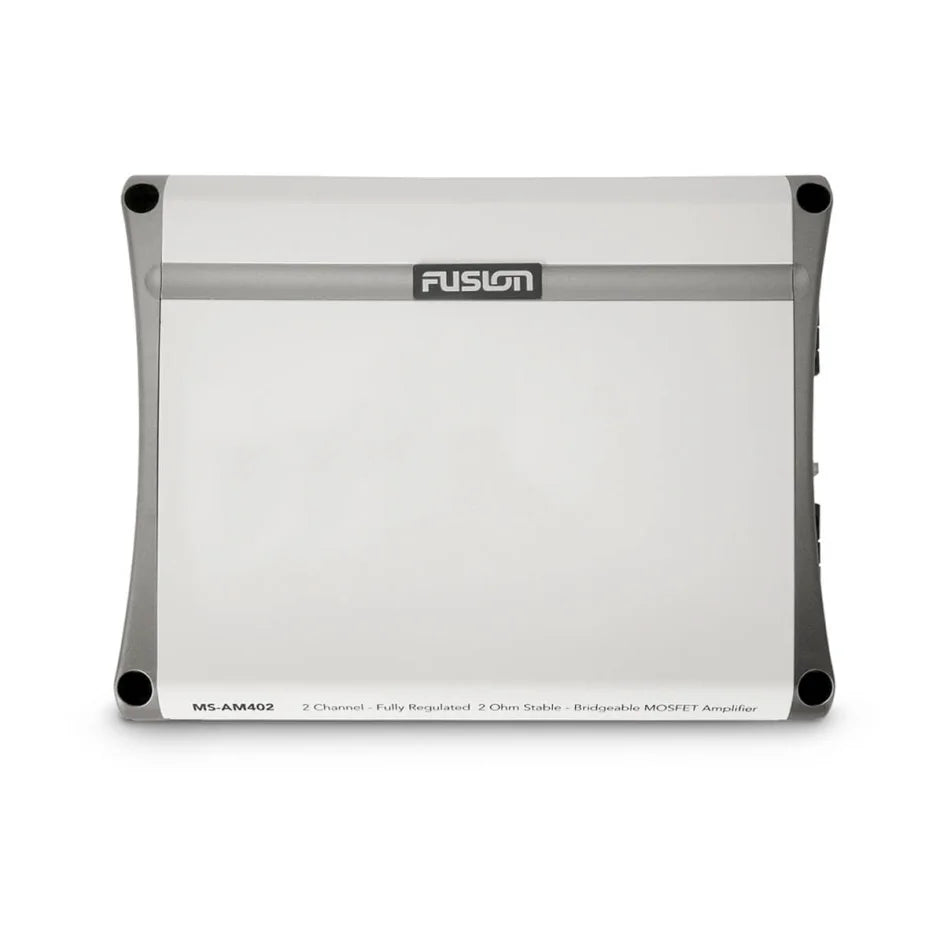

Fusion AM 400-Watt 2 Channel Marine Amplifier
Description
Purpose-built for the marine environment, the Fusion AM Series amplifier is engineered to enhance your on-water listening experience with clean, reliable audio amplification. This compact 2-channel Class-AB amplifier drives a pair of speakers with 65 W RMS per channel at 4 ohms, and can be bridged to a single channel for extra headroom, making it an ideal partner for a Fusion marine stereo and speaker upgrade.
A conformal-coated circuit board and corrosion-resistant construction help the amplifier stand up to the harsh salt, humidity and vibration found on board. User-adjustable input sensitivity and variable high-pass and low-pass crossovers let you tune the system precisely to your speakers and cabin, so your music always sounds its best.
PRODUCT DETAILS
- Class-AB 2-channel design delivering 65 W RMS per channel at 4 ohms, 400 W peak
- Bridgeable to a single 200 W RMS channel for driving a subwoofer or larger speakers
- User-adjustable input sensitivity for a clean match to any Fusion marine stereo
- Variable high-pass and low-pass crossovers for precise tuning to your speakers
- Marinised, conformal-coated construction built to resist salt, humidity and vibration
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Amplifier
| Channels | 2 |
| Power per channel (RMS) at 4 Ω | 65 W x 2 @ 14.4 V, <1% THD |
| Power per channel (RMS) at 2 Ω | 100 W x 2 @ 14.4 V, <1% THD |
| Power bridged (RMS) at 4 Ω | 200 W x 1 |
| Total power (peak) | 400 W |
| Class | Class-AB |
| Frequency response | 5 Hz - 38 kHz (-3 dB @ 4 Ω rated power) |
| THD | <1% at rated power |
| Crossover | High-pass 40 Hz - 600 Hz; Low-pass 40 Hz - 160 Hz |
| Input sensitivity | 0.3 V - 8 V RMS, user adjustable |
| Input impedance | 5 kΩ nominal |
Electrical
| Supply voltage | 12 V DC |
Installation
| Dimensions (W x D x H) | 296 x 229 x 53 mm |
General
| Warranty | 2 years |
