This product has been discontinued by Icom and is no longer available to buy.
Icom

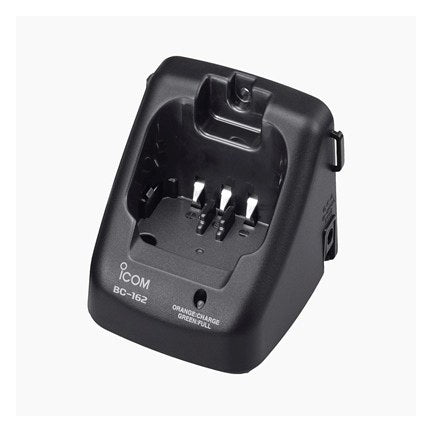

Icom BC-162 UK Rapid Charger for Ni-Cd and Li-ion BP-241/224/252 for IC-M33/M35/GM1600E
Description
The BC-162 is a single desktop rapid charger for Icom marine handhelds, supplied with the BC-145UK mains adaptor. It automatically distinguishes between the BP-241, BP-224 and BP-252 battery packs, so no charger adapter is needed, and handles both Ni-Cd and Li-ion chemistries.
A three colour LED shows charging status at a glance, and CPU controlled protection circuitry restarts charging automatically if a pack is left in the cradle and self-discharges. Used with the IC-M33, IC-M35 and IC-GM1600E handhelds.
PRODUCT DETAILS
- Single desktop rapid charger, no charger adapter required
- Charges Ni-Cd and Li-ion packs: BP-241, BP-224 and BP-252
- Three colour LED: orange charging, green complete, red flashing fault
- CPU controlled protection circuitry restarts charging after self-discharge
- Supplied with the BC-145UK AC adaptor
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Type | Single desktop rapid charger |
| Battery packs supported | BP-241, BP-224 and BP-252 (Ni-Cd and Li-ion) |
| Charger adapter required | No, the charger identifies the pack automatically |
| Status indicator | Three colour LED: orange charging, green complete, red flashing fault |
| Supplied AC adaptor | BC-145UK |
Electrical
| Power supply | 16 V DC |
| Charging control voltage | 8.4 V +/-0.1 V |
| Rapid charging current | 840 mA +/-10% |
| Trickle charging current | 30 mA +/-15 mA |
| Operating temperature range | 0 C to +45 C |
Dimensions and Weight
| Dimensions (W x H x D) | 86 x 75 x 87.5 mm |
