Iris IRIS090 4-in-1 Stainless Bullet Camera, 2.8mm Wide Angle
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

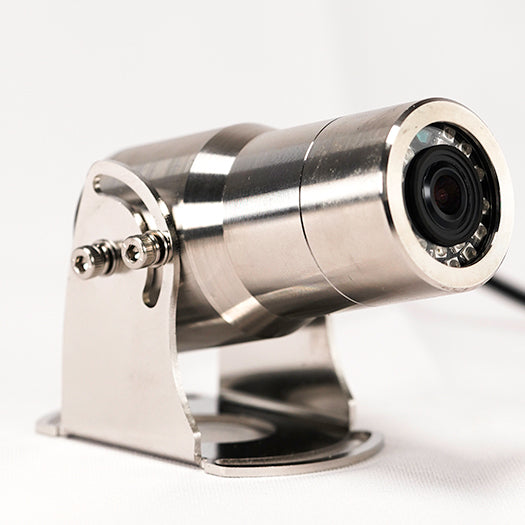

The IRIS090-4in1 is a compact, ultra-rugged bullet camera engineered for marine and vehicle surveillance. Crafted from marine grade 316L stainless steel, it shrugs off corrosion, vibration, impact and extreme weather, while its discreet form factor suits mounting in confined or exposed positions on RIBs, workboats, emergency vessels and off-shore craft.
The camera supports four analogue video formats: standard definition CVBS for legacy systems plus three analogue hi-def formats (AHD, HD-TVI and HD-CVI) offering up to 5MP resolution in real time. CVBS is accepted by any chart plotter with a composite input, while the hi-def formats connect directly to analogue-HD capable displays such as Garmin's 9000 series. The 2.8mm wide-angle lens delivers a broad 120 degree field of view.
With an IP68 rating the IRIS090 is fully protected against dust and submersion to 30m, and built-in 850nm infra-red LEDs provide clear imaging up to 15m in the dark. Video runs over conventional 75 ohm coaxial cable, so the camera can replace existing units without re-cabling, and it draws less than 350mA with the LEDs on.
PRODUCT DETAILS
- Machined from marine grade 316L stainless steel for exceptional strength and corrosion resistance
- 4-in-1 video: standard CVBS plus AHD, HD-TVI and HD-CVI up to 5MP
- 2.8mm wide-angle lens with 120 degree horizontal field of view
- Fully submersible IP68 rating, protected to 30m depth
- Built-in 850nm infra-red illumination up to 15m
- Plug-in in-line joystick for on-screen menu configuration
- Runs over standard 75 ohm coaxial cable, even in AHD formats
- EN60945 EMC rated and NDAA compliant, very low power draw
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Camera/Imaging
| Sensor | 1/2.8" Sony STARVIS CMOS |
| Resolution | HD formats up to 2560 x 1920 (5MP) / 1920 x 1080P @ 30/25fps |
| Minimum Illumination | 0.01 lux colour / 0 lux mono (IR on) |
Lens
| Lens | 2.8mm |
| Horizontal Field of View | 120 degrees |
Video Output
| Video Format | 4-in-1: CVBS (PAL/NTSC) plus AHD, HD-TVI, HD-CVI |
Illumination (IR)
| Infra-Red | Built-in 850nm IR LEDs, up to 15m range |
Power
| Power | 12VDC plus/minus 10%, less than 350mA (LEDs on) |
Connectivity
| Video Connection | Runs over 75 ohm coaxial cable (RG59, RG6, URM70) |
Environmental
| Environmental Rating | IP68 (EN60529), submersible to 30m |
| Operating Temperature | -10 to +60 degrees C |
| EMC / Safety | EN60945 sections 9 and 10; NDAA compliant |
Physical
| Material | 316L marine grade stainless steel |
| Dimensions | 39mm diameter x 109mm length |
| Weight | 0.65kg |
Compatibility
| MFD Compatibility | All MFDs with composite input (CVBS); analogue-HD MFDs such as Garmin 9000 series (max 2MP) |
