This product has been discontinued by IRIS and is no longer available to buy.
IRIS

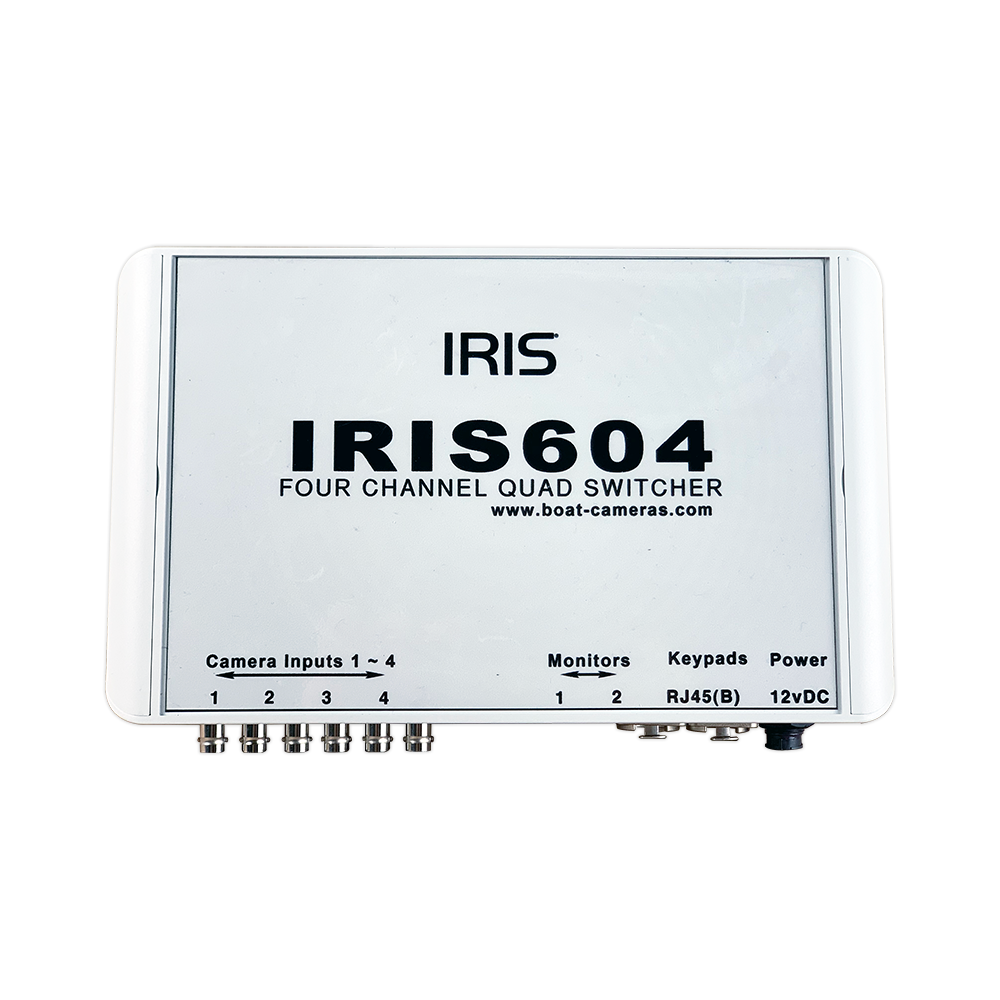

Iris IRIS604 4-Channel Analogue Quad Switcher with Keypad
Description
The IRIS604 is a four-input quad switcher built for on board situational awareness, ideal for keeping an eye on every angle of your vessel at once while docking. The rugged, moisture-resistant control box installs out of sight and connects to the supplied IRIS540 keypad over a single shielded CAT5 cable, so there are no unsightly cables at the helm.
With four camera inputs and two composite outputs, the IRIS604 can show a single camera, all four in a quad formation, split screen or picture-in-picture, and images can even be frozen on screen for closer inspection. It supports standard analogue (CVBS) cameras and is compatible with any chart plotter that has a composite video input.
A second keypad port lets you add an additional IRIS540 keypad to control the switcher from a second position. An HD-TVI variant with a single HDMI digital output is also available for high-definition camera systems.
PRODUCT DETAILS
- Four analogue (CVBS) camera inputs with two composite video outputs
- Quad view, single camera, split screen and picture-in-picture display modes
- On-screen image freeze for detailed analysis
- Supplied with one waterproof IRIS540 keypad (IP66, UV stabilised)
- Keypad connects over a single shielded CAT5 cable with RJ45 field connector
- Second keypad port for control from an additional position
- Rugged moisture-resistant control box installs out of sight
- Compatible with chart plotters featuring a composite video input
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Video
| Camera Inputs | 4 x Analogue Composite (CVBS) |
| Video Outputs | 2 x Composite |
| Display Modes | Single, Quad, Split Screen, Picture-in-Picture, Freeze |
Connectivity
| Keypad Ports | 2 (1 x IRIS540 keypad supplied) |
| Keypad Cabling | Shielded CAT5 with RJ45 field connector |
Physical
| Dimensions | 330 x 285 x 150 mm (packaged) |
