IRIS-s395 Dual Payload Thermal Camera IRIS-s395 Dual Payload Thermal Camera

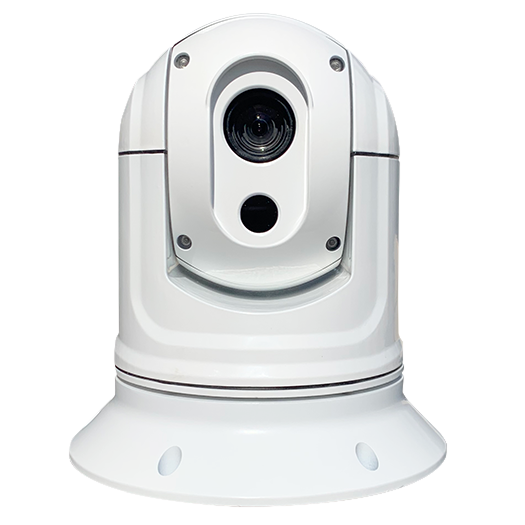

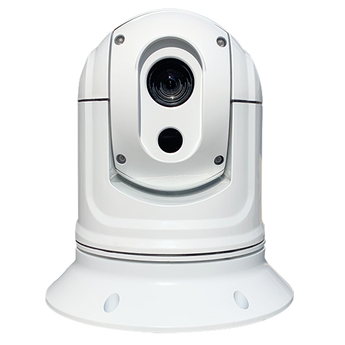

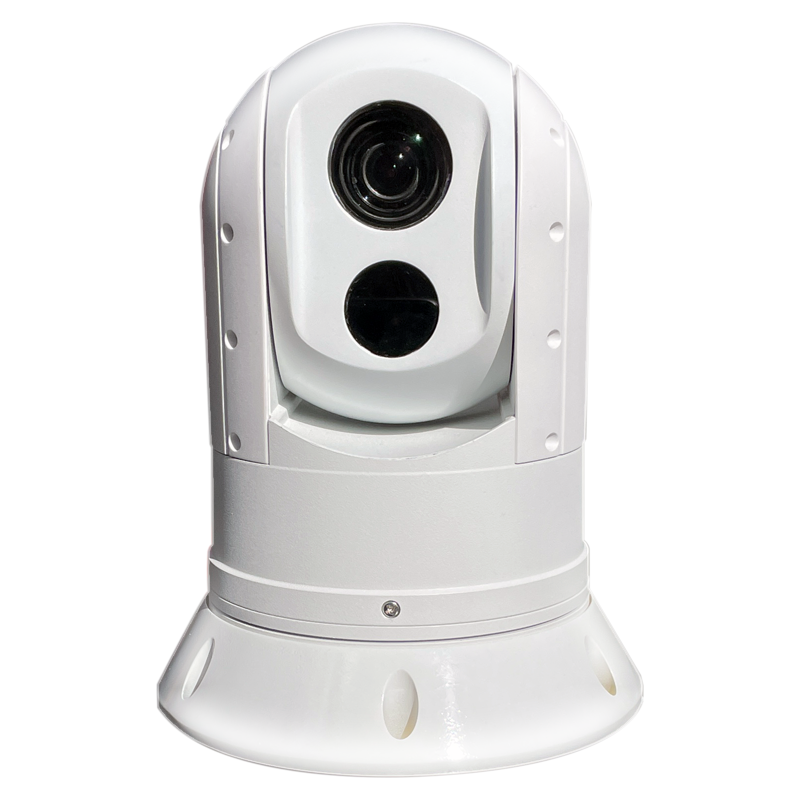

Iris ATOM A395 dual-payload thermal and day IP PTZ camera, white Iris ATOM A395 dual-payload thermal and day IP PTZ camera, white
IRIS-s395 Dual Payload Thermal Camera
Iris ATOM A395 dual-payload thermal and day IP PTZ camera, white

IRIS

Iris ATOM A395 Dual-Payload Thermal & Day IP PTZ Camera, White

£5,154.00
Tax included.
00108-000
The ATOM A395 is a compact dual-payload marine PTZ camera combining an industry-leading 640 x 512 thermal core with a 2MP low-light HD visible camera and 20x optical zoom. This White variant streams over IP, is ONVIF and NDAA compliant, and stands only around 206mm tall. Each sensor has its own IP address for independent viewing.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The ATOM A395 is a low-cost dual-payload night-vision PTZ camera from the Iris ATOM range, pairing an industry-leading 640 x 512 thermal imaging core, with a 12 micron pixel pitch, with a 2MP high-definition visible-spectrum camera that offers excellent low-light performance and 20x optical zoom. Standing only around 206mm tall, it blends into the vessel and is an ideal night-vision solution for RIBs, centre consoles and sports-fishing boats.

Both sensors are housed in a robust, compact waterproof case and each has its own IP address, so the thermal and visible cameras can be configured, controlled and switched independently and viewed simultaneously. The cameras integrate with many leading marine chart plotters through the Iris CMAC range of camera management interfaces, and an RS485 serial connection adds Pelco-D control from joystick devices and NVRs.

This version is finished in white and is available with side-entry or base-entry cabling. The A395 is both ONVIF and NDAA compliant, making it suitable for government, military and other security-sensitive applications as well as everyday marine situational awareness.

PRODUCT DETAILS

  • Dual-payload camera: thermal imaging plus low-light HD visible spectrum
  • Industry-leading 640 x 512 thermal core, 12 micron pixel pitch, 4x continuous digital zoom
  • 2MP 1920 x 1080P visible camera (Sony IMX327) with 20x optical zoom
  • Separate IP address per sensor for simultaneous independent viewing
  • ONVIF and NDAA compliant, compatible with Iris CMAC interfaces
  • RS485 / Pelco-D control via joystick devices and NVRs
  • Compact, lightweight waterproof case rated IP66, stands only around 206mm tall
  • White finish, available with side-entry or base-entry cabling

No compatible transducers listed for this product.

Iris IRIS595 Waterproof PTZ Control Joystick

Iris IRIS595 Waterproof PTZ Control Joystick

Iris IRIS-TE01 Waterproof Touch / Rotary Encoder Controller, 316L Stainless

Iris IRIS-TE01 Waterproof Touch / Rotary Encoder Controller, 316L Stainless

Iris CMAC-NVR 16-Channel IP Network Recorder, 1TB, Recorder Only

Iris CMAC-NVR 16-Channel IP Network Recorder, 1TB, Recorder Only

Thermal Camera

Thermal Resolution640 x 512
Thermal Lens19mm
Pixel Pitch12 micron
Refresh Rate25/30 Hz
Digital Zoom4x smooth continuous
Colour PalettesWhite Hot / Black Hot / Fulgurite / Iron Red / Hot Iron / Medical / Arctic / Rainbow 1 / Rainbow 2 / Tint
Image EnhancementICE Image Contrast Enhancement, 7 levels

Visible Camera

Sensor1/2.8" Sony CMOS IMX327 high-performance low illumination
Resolution1920 x 1080 at 25/30 fps
Lens / ZoomF = 4.7mm to 94mm / F1.6 to F3.5 / 20x optical zoom

Video Output

CompressionH.264 / H.265
StreamsDual stream; main (1080P/960P/720P), sub (D1/VGA/CIF)

Connectivity

Network ProtocolONVIF Profile S
Serial ControlRS485 / Pelco-D
IP AddressingSeparate IP address per sensor (dual)

Power

Power Requirements+12VDC / 750mA / 8.4W

Environmental

Ingress ProtectionIP66 (EN60529)
ConnectorPush-lock quick connector, IP66

Physical

Dimensions160mm diameter x 206mm (H)
Weight2 kg
FinishWhite
Cable OptionsSide entry / base entry

Compliance

Certification / NDAACGEA 6A003B4B / NDAA compliant (check regional export laws)

No videos available for this product.

What is a dual-payload camera?
A dual-payload camera carries two sensors in one housing. The A395 combines an industry-leading 640 x 512 thermal imaging core with a 2MP low-light HD visible-spectrum camera. Each sensor has its own IP address, so you can configure, control and view the thermal and visible images independently and at the same time.
How does the A395 differ from the A295?
Both cameras share the same compact dual-payload housing, 2MP visible camera and control options. The difference is the thermal core: the A395 uses a higher-resolution 640 x 512 sensor with a 12 micron pixel pitch, while the A295 uses a 384 x 288 sensor. The A395 therefore offers more thermal detail at longer range.
Is the A395 compatible with marine chart plotters?
Yes. The cameras are compatible with many leading marine chart plotters through the Iris CMAC range of camera management interfaces. They are also ONVIF Profile S compliant for network displays and recorders, and add RS485 Pelco-D control for joysticks and NVRs.
Is the camera NDAA compliant?
Yes. The A395 is both ONVIF and NDAA compliant, so it can be used for government, military and other security-sensitive applications. Always check regional export laws, as the thermal core carries a CGEA rating.
