This product has been discontinued by Lowrance and is no longer available to buy.
Lowrance

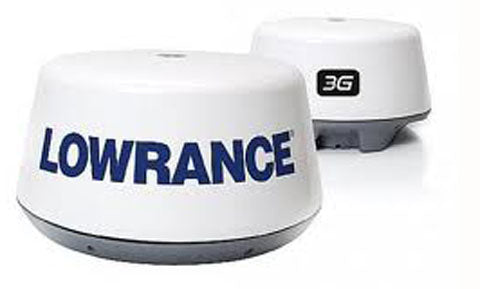

Lowrance 3G Broadband Radar Kit
Description
Superseded by the HALO20 and HALO20+ pulse-compression radars (December 2019). See the current HALO radar range.
The Lowrance Broadband 3G Radar was a compact radome for HDS displays, using Frequency Modulated Continuous Wave (FMCW) technology for excellent short-range target separation and clear, low-clutter imaging with around 30 percent more range than standard broadband radar. With effectively zero radiation hazard it suited fishing, cruising and sail boats where the dome is mounted close to people on board.
The kit shipped as a complete radar package with a 10 m scanner cable, an RI10 interface box with NMEA 2000 connectivity and an Ethernet adapter cable. It has now been replaced by the solid-state HALO20 and HALO20+ domes.
PRODUCT DETAILS
- Broadband FMCW dome radar for HDS (discontinued, superseded by HALO20)
- Up to 24 nautical mile range
- Superior short-range target detection and separation
- Radiation safe with very low transmit power
- Connects via RI10/RI11 interface box with NMEA 2000
- Supplied with 10 m scanner cable, RI10 interface box and ethernet adapter cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Radar type | Broadband 3G FMCW dome radar (discontinued, superseded by HALO20) |
| Band | X-band |
| Technology | FMCW (Frequency Modulated Continuous Wave), radiation safe |
Performance
| Maximum range | 24 nm |
| Transmitter power output | 165 mW (0.165 W) typical |
Connectivity
| Interface | RI10/RI11 radar interface box, NMEA 2000 |
Physical
| Dimensions (Dia x H) | 488.6 mm dia x 280 mm H (19.24 x 11.02 in) |
