Lowrance, Simrad DrivePilot Autopilot Hydraulic Pack Lowrance, Simrad DrivePilot Autopilot Hydraulic Pack
Lowrance, Simrad DrivePilot Autopilot Hydraulic Pack
Discontinued

This product has been discontinued by Simrad and is no longer available to buy.

Not sure what replaces it? Talk to us.

Contact HME

or call us on +442380455129

Simrad

Lowrance, Simrad DrivePilot Autopilot Hydraulic Pack

000-11750-001

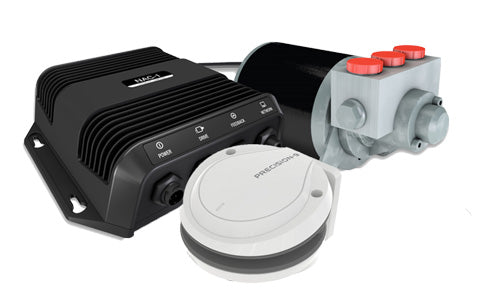

A complete DrivePilot hydraulic autopilot pack for hydraulic-steered boats, comprising a Precision-9 heading sensor, NAC-1 autopilot computer, PUMP-1 (0.8 L) reversible hydraulic pump, a Standby/Auto button and Micro-C network components. Virtual Rudder Feedback simplifies installation, with control from a compatible Simrad display.

Description

The DrivePilot Hydraulic Pack contains everything needed to add an autopilot to a hydraulic-steered boat controlled from a Simrad multifunction display. It brings together the Precision-9 heading sensor, the NAC-1 autopilot computer and the PUMP-1 0.8-litre reversible hydraulic pump, along with a dash-mount Standby/Auto button and the Micro-C network components needed to wire the system.

The NAC-1 computer is designed for boats up to 9 metres (30 ft) and uses Simrad Virtual Rudder Feedback, eliminating the need for a separate rudder feedback unit on many installations. With everything supplied as a matched kit, the pack offers a straightforward route to hands-free steering, automatic heading hold and route following from a compatible Simrad display over NMEA 2000.

PRODUCT DETAILS

  • Complete hydraulic DrivePilot autopilot pack for hydraulic-steered boats
  • Includes Precision-9 compass, NAC-1 computer and PUMP-1 (0.8 L) hydraulic pump
  • Dash-mount Standby/Auto button for one-touch engagement
  • Virtual Rudder Feedback simplifies installation
  • Controlled from a compatible Simrad multifunction display
  • NMEA 2000 (Micro-C) network components included

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Pack contentsPrecision-9 heading sensor, NAC-1 autopilot computer, PUMP-1 (0.8 L) reversible hydraulic pump, Standby/Auto button, Micro-C network components
Recommended boat lengthUp to 9 m (30 ft)
Rudder feedbackVirtual Rudder Feedback (VRF)
Warranty2 years

Mechanical

PumpPUMP-1, 0.8 L reversible hydraulic pump

Electrical

Computer supply voltage9 - 16 V DC (NAC-1)
Computer drive output12 V DC reversible motor, 8 A continuous / 16 A peak (NAC-1)

Connectivity

NetworkNMEA 2000 (Micro-C)

No downloads available for this product.

What is in the DrivePilot Hydraulic Pack?
It contains a Precision-9 heading sensor, a NAC-1 autopilot computer, a PUMP-1 (0.8 L) reversible hydraulic pump, a Standby/Auto button and Micro-C network components.
How is the DrivePilot system controlled?
The system is controlled from a compatible Simrad multifunction display, with a dash-mount Standby/Auto button for one-touch engagement.
Does the pack need a rudder feedback unit?
No. The NAC-1 computer uses Simrad Virtual Rudder Feedback, so a separate rudder feedback unit is not required on most installations.
What size boat is this pack suitable for?
The NAC-1 computer at the heart of the pack is recommended for boats up to 9 metres (30 ft).
