This product has been discontinued by Victron and is no longer available to buy.
Victron

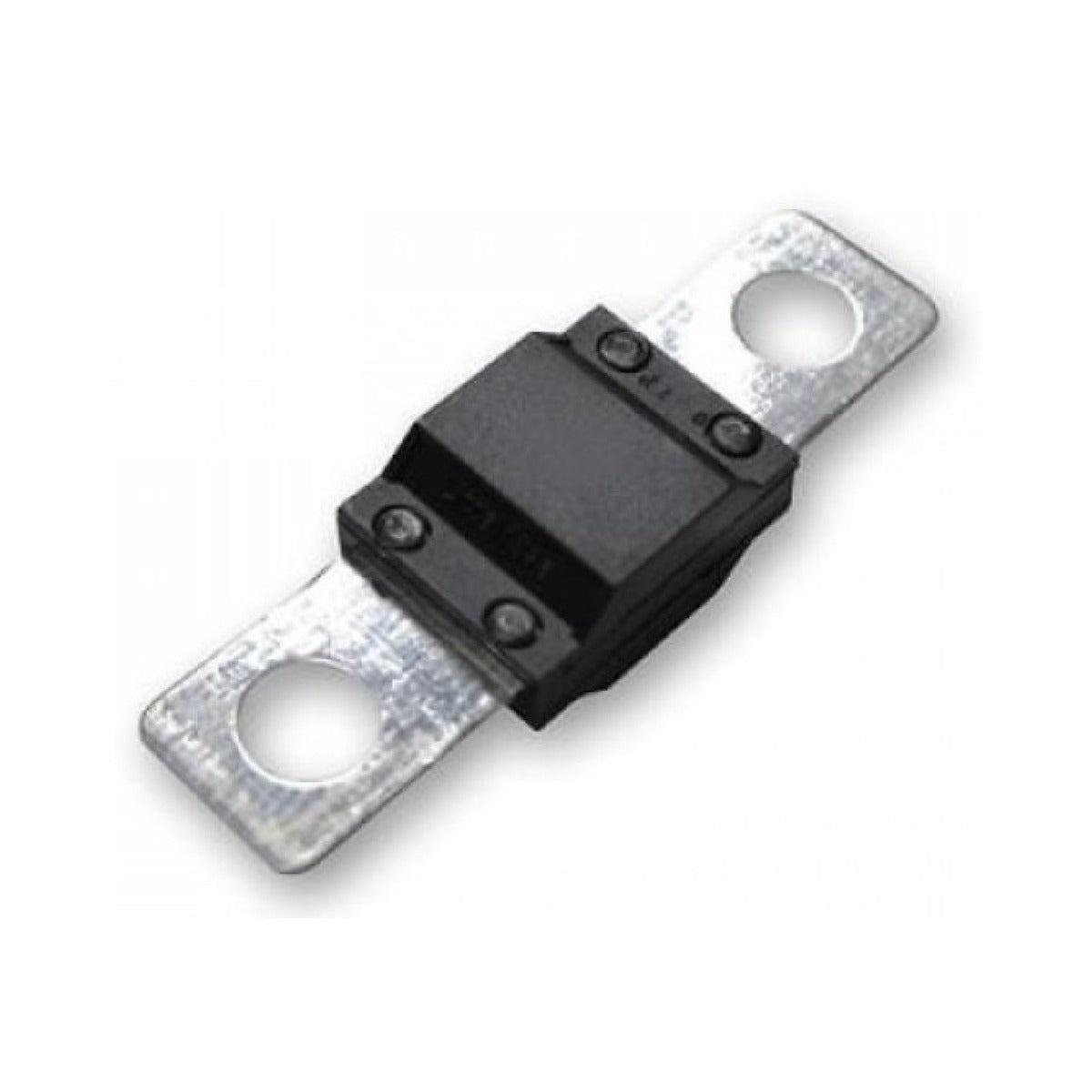

Victron MIDI Fuse 80A (58V)
Description
The Victron MIDI fuse is a compact bolt-down fuse designed to protect mid-range DC circuits, sitting between small blade fuses and the larger high-current MEGA fuse. It is commonly used on the DC feeds of 48V products, battery banks and distribution busbars where a neat, secure, mid-current fuse is needed.
This 80A version is rated for systems up to 58 volts, so it suits 12V, 24V and 48V installations. Its slow-blow characteristic tolerates normal inrush currents while protecting cabling and equipment against short circuits and sustained overloads. It mounts using M5 studs for a secure, low-resistance connection and fits neatly into the tight, high-vibration spaces found on boats and in vehicles.
PRODUCT DETAILS
- Rated 80A for mid-range DC circuit protection
- Rated for systems up to 58 volts, suits 12V, 24V and 48V
- Slow-blow characteristic tolerates normal inrush and surge currents
- Bolt-down design with M5 studs for a secure, low-resistance connection
- Compact body ideal for tight marine and vehicle installations
- Commonly used on the DC feeds of Victron 48V products
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Rated current | 80 A |
| Maximum voltage | 58 V |
| Fuse type | MIDI (slow-blow, bolt-down) |
Electrical
| Breaking capacity | High DC breaking capacity |
Physical
| Stud / mounting | M5 stud |
