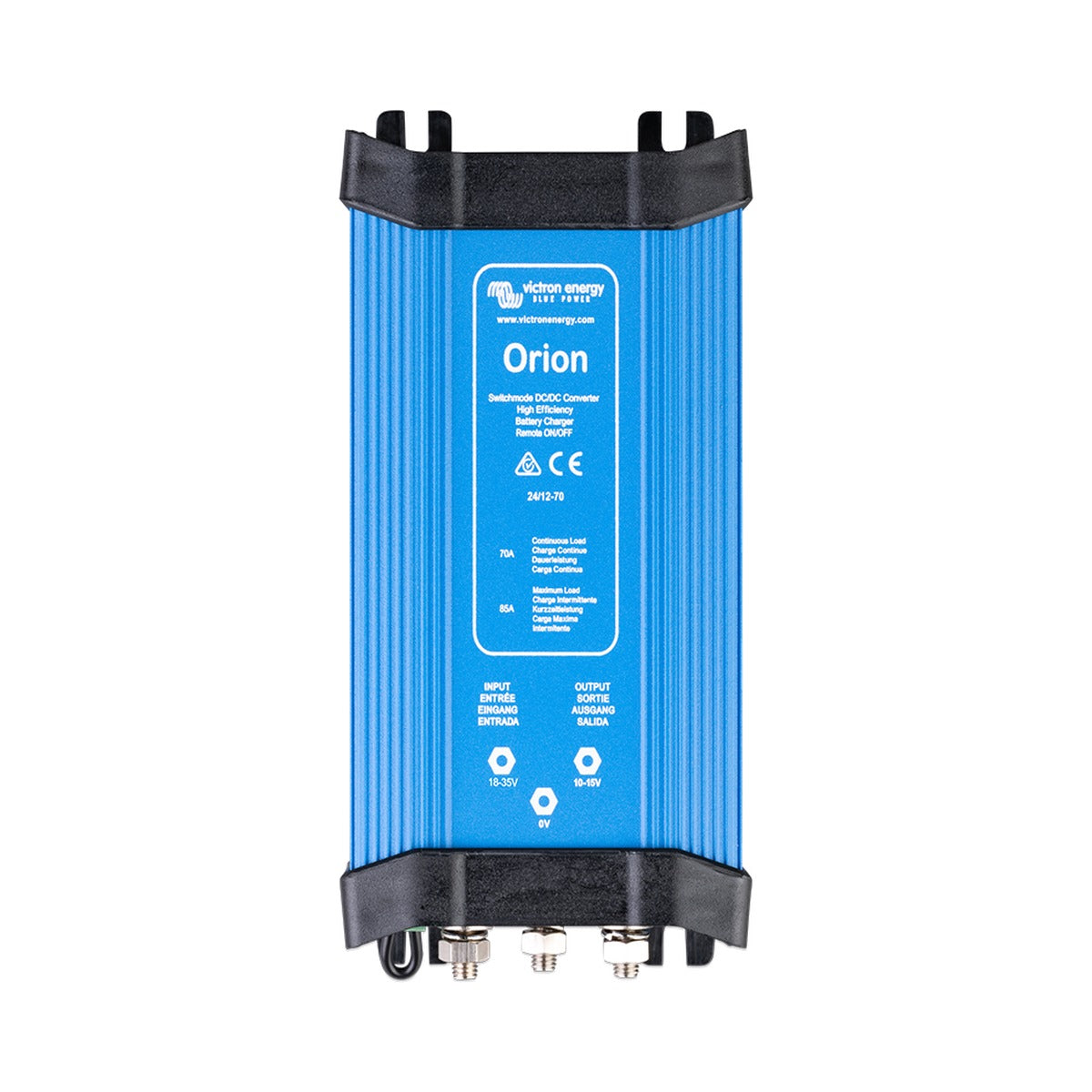

Victron Orion 24/12-70 Non-Isolated DC-DC Converter

ORI241270020
The Victron Orion 24/12-70 is a high-power non-isolated DC-DC converter that turns a 24V supply into an adjustable 12V output (10 to 15V, set to 13.2V) at up to 70A (840W). It runs large 12V loads from a 24V system and can buffer-charge a 12V battery.

Description

The Victron Orion 24/12-70 is a high-power non-isolated DC-DC converter that steps a 24V supply down to a 12V output, delivering up to 70A (840W continuous). The output is adjustable with a potentiometer over a 10 to 15V range, with a factory setting of 13.2V, so it can run substantial 12V loads from a 24V system or buffer-charge a 12V battery from a 24V source.

Efficiency is around 92 percent and a temperature-controlled fan keeps the unit cool at this high power level. A remote on/off connector removes the need for a high-current switch in the input wiring and can be operated by a low-power switch or the engine run/stop signal. Adjustable-output models can be paralleled, up to five units, to increase the available output current.

Power connections use M6 bolts for secure high-current wiring, and the converter installs without special tools.

PRODUCT DETAILS

  • 24V to 12V non-isolated conversion at up to 70A (840W continuous)
  • Output adjustable 10 to 15V with potentiometer, factory set to 13.2V
  • Runs large 12V loads or buffer-charges a 12V battery from a 24V source
  • Temperature-controlled fan for cool running at high power
  • Remote on/off connector for low-power or engine run/stop switching
  • Efficiency of around 92 percent
  • M6 bolt connections for secure high-current wiring
  • Up to five units can be paralleled to increase output

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Key specifications

Input voltage range18 to 35 V
Output voltage (nominal)12 V (adjustable 10 to 15 V, set 13.2 V)
Continuous output current70 A
Continuous output power840 W (12 V x 70 A)
Galvanic isolationNon-isolated
BluetoothNo

Input

Input voltage range18 to 35 V
Under-voltage shutdown14 V
Under-voltage restart18 V
Off load current< 20 mA

Output

Output voltage (factory set)13.2 V
Output voltage adjustment range10 to 15 V (potentiometer)
Continuous output current70 A
Maximum output current85 A
Maximum efficiency92 %
Suitable to buffer-charge a batteryYes

General

Galvanic isolationNo
Fan assisted coolingYes, temperature controlled
Remote on/offYes
Parallel operationYes, up to five units

Environmental

Operating temperature range-20 to +55 degrees C (derate 3 % per degree C above 40)

Physical

DC connectionM6 bolts
Weight0.9 kg
Dimensions (h x w x d)65 x 88 x 195 mm

Conformance

SafetyEN 60950
EmissionEN 61000-6-3, EN 55014-1
ImmunityEN 61000-6-2, EN 61000-6-1, EN 55014-2
