IRIS

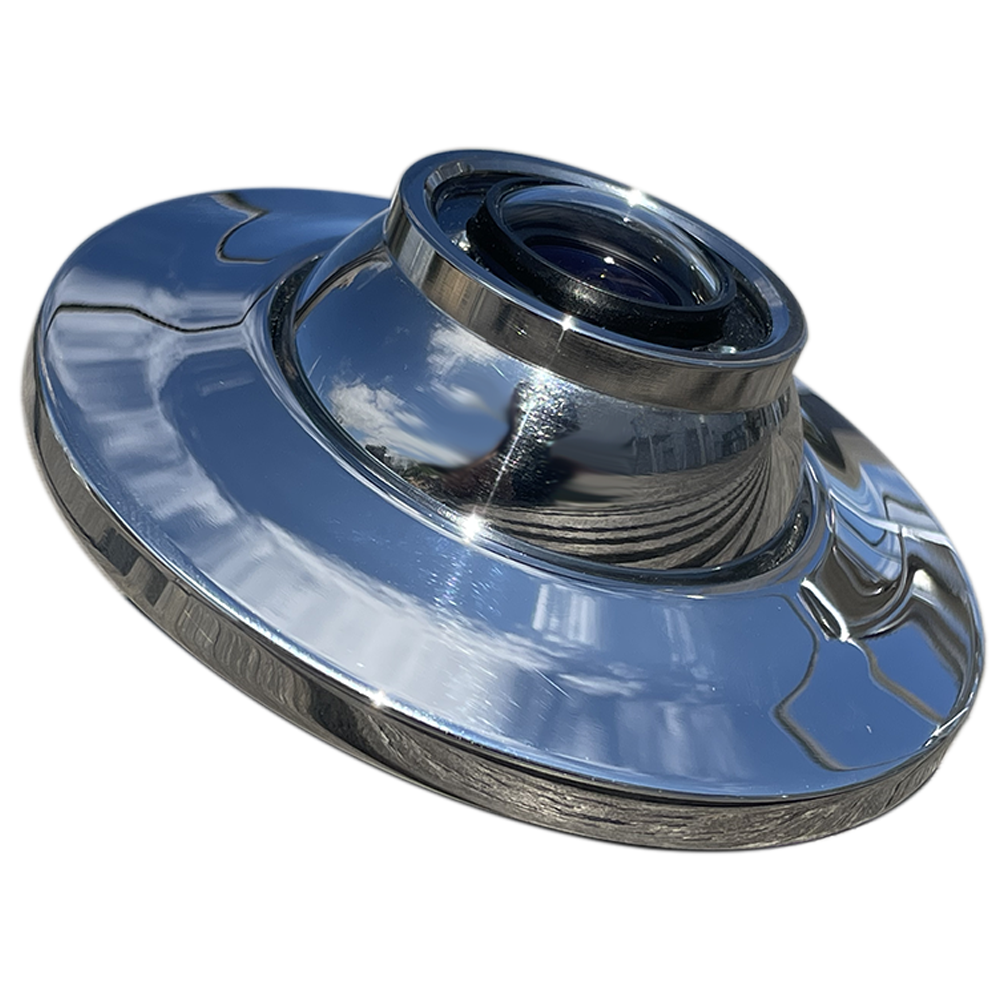

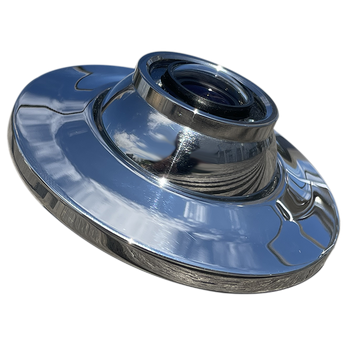

Iris IRIS-S076 4-in-1 Analogue HD Vertical-Mount Stainless Camera, Polished, 3.6mm
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Iris IRIS-S076 is the analogue version of Iris' Sx76 series, the first marine camera of its kind designed to be installed into a bulkhead or vertical surface. Its waterproof case is machined from marine grade 316L stainless steel so it will not corrode in harsh salt water, making it an ideal backup or docking camera. Mounted in the topsides it even assists when coming alongside jetties and pontoons.
During installation the inner ball can be aimed and then locked in place simply by tightening the outer bezel. The 4-in-1 module outputs analogue composite (CVBS) at 960H/1000TVL or HD-TVI, HD-CVI and AHD high definition formats up to 1080p, with on-screen-display setup via an in-line joystick on the cable tail. Six built-in 850nm infra red LEDs provide short range night vision to around 10 metres.
Certified to EN60945, EN55032, EN55035 and EN60529 (IP66), the analogue model feeds any MFD or screen with a composite video input directly, while AHD/TVI/CVI output connects through an interface or Iris CMAC system. Its rugged case and small footprint also suit recreational vehicles, fire and rescue trucks and other demanding applications.
PRODUCT DETAILS
- Designed for flush vertical, bulkhead and topside mounting
- Corrosion-proof marine grade 316L stainless steel case
- 4-in-1 camera module switchable between CVBS, HD-TVI, HD-CVI and AHD
- 1000TVL analogue resolution, up to 1920 x 1080 (1080p) in HD modes
- On-screen-display setup via in-line joystick on the cable tail
- Certified to EN60945, EN55032, EN55035 and EN60529 (IP66)
- Aim-and-lock inner ball adjusted by tightening the outer bezel
- Built-in 850nm infra red LEDs for around 10m night vision
- 3.6mm lens giving an 80 degree horizontal field of view
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Lens
| Lens / Field of View | 3.6mm lens, 80 degree horizontal field of view |
Video Output
| Connection | BNC 75 ohm female; 2.1mm DC power socket |
Illumination (IR)
| Infra Red | 6 x 850nm infra red LEDs |
| IR Range | Approximately 10 metres |
Power
| Operating Voltage | 12VDC (+10 to +15VDC range) |
| Power Consumption | 1W nominal, 1.8W maximum with LEDs on |
Environmental
| Ingress Protection | IP66 (EN60529) |
| Operating Temperature | -30 to +60 C |
| EMC | EN55032:2015/A11:2020, EN55035:2017/A11:2020, EN60945:2002 Sections 9 & 10, FCC Part 15 A & B |
Physical
| Material | Marine grade 316L stainless steel (high polished standard; brushed / powder coat options) |
| Diameter | 88 mm |
| Mounting Depth | 22.25 mm above and below the mounting surface |
Compatibility
| Marine Systems | CVBS to all MFDs/screens with composite video input; AHD/TVI/CVI via interface or Iris CMAC system |
Camera/Imaging
| Sensor | 1/4" CMOS sensor |
| Resolution | CVBS 960H; AHD/HD-TVI/HD-CVI up to 1920 x 1080 |
| Video Format | 4-in-1 switchable: CVBS, HD-TVI, HD-CVI, AHD |
| Setup | OSD menu via in-line joystick on cable tail |
| Mirroring | Horizontal and vertical, configured via OSD |
| Automatic Gain Control | Supported, multiple levels |
