Iris IRIS730 4-in-1 Analogue Through-Hull Camera, 3.6mm Lens
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The IRIS730 is the analogue model in Iris's Barracuda series of through-hull cameras, giving you a clear view of the world beneath the waterline. Built around a Sony EFFIO-P chipset, it produces high resolution 1000 TVL composite video with wide dynamic range and digital noise reduction processing, and its settings can be tuned through a plug-in configuration keypad.
As well as standard CVBS composite output for any chart plotter, TV or PC capture device with an analogue input, the IRIS730 can be configured for HD-TVI, HD-CVI and AHD formats delivering up to 1920 x 1080P resolution in real time, free of the latency sometimes seen with IP systems. Set to TVI and combined with an Iris HVR or video switcher with HDMI output, it feeds real-time high definition to displays with digital inputs such as Garmin's 8000 series.

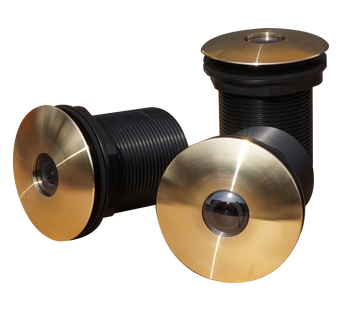

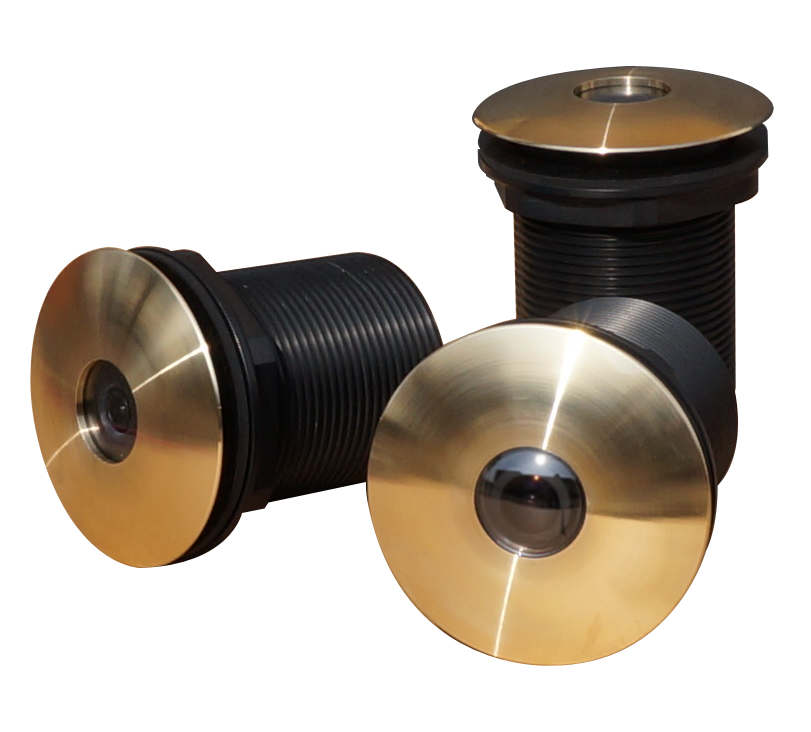

The camera has an aluminium bronze bezel, hard anodised body and a reinforced, scratch-resistant, optically clear lens window. Plug-and-play and IP68 rated, it is ideal as part of a sports fishing monitoring system, for sub-surface security, monitoring running gear or simply watching marine life.
PRODUCT DETAILS
- Barracuda series through-hull camera with hard anodised body and aluminium bronze bezel
- Sony EFFIO-P chipset, high resolution 1000 TVL analogue video
- 4-in-1 video: CVBS plus HD-TVI, HD-CVI and AHD up to 1080P in real time
- 3.6mm lens
- Wide dynamic range and digital noise reduction processing
- User configurable via plug-in keypad
- Reinforced scratch-resistant optically clear lens window
- IP68 waterproof with plug-and-play connectivity and low power draw
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Camera/Imaging
| Sensor | Sony EFFIO-P |
| Resolution | 1000 TVL analogue; up to 1920 x 1080P in HD formats |
| Image Processing | Wide Dynamic Range (WDR) and Digital Noise Reduction (DNR) |
Lens
| Lens | 3.6mm |
Video Output
| Video Format | 4-in-1: CVBS plus HD-TVI, HD-CVI, AHD; PAL / NTSC switchable |
Power
| Configuration | User configurable via plug-in keypad |
Environmental
| Environmental Rating | IP68 waterproof |
Physical
| Housing | Hard anodised body with aluminium bronze bezel; scratch-resistant lens window |
| Dimensions | 204 x 193 x 175mm (packaged) |
Compatibility
| MFD Compatibility | All chart plotters with composite input; HD via Iris HVR / switcher to digital MFDs (e.g. Garmin 8000 series) |
