Iris ATOM A418 Compact Hi-Def IP PTZ Camera, 30x Zoom, White, Base Entry
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

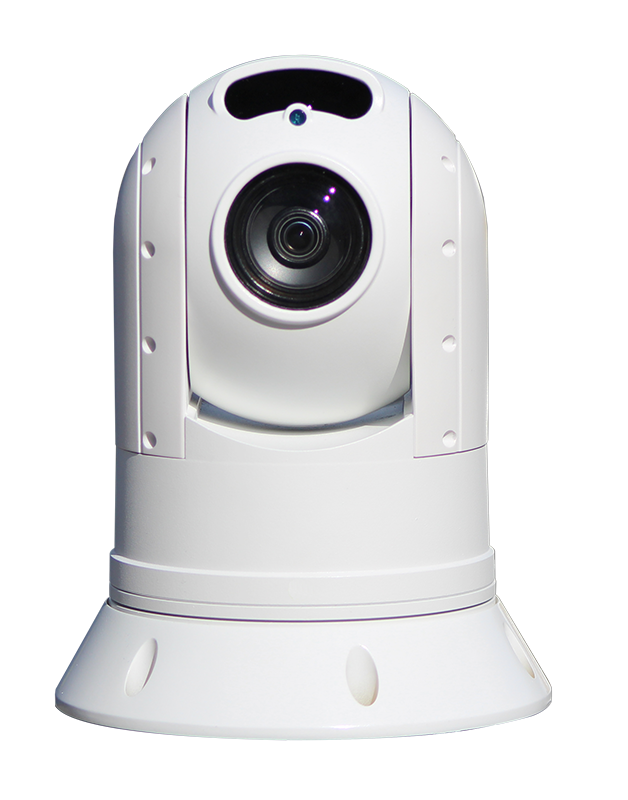

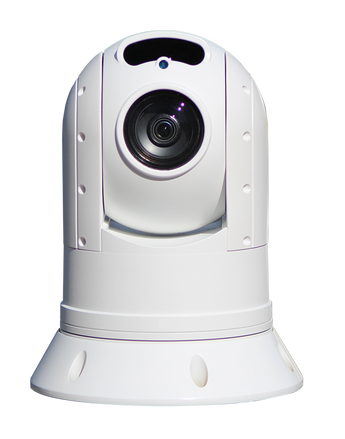

The ATOM A418 is a high-definition visible-spectrum IP PTZ camera with a powerful 30x optical zoom, part of the compact Iris ATOM range. The network camera module sits in a robust, waterproof gimbal-mount enclosure built to withstand the harshest marine conditions, yet stands only around 206mm tall, making it ideal for RIBs, centre consoles and sports-fishing boats.
Leading image processing such as noise reduction, image enhancement and wide dynamic range keeps footage sharp, while an array of high-power infrared illuminators extends visibility in darkness to around 100m and image-gain boosting maximises low-light clarity. Pan, tilt and zoom are fast and responsive, with up to 255 user presets and a range of scans and automated tours.
As well as IP network control, an RS485 serial connection is provided so the camera can be operated from an NVR, a computer, Iris CMAC camera management systems or any Pelco-D joystick controller. The A418 is both ONVIF and NDAA compliant. This version is finished in white with a base-entry cable connector and runs on 12VDC or Power over Ethernet.
PRODUCT DETAILS
- 2MP high-definition visible-spectrum sensor with 30x optical zoom
- IP network camera, ONVIF and NDAA compliant
- High-power infrared LEDs with up to 100m range and true day/night operation
- Up to 255 user presets with scans and four user-definable patrols
- IP and RS485 / Pelco-D control via NVR, computer, CMAC or joystick
- 12VDC or Power over Ethernet operation
- Compact, lightweight waterproof gimbal enclosure rated IP66
- White finish with base-entry waterproof push-lock connector
No compatible transducers listed for this product.
Camera/Imaging
| Sensor | 1/2.8" high-performance low-illumination CMOS (Sony IMX327) |
| Resolution | 2MP, 1920 x 1080P |
| Image Enhancement | DWDR / noise reduction / image enhancement |
Lens
| Optical Zoom | 30x |
| Focal Length | 4.7mm to 141mm |
| Iris | F1.6 to F3.5 |
Illumination (IR)
| IR Range | High-power infrared LEDs, up to 100m (328ft) |
Pan / Tilt
| Presets | Up to 255 user presets, 4 user-definable patrols, scans and tours |
Connectivity
| Control | IP network and RS485 / Pelco-D serial data |
Power
| Power Requirements | +12VDC or Power over Ethernet |
Environmental
| Ingress Protection | IP66 |
| Connector | Push-lock quick connector, IP66 |
Physical
| Dimensions | 206mm (H) x 160mm diameter |
| Weight | 2 kg |
| Finish | White |
| Cable Entry | Base entry |
Compliance
| Standards | ONVIF compliant / NDAA compliant |
