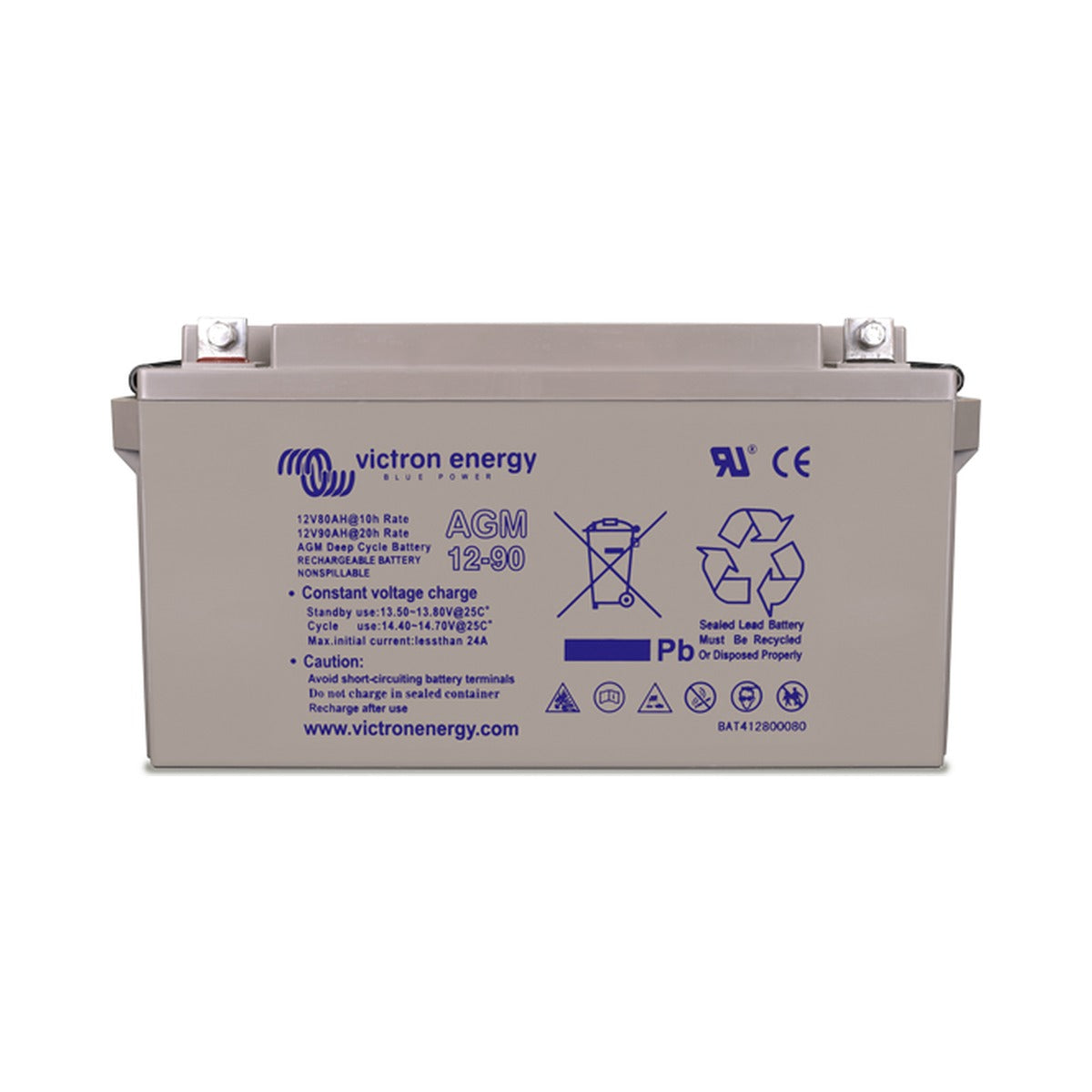

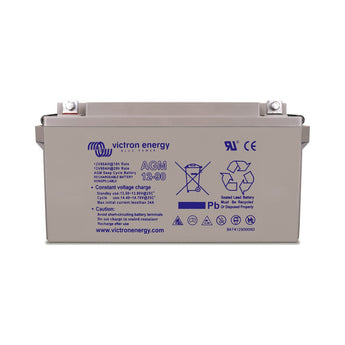

Victron AGM Deep Cycle Battery 12V/90Ah (M6)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron 12V/90Ah AGM Deep Cycle battery (M6) is a sealed valve-regulated lead-acid (VRLA) battery built with absorbent glass mat technology, with the electrolyte held in a glass-fibre mat between the plates. It is maintenance free and can be mounted in most orientations. This version is fitted with M6 threaded insert terminals, which accept ring-lug connections directly and can be adapted to standard posts where required.
AGM construction gives very low internal resistance, providing the high-current capability needed for inverters, thrusters, winches, and engine starting, as well as deep-cycle house duties. It delivers 400 A cold cranking and 130 minutes reserve capacity.
Lead-calcium grids and high-purity materials keep self-discharge below 2% per month at 20°C, allowing long storage between charges in cool conditions. Limiting deep, prolonged discharges helps the battery reach its full service life.
PRODUCT DETAILS
- Sealed maintenance-free VRLA AGM construction
- 12V nominal, 90Ah rated capacity at the 20 hour rate (C20)
- M6 threaded insert terminals for direct ring-lug connection
- Cold cranking 400 A; reserve capacity 130 minutes
- Very low internal resistance for inverters, thrusters and winches
- Self-discharge below 2% per month at 20°C
- Cycle design life of 400 cycles at 80% depth of discharge
- Float design life of 7 to 10 years at 20°C; 350 x 167 x 183 mm, 27 kg
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Technology | Flat plate AGM (VRLA) |
| Nominal voltage | 12 V |
| Rated capacity (C20) | 90 Ah |
| Terminals | M6 threaded insert |
| Weight | 27 kg |
Capacity
| Rated capacity at 20h discharge | 90 Ah |
| Cold cranking amps (CCA) | 400 A |
| Reserve capacity | 130 min |
Charging
| Absorption voltage | 14.2 - 14.6 V |
| Float voltage | 13.5 - 13.8 V |
| Storage voltage | 13.2 - 13.5 V |
| Maximum charge current | 0.2 C |
| Temperature compensation | -24 mV/°C |
Cycle life
| Float design life at 20°C | 7 - 10 years |
| Cycle life at 80% DoD | 400 cycles |
| Cycle life at 50% DoD | 600 cycles |
| Cycle life at 30% DoD | 1500 cycles |
| Self-discharge at 20°C | < 2 %/month |
Physical
| Dimensions (l×w×h) | 350 x 167 x 183 mm |
