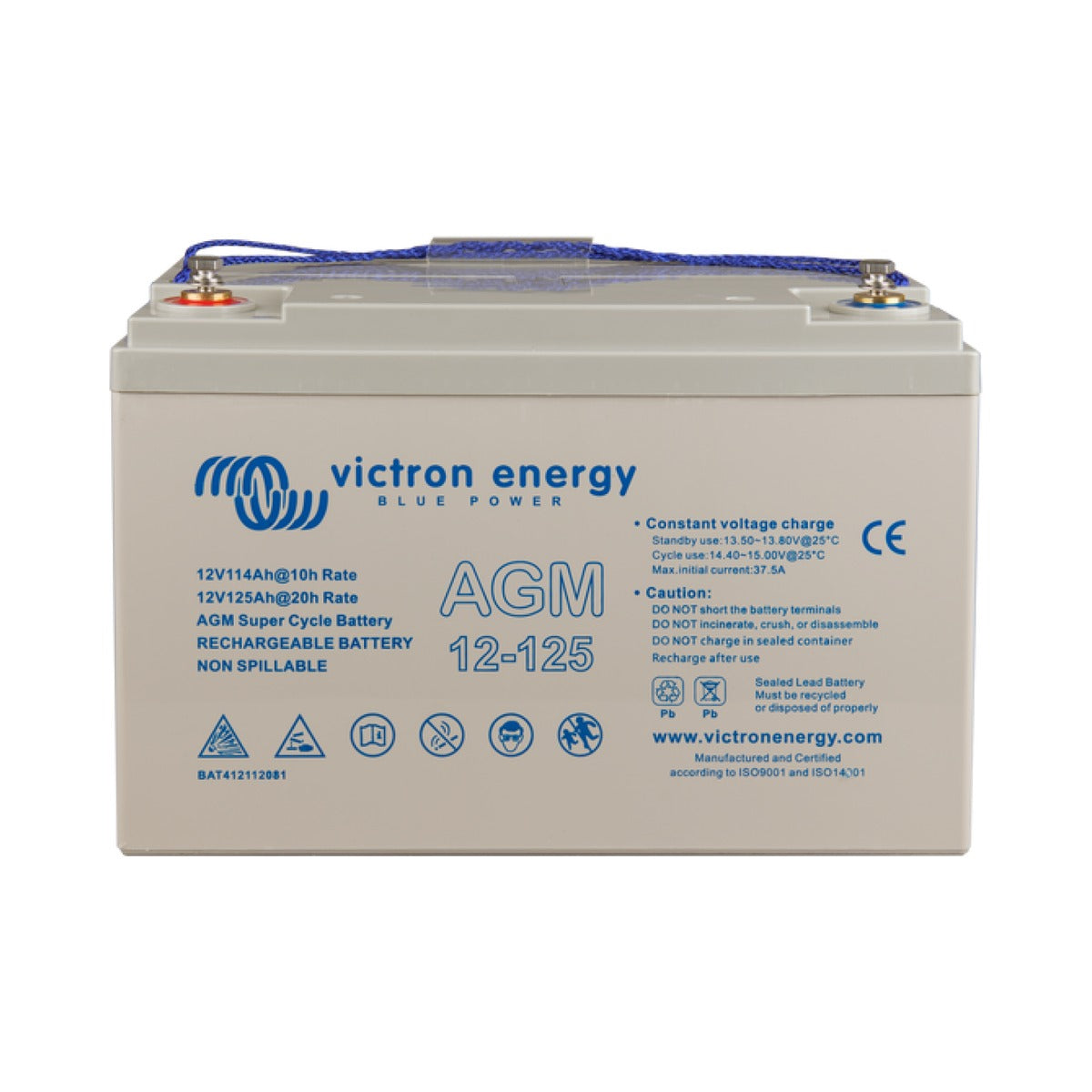

Victron AGM Super Cycle Battery 12V/125Ah (M8)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Energy AGM Super Cycle is a 12V 125Ah valve-regulated lead-acid (VRLA) battery designed for cyclic use. Improved positive-plate paste and electrolyte additives make the cells far more tolerant of deep discharge, so the battery withstands repeated heavy cycling that would quickly damage a conventional AGM.
Victron recommends the Super Cycle range where an occasional discharge to 100% depth of discharge, or frequent discharge to 60-80% DoD, is expected. A 550A cold-cranking rating and low internal resistance suit this 125Ah size to larger house banks and dual-purpose service and starting duty.
As a sealed, maintenance-free AGM, it can be mounted in most orientations and needs no topping up, making it a dependable house bank for marine and leisure installations.
PRODUCT DETAILS
- Sealed, maintenance-free AGM (VRLA) construction
- 12V nominal, 125Ah at the 20-hour rate (114Ah C10, 105Ah C5 to 10.8V)
- Improved plate paste and electrolyte additives for deep-discharge tolerance
- At least 300 cycles at 100% DoD; ~700 at 60% DoD; ~1000 at 40% DoD
- Cold-cranking 550A and 220 min reserve capacity for house or dual-purpose duty
- Low internal resistance for high-current loads
- M8 insert terminals
- Dimensions 330 x 171 x 214 mm; weight 33 kg
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Technology | AGM (VRLA), Super Cycle |
| Nominal voltage | 12 V |
| Rated capacity (C20) | 125 Ah |
| Terminals | M8 insert |
| Weight | 33 kg |
Capacity
| Capacity at C5 | 105 Ah |
| Capacity at C10 | 114 Ah |
| Capacity at C20 | 125 Ah |
| Cold cranking amps (CCA) | 550 A |
| Reserve capacity | 220 min |
Charging
| Absorption voltage | 14.2 - 14.6 V |
| Float voltage | 13.5 - 13.8 V |
| Storage voltage | 13.2 - 13.5 V |
| Temperature compensation | -24 mV/°C |
Cycle life
| Cycle life at 100% DoD | 300 cycles |
| Cycle life at 60% DoD | 700 cycles |
| Cycle life at 40% DoD | 1000 cycles |
Physical
| Dimensions (l×w×h) | 330 x 171 x 214 mm |
