Victron AGM Super Cycle Battery 12V/170Ah (M8)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

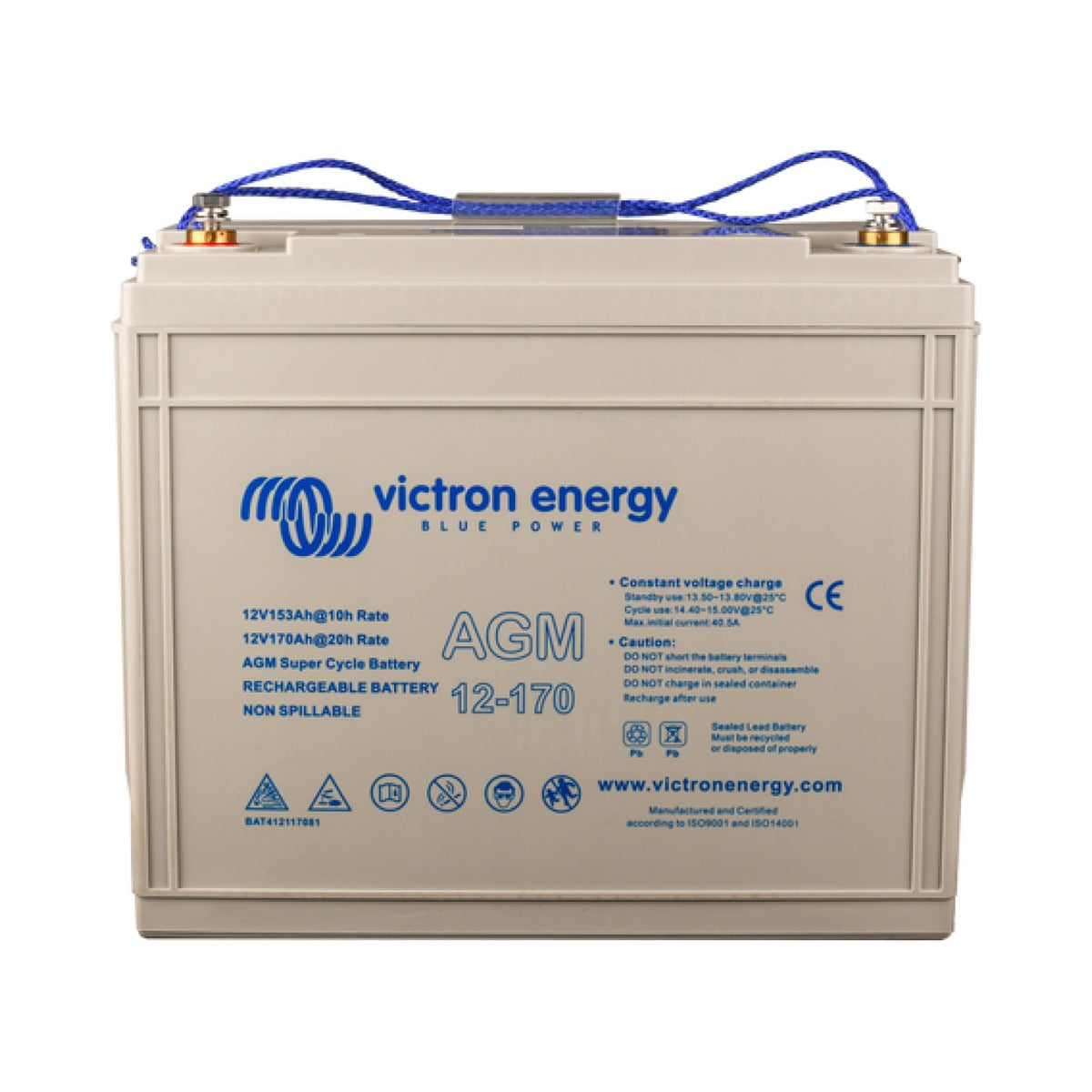

The Victron Energy AGM Super Cycle is a 12V 170Ah valve-regulated lead-acid (VRLA) battery designed for cyclic use. Improved positive-plate paste and electrolyte additives make the cells far more tolerant of deep discharge, so the battery withstands repeated heavy cycling that would quickly damage a conventional AGM.
Victron recommends the Super Cycle range where an occasional discharge to 100% depth of discharge, or frequent discharge to 60-80% DoD, is expected. With 170Ah capacity, a 600A cold-cranking rating and low internal resistance, this size suits large house banks and combined service and starting installations.
As a sealed, maintenance-free AGM, it can be mounted in most orientations and needs no topping up, making it a dependable house bank for marine and leisure installations.
PRODUCT DETAILS
- Sealed, maintenance-free AGM (VRLA) construction
- 12V nominal, 170Ah at the 20-hour rate (153Ah C10, 145Ah C5 to 10.8V)
- Improved plate paste and electrolyte additives for deep-discharge tolerance
- At least 300 cycles at 100% DoD; ~700 at 60% DoD; ~1000 at 40% DoD
- Cold-cranking 600A and 290 min reserve capacity for house or dual-purpose duty
- Low internal resistance for high-current loads
- M8 insert terminals
- Dimensions 336 x 172 x 280 mm; weight 45 kg
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Technology | AGM (VRLA), Super Cycle |
| Nominal voltage | 12 V |
| Rated capacity (C20) | 170 Ah |
| Terminals | M8 insert |
| Weight | 45 kg |
Capacity
| Capacity at C5 | 145 Ah |
| Capacity at C10 | 153 Ah |
| Capacity at C20 | 170 Ah |
| Cold cranking amps (CCA) | 600 A |
| Reserve capacity | 290 min |
Charging
| Absorption voltage | 14.2 - 14.6 V |
| Float voltage | 13.5 - 13.8 V |
| Storage voltage | 13.2 - 13.5 V |
| Temperature compensation | -24 mV/°C |
Cycle life
| Cycle life at 100% DoD | 300 cycles |
| Cycle life at 60% DoD | 700 cycles |
| Cycle life at 40% DoD | 1000 cycles |
Physical
| Dimensions (l×w×h) | 336 x 172 x 280 mm |
