Victron

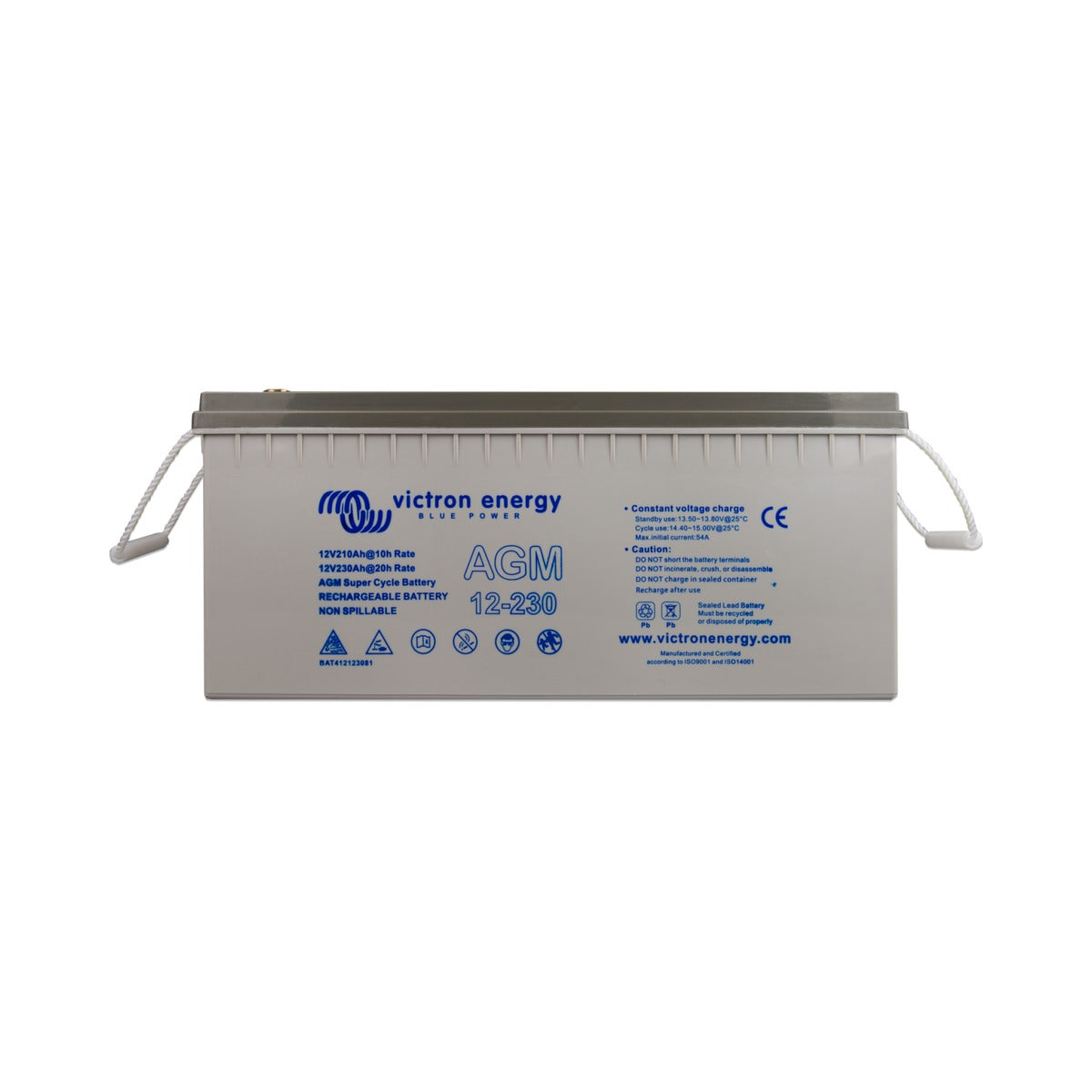

Victron AGM Super Cycle Battery 12V/230Ah (M8)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Energy AGM Super Cycle is a 12V 230Ah valve-regulated lead-acid (VRLA) battery designed for cyclic use. Improved positive-plate paste and electrolyte additives make the cells far more tolerant of deep discharge, so the battery withstands repeated heavy cycling that would quickly damage a conventional AGM.
Victron recommends the Super Cycle range where an occasional discharge to 100% depth of discharge, or frequent discharge to 60-80% DoD, is expected. As the largest model in the range, this 230Ah battery offers a 700A cold-cranking rating and a 400 minute reserve capacity, making it well suited to large house banks and high-demand service installations.
As a sealed, maintenance-free AGM, it can be mounted in most orientations and needs no topping up, making it a dependable house bank for marine and leisure installations.
PRODUCT DETAILS
- Sealed, maintenance-free AGM (VRLA) construction
- 12V nominal, 230Ah at the 20-hour rate (210Ah C10, 200Ah C5 to 10.8V)
- Improved plate paste and electrolyte additives for deep-discharge tolerance
- At least 300 cycles at 100% DoD; ~700 at 60% DoD; ~1000 at 40% DoD
- Cold-cranking 700A and 400 min reserve capacity for large house banks
- Low internal resistance for high-current loads
- M8 insert terminals
- Dimensions 532 x 207 x 226 mm; weight 57 kg
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Technology | AGM (VRLA), Super Cycle |
| Nominal voltage | 12 V |
| Rated capacity (C20) | 230 Ah |
| Terminals | M8 insert |
| Weight | 57 kg |
Capacity
| Capacity at C5 | 200 Ah |
| Capacity at C10 | 210 Ah |
| Capacity at C20 | 230 Ah |
| Cold cranking amps (CCA) | 700 A |
| Reserve capacity | 400 min |
Charging
| Absorption voltage | 14.2 - 14.6 V |
| Float voltage | 13.5 - 13.8 V |
| Storage voltage | 13.2 - 13.5 V |
| Temperature compensation | -24 mV/°C |
Cycle life
| Cycle life at 100% DoD | 300 cycles |
| Cycle life at 60% DoD | 700 cycles |
| Cycle life at 40% DoD | 1000 cycles |
Physical
| Dimensions (l×w×h) | 532 x 207 x 226 mm |
