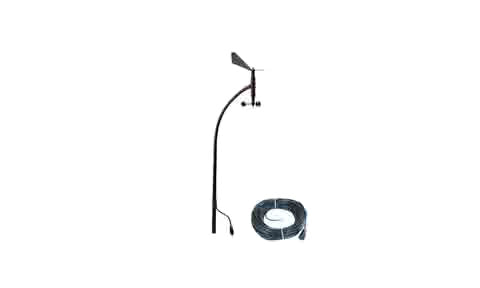

B&G H5000 1050mm Vertical Mast Head Unit Pack

Name: B&G H5000 1050mm Vertical Mast Head Unit Pack
Brand: B&G
SKU: BGH030002
Availability: Discontinued

BGH030002

The B&G H5000 1050mm Vertical Mast Head Unit Pack provides B&G's ocean-proven, high-performance masthead wind sensor with a 1050mm vertical wand, supplied as a pack for installation on the H5000 (and H3000) instrument system. It measures wind speed and angle and outputs via pulse/analogue, interfacing to the system through the H5000 Analog Expansion Module.

Description

The B&G H5000 Vertical Mast Head Unit Pack provides B&G's ocean-proven, high-performance wind sensor supplied as a complete masthead pack with a 1050mm vertical wand. It provides raw wind speed and wind angle data to the H5000 instrument system via a pulse/analogue output.

Built for rugged offshore use and fully field serviceable, the masthead unit feeds wind data to the H5000 CPU through the H5000 Analog Expansion Module, where it is processed for display and, with a 3D Motion Sensor, motion-corrected for the most accurate wind solution. It is compatible with B&G H5000 and H3000 systems. Please confirm exact pack contents and required mast cable length when ordering.

PRODUCT DETAILS

Ocean-proven high-performance masthead wind sensor pack
Measures wind speed and wind angle
1050mm vertical wand
Pulse / analogue output
Rugged construction and fully field serviceable
Compatible with B&G H5000 and H3000 systems

No exploded diagram available for this product.

No compatible transducers listed for this product.

B&G VMHU Top Bracket

B&G VMHU Mast Cable 50m

B&G VMHU Mast Cable 80m

B&G VMHU Face Bracket

B&G H5000 Analogue - Expansion Module (Analogue)

Other

Sensor Type	Vertical masthead wind sensor
Measures	Wind speed and wind angle
Variant	Pack
Compatibility	B&G H5000 and H3000 systems

Connectivity

Output

Pulse / analogue (via H5000 Analog Expansion Module)

Physical

Wand Length	1050mm
Construction	Rugged, fully field serviceable

What does the Vertical Mast Head Unit measure?

The masthead unit is B&G's ocean-proven, high-performance wind sensor. It measures wind speed and wind angle at the top of the mast and provides this raw data to the instrument system.

How does the masthead unit connect to the H5000 system?

It provides a pulse/analogue output and is connected to the system through the H5000 Analog Expansion Module, which interfaces the masthead unit (and other analogue/pulse sensors) to the H5000 CPU.

What does the wand length (810mm, 1050mm, 1450mm) mean?

The figure is the length of the vertical wand that carries the wind sensor. A longer wand raises the cups and vane further above masthead turbulence, which can improve wind data quality on larger rigs.

Is it compatible with my existing B&G system?

Yes. The masthead unit is compatible with both B&G H5000 and H3000 systems, and it remains a preferred replacement sensor for existing installations.

Is the masthead unit serviceable?

Yes. It is of rugged construction and fully field serviceable, with spare parts such as cups, vane and bearings available separately.

Do I need a separate mast cable?

A mast cable is required to run the signal from the masthead unit down to the system. Confirm the cable length you need for your mast height when ordering, as the correct 213 mast cable is selected to suit your installation.
