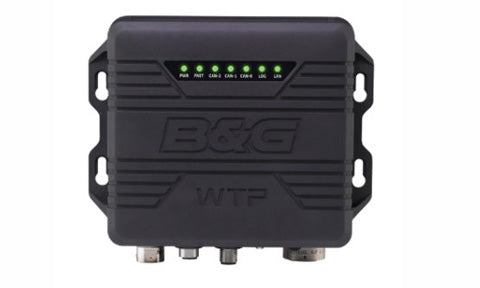

B&G WTP3 CPU
Description
The WTP3 CPU is the heart of B&G's Wave Technology Processor 3 system, developed with leading professional racing teams and proven on Volvo Ocean Race winners, America's Cup boats and round-the-world record holders. A powerful embedded-Linux processor calculates and distributes data far faster than conventional instrument systems, using a new architecture in which the central CPU links to distributed data-collection modules over three independent CAN channels. Data is processed in the CPU, which outputs display data, transmits serial and digital data via the interface modules, communicates with Deckman and FTP clients over a 100 Mbit Ethernet LAN, and runs an on-board datalogger for post-sail analysis. Seven diagnostic LEDs on the top of the unit indicate power, Fastnet, the three CAN channels, the datalog and the LAN at a glance. The lightweight, hard-anodised case protects the CPU in the harsh conditions found on a racing yacht, and the whole system is powered from a single 12V DC supply.
PRODUCT DETAILS
- Core processor of the B&G WTP3 grand prix instrument system
- Powerful embedded-Linux processor for very high-speed data calculation
- Three independent, configurable CAN channels for distributed data collection
- Fastnet output for B&G displays and pilot, plus 100 Mbit Ethernet for Deckman and FTP
- On-board datalogger and USB port for software updates and log off-load
- Seven diagnostic status LEDs and a rugged hard-anodised case
- Single 12V DC power supply
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | WTP3 central processing unit (CPU) |
| Operating System | Embedded Linux |
| Enclosure | Hard-anodised case |
Connectivity
| CAN Channels | 3 independent, configurable channels (125 kbit to 1 Mbit; default 250 kbit) |
| Network Output | Fastnet (displays, compatible sensors, pilot) |
| LAN | 100 Mbit Ethernet (Deckman comms and FTP access) |
| USB | Software/configuration updates and datalog off-load |
| Connectors | 8 connectors (Fastnet, USB, Terminal, Power, 3 x CAN, LAN) |
Features
| Diagnostic LEDs | 7 (Power, Fastnet, CAN-0, CAN-1, CAN-2, Datalog, LAN) |
| Data Logging | On-board datalogger for post-sail analysis |
Electrical
| Supply Voltage | 12V DC (single supply) |
Compliance
| Standards | FCC CFR47 Part 15 Class B; EN 60945 / IEC 945 |
