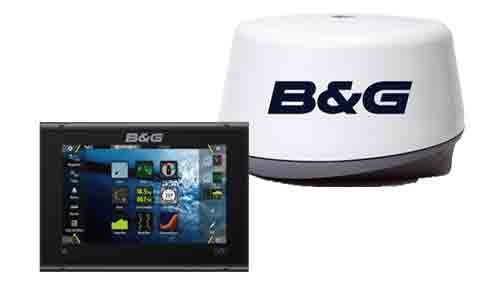

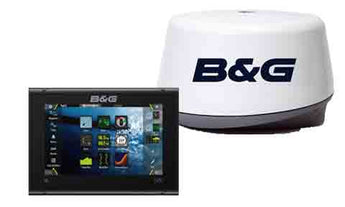

B&G Vulcan 7R 7-Inch Chartplotter Radar Sonar - Broadband 3G Radar
Manufacturer Part Number:
000-14079-001
Manufacturer Part Number:
000-14079-001
B&G Vulcan 7 is a 7-inch touch screen chartplotter built specifically for sailors. Packed with sailing specific functions such as B&G’s Award Winning SailSteer™ and Sailing Time, sailors can see all key sailing data at a glance. SailSteer allows sailors to view crucial sailing data on one handy screen or alternatively overlaid on your position on the chartplotter screen. GoFree™ Compatible with built in Wi-Fi functionality. Advanced NMEA2000® networking. Broadband Radar™ and ForwardScan™ ready. Comes with B&G 3G BB Radar Kit
Home or Marina Delivery
Pick up at Hamble
More Information
In the Box
1. 3G or 4G Broadband Radar
2. Radar interconnection cable
Lowrance 10 meter
B&G and Simrad 20 meter
3. Option heading sensor required for MARPA and chart overlay (not included)
4. RI10 Radar interface box
5. Ethernet cable: shipped with 1.8 m (6 ft)
6. Display: Simrad NSO, NSE or NSS / B&G Zeus / Lowrance HDS (not included).
7. SimNet or NMEA2000 data network (not included)
Dimensions for
B&G 3G and 4G
Lowrance 3G and 4G
Simrad 3G and 4G
Underside Dimensions
A. Cable entry area
B. Cable retention channel
C. Bolt holes x 4 M8 x 30 mm
D. Breather
RI 10 Dimensions
Radar interface box
Vulcan Multi-function Display Navigation
Parts included
1. Display unit
2. Panel mounting kit
• Gasket
• Mounting screws (4x #4 x 3/4" PN HD SS)
3. Sun cover
4. Cable - Combined power and NMEA 2000 cable - 5" unit - Power cable - 7", 9" and 12" units
5. Fuseholder and fuse (3 A, ATC-blade)
6. Protective caps -2x - 5" unit 3x - 7", 9" and 12" units
7. Documentation package
• Installation manual
• Quick guide • Mounting template
Bracket
8 A: Bracket mounting kit - 5" unit
• Quick Release Bracket
• Mounting screws (4x #10 x 3/4" PN HD SS)
B: Bracket mounting kit - 7" and 9" units
• U bracket (plastic)
• Mounting screws (4x #10 x 3/4" PN HD SS)
• Bracket knobs (2x)
C: Bracket mounting kit - 12" unit
• U bracket (metal)
• Mounting screws (4
Dimensions
B&G Vulcan 5FS
Dimensions
B&G Vulcan 7R
Dimensions
B&G Vulcan 9FS
Dimensions
B&G Vulcan 12R
