IRIS
Iris IRIS-EX106 Explosion Proof Stainless PTZ Dome Camera, Analogue 4-in-1
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

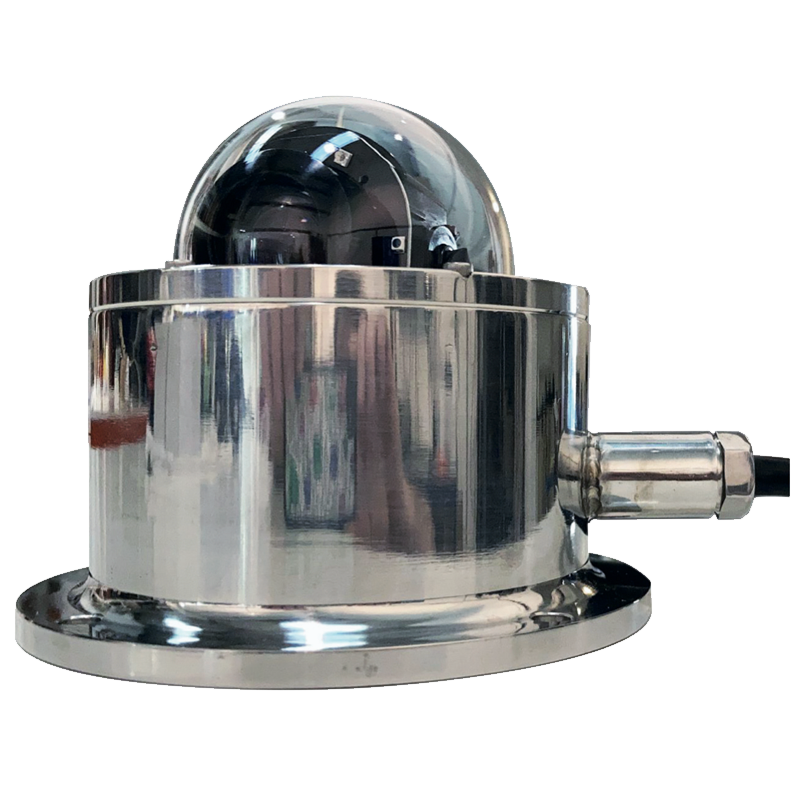

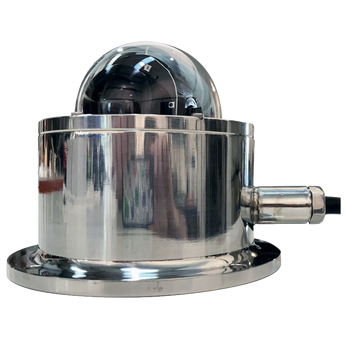

The IRIS-EX106 is a high-definition, explosion-proof PTZ camera built for the most hazardous marine and industrial environments, including engine-room and deck monitoring, chemical and petroleum facilities, oil depots, drilling platforms and other offshore vessels. The body is machined from marine-grade 316L stainless steel, making it both extremely rugged and corrosion proof, and matching explosion-proof junction boxes and cable hoses are available for complete protection.
It is certified for use in flammable and explosive atmospheres, carrying an ExdIICT6Gb / ExtDA21 marking that covers IIA, IIB and IIC flammable gas groups across temperature classes T1 to T6, plus Zones 20, 21 and 22 for combustible dust. A built-in LED illuminator provides visibility to around 40m in darkness.
This EX106 model is the analogue version, outputting composite (CVBS PAL/NTSC), HD-TVI, HD-CVI and AHD video with a 12x optical zoom, and is controlled over a two-wire RS485 serial connection. It runs on 12VDC and supports multiple compression rates, bitrates and streaming protocols.
PRODUCT DETAILS
- Explosion-proof PTZ camera for hazardous marine and industrial areas
- Machined from corrosion-proof marine-grade 316L stainless steel
- ExdIICT6Gb / ExtDA21 hazardous-area certification (gas and dust)
- Waterproof to IP68
- 1920 x 1080P HD resolution with 12x optical zoom
- 4-in-1 analogue output: CVBS, AHD, HD-TVI and HD-CVI
- Built-in LED illumination with up to 40m range
- RS485 serial data control, powered from 12VDC
No compatible transducers listed for this product.
Camera/Imaging
| Resolution | 1920 x 1080P |
Lens
| Optical Zoom | 12x |
Illumination (IR)
| LED Illumination | Built-in LED, up to 40m range |
Video Output
| Output Formats | CVBS (PAL/NTSC) / AHD / HD-TVI / HD-CVI |
Connectivity
| Control Protocol | RS485 serial data |
Power
| Power Input | 12VDC |
Environmental
| Ingress Protection | IP68 (waterproof) |
| Hazardous Area Certification | ExdIICT6Gb / ExtDA21 (IIA/IIB/IIC gas, T1-T6; Zones 20/21/22 dust) |
Physical
| Material | 316L stainless steel |
| Dimensions (packaged) | 405 x 240 x 226 mm |
| Weight | 4.66 kg |
No videos available for this product.
