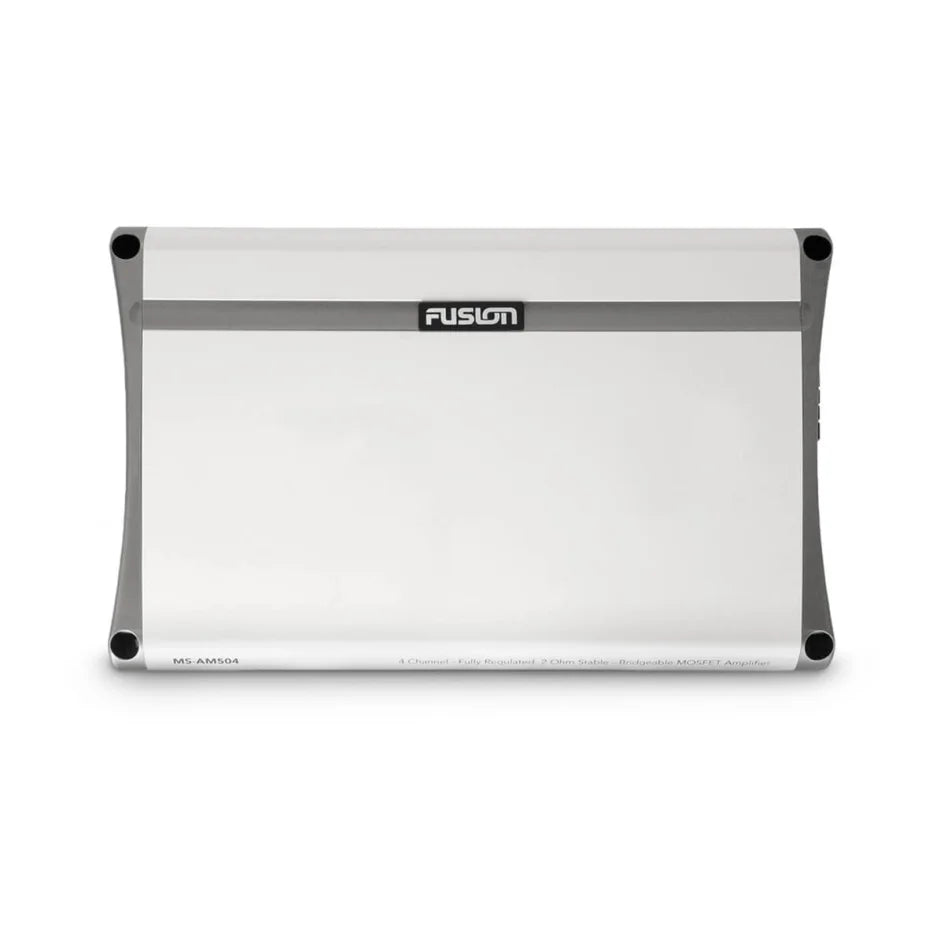

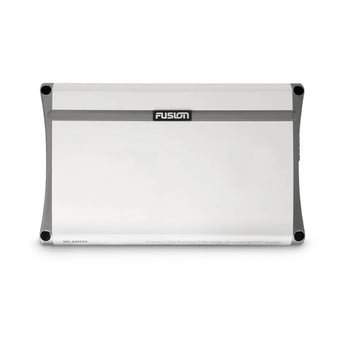

Fusion AM 500-Watt 4 Channel Marine Amplifier
QUALITY AUDIO AMPLIFICATION
Purpose-built for the marine environment, the AM Series marine amplifiers are designed to enhance your on-water listening experience with quality audio amplification.
Class-AB amplifier design delivers efficiency with reduced distortion.
Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power.
Conformal coated PCBs provide extra protection from the marine elements.
Heat sink provides greater dissipation of heat for enhanced component reliability.
The amplifiers are available in 2-channel and 4-channel configurations.
Overview
| Physical dimensions (Length x Width x Height) | 2 Channel: 11.65″ x 9.02″ x 2.09″ (296 x 229 x 53 mm) |
| 4 Channel: 14.41″ x 9.02″ x 2.09″ (366 x 229 x 53 mm) | |
| Amplifier class | Class-AB |
| Peak power (Watts) | 2 Channel: 400 W |
| /td> | 4 Channel: 500 W |
| Total rated power output - 4 Ohm (Watts) | 2 Channel: 65 W RMS x 2 @ 14.4 V input - 4 Ohm < 1% THD |
| 4 Channel: 65 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD | |
| Total rated power output - 2 Ohm (Watts) | 2 Channel: 100 W RMS x 2 @ 14.4 V input - 2 Ohm < 1% THD |
| 4 Channel: 100 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD | |
| Total rated power output - 4 Ohm Bridged (Watts) | 2 Channel: 200 W RMS x 1 @ 14.4 V input - 4 Ohm Bridged < 1% THD |
| 4 Channel: 200 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD | |
| Frequency response | 5 Hz - 38 kHz (-3dB, dB @ 4 Ohm rated power) |
| Input sensitivity | 0.3 V - 8 V RMS, user adjustable |
| Input impedance | 5k Ohm nominal |
| High-pass/low-pass full range filter | Yes (user selectable) |
| HP variable crossover frequency | 40 Hz - 600 Hz |
| LP variable crossover frequency | 40 Hz - 160 Hz |
| Warranty | 1 year |
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
PRODUCT DETAILS
Link to 'Long Description'
QUALITY AUDIO AMPLIFICATION
Purpose-built for the marine environment, the AM Series marine amplifiers are designed to enhance your on-water listening experience with quality audio amplification.
Class-AB amplifier design delivers efficiency with reduced distortion.
Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power.
Conformal coated PCBs provide extra protection from the marine elements.
Heat sink provides greater dissipation of heat for enhanced component reliability.
The amplifiers are available in 2-channel and 4-channel configurations.
Overview
| Physical dimensions (Length x Width x Height) | 2 Channel: 11.65″ x 9.02″ x 2.09″ (296 x 229 x 53 mm) |
| 4 Channel: 14.41″ x 9.02″ x 2.09″ (366 x 229 x 53 mm) | |
| Amplifier class | Class-AB |
| Peak power (Watts) | 2 Channel: 400 W |
| /td> | 4 Channel: 500 W |
| Total rated power output - 4 Ohm (Watts) | 2 Channel: 65 W RMS x 2 @ 14.4 V input - 4 Ohm < 1% THD |
| 4 Channel: 65 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD | |
| Total rated power output - 2 Ohm (Watts) | 2 Channel: 100 W RMS x 2 @ 14.4 V input - 2 Ohm < 1% THD |
| 4 Channel: 100 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD | |
| Total rated power output - 4 Ohm Bridged (Watts) | 2 Channel: 200 W RMS x 1 @ 14.4 V input - 4 Ohm Bridged < 1% THD |
| 4 Channel: 200 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD | |
| Frequency response | 5 Hz - 38 kHz (-3dB, dB @ 4 Ohm rated power) |
| Input sensitivity | 0.3 V - 8 V RMS, user adjustable |
| Input impedance | 5k Ohm nominal |
| High-pass/low-pass full range filter | Yes (user selectable) |
| HP variable crossover frequency | 40 Hz - 600 Hz |
| LP variable crossover frequency | 40 Hz - 160 Hz |
| Warranty | 1 year |
