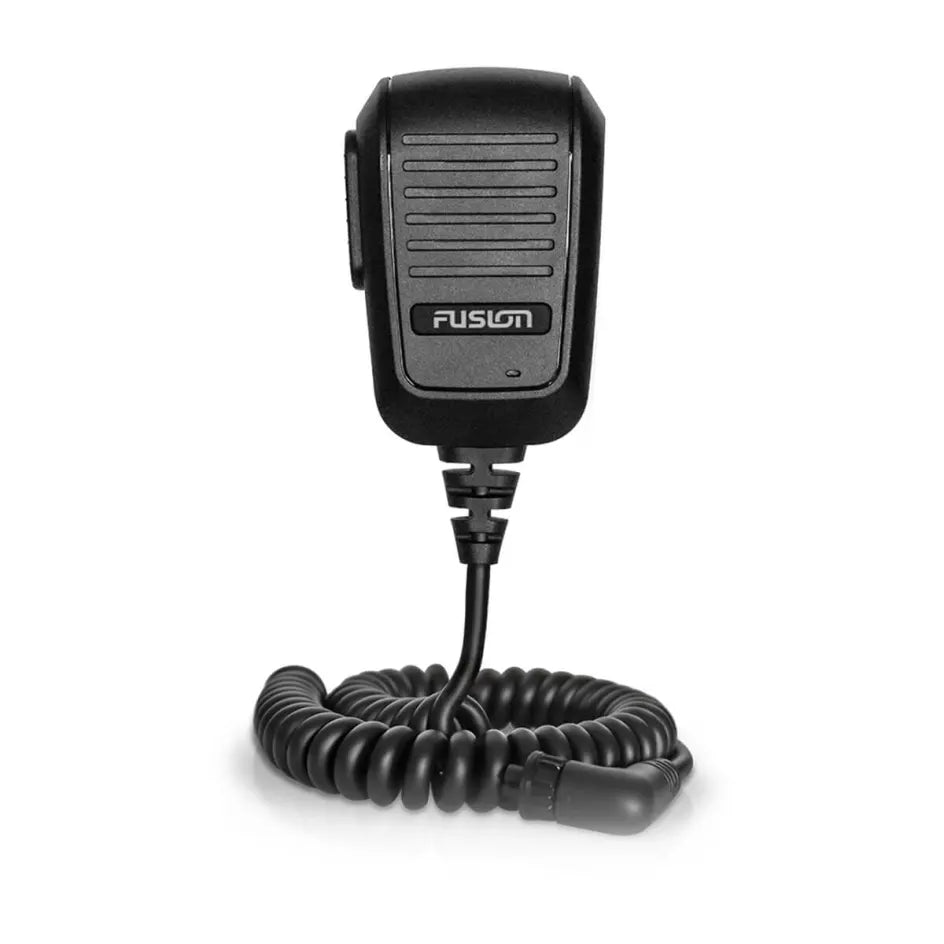

Fusion Handheld Microphone
The Fusion Handheld Microphone is designed for compatible Fusion marine stereos with telemute feature, enabling you to make announcements over your on-board audio entertainment system. Use the Handheld Microphone to communicate with people in and around your boat - the perfect device for communicating when wakeboarding, water-skiing or fishing, for social gatherings or boat raft-ups, on tourist boats and warning others of water-hazard situations.
Compatible Fusion Stereos: MS-RA770, MS-RA670, MS-WB670, MS-RA210, MS-RA70, MS-RA70N, MS-RA70NSX, MS-BB100, 755 Series, 650 Series and more*.
*The Fusion Handheld Microphone is compatible with other Fusion stereos enabled with the telemute feature.
Features:
Compact Design: The Fusion Handheld Microphone features built-in pre-amplification and its compact size ensures that it fits easily in the dash space of your helm using the microphone hanger.
Playback Override: Make announcements even when listening to your favourite song. Simply squeeze the trigger on your Handheld Microphone and the audio playback on your Fusion stereo will be paused, allowing on-board broadcasting.
IPX7 Water Resistant: Designed and engineered for the marine environment, the handheld microphone
Specifications:
- Frequency Response: 100 Hz to 4 kHz
- Maximum Output: 1 V RMS
- Total Harmonic Distortion + Noise (Vo = 1 V RMS, 1 kHz): < 0.1% V RMS
- Gain: +18 ± 0.5 dB
- Load Impedance: 10K ohms
- Operating Voltage: 10.5 to 32 V DC
- Current Consumption (+14.4 V Supply Voltage): 5 mA
- Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Ingress Protection Rating: IPX7
- Dimensions (Width x Height x Depth): 60.35 mm x 87.86 mm x 34 mm [2-3/8" x 3-7/16" x 1-3/8"]
- Compatible Fusion Stereos: MS-RA770, MS-RA670, MS-WB670, MS-RA210, MS-RA70, MS-RA70N, MS-RA70NSX, MS-BB100, 755 Series, 650 Series and more (The Fusion Handheld Microphone is compatible with other Fusion stereos enabled with the telemute feature).
- Warranty: 1 year
Product Code - MS-FHM
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
PRODUCT DETAILS
Link to 'Long Description'
The Fusion Handheld Microphone is designed for compatible Fusion marine stereos with telemute feature, enabling you to make announcements over your on-board audio entertainment system. Use the Handheld Microphone to communicate with people in and around your boat - the perfect device for communicating when wakeboarding, water-skiing or fishing, for social gatherings or boat raft-ups, on tourist boats and warning others of water-hazard situations.
Compatible Fusion Stereos: MS-RA770, MS-RA670, MS-WB670, MS-RA210, MS-RA70, MS-RA70N, MS-RA70NSX, MS-BB100, 755 Series, 650 Series and more*.
*The Fusion Handheld Microphone is compatible with other Fusion stereos enabled with the telemute feature.
Features:
Compact Design: The Fusion Handheld Microphone features built-in pre-amplification and its compact size ensures that it fits easily in the dash space of your helm using the microphone hanger.
Playback Override: Make announcements even when listening to your favourite song. Simply squeeze the trigger on your Handheld Microphone and the audio playback on your Fusion stereo will be paused, allowing on-board broadcasting.
IPX7 Water Resistant: Designed and engineered for the marine environment, the handheld microphone
Specifications:
- Frequency Response: 100 Hz to 4 kHz
- Maximum Output: 1 V RMS
- Total Harmonic Distortion + Noise (Vo = 1 V RMS, 1 kHz): < 0.1% V RMS
- Gain: +18 ± 0.5 dB
- Load Impedance: 10K ohms
- Operating Voltage: 10.5 to 32 V DC
- Current Consumption (+14.4 V Supply Voltage): 5 mA
- Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Ingress Protection Rating: IPX7
- Dimensions (Width x Height x Depth): 60.35 mm x 87.86 mm x 34 mm [2-3/8" x 3-7/16" x 1-3/8"]
- Compatible Fusion Stereos: MS-RA770, MS-RA670, MS-WB670, MS-RA210, MS-RA70, MS-RA70N, MS-RA70NSX, MS-BB100, 755 Series, 650 Series and more (The Fusion Handheld Microphone is compatible with other Fusion stereos enabled with the telemute feature).
- Warranty: 1 year
Product Code - MS-FHM
