This product has been discontinued by Garmin and is no longer available to buy.
Garmin
Garmin Echomap Plus 75cv Chartplotter No Transducer Bluechart G2 UK
Description

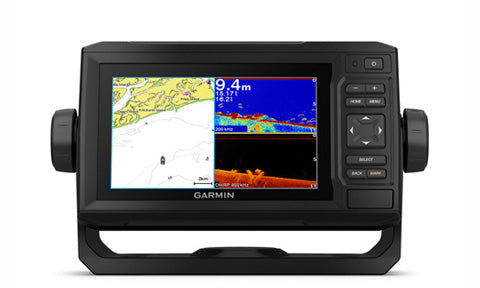

The Garmin ECHOMAP Plus 75cv is a 7 inch keyed chartplotter and fishfinder pairing CHIRP traditional sonar with Garmin ClearVu scanning sonar on a bright, sunlight readable WVGA display. It is supplied with UK and Ireland BlueChart g2 cartography preloaded and includes Garmin Quickdraw Contours mapping for creating personalised maps with 0.3 m (1 ft) contours.
Built in Wi-Fi connects to the ActiveCaptain app, while NMEA 2000 and NMEA 0183 let you integrate sensors, autopilot and other compatible equipment. This unit is supplied without a transducer, so you can choose the right transducer for your boat.
PRODUCT DETAILS
- 7 inch sunlight readable WVGA display, 800 x 480 resolution
- CHIRP traditional sonar plus Garmin ClearVu scanning sonar
- Preloaded UK and Ireland BlueChart g2 cartography
- Garmin Quickdraw Contours mapping creates custom maps
- Built in Wi-Fi plus NMEA 2000 and NMEA 0183 connectivity
- Supplied without transducer; IPX7 waterproof housing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 15.5 x 8.6 cm (6.1 x 3.4 in.), 7 in. diagonal |
| Display resolution | WVGA, 800 x 480 pixels |
| Display type | Colour, keypad controlled |
GPS/GNSS
| Preloaded charts | UK and Ireland BlueChart g2 |
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
Sonar
| Built-in sonar | CHIRP traditional and Garmin ClearVu scanning sonar |
| Sonar frequencies | Traditional 50, 77, 83, 200 kHz; CHIRP ClearVu 260/455/800 kHz |
| Sonar transmit power (RMS) | 500 W |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz (transducer dependent) |
Connectivity
| Networking | NMEA 2000, NMEA 0183, Wi-Fi (ActiveCaptain) |
| Wireless frequency | 2.4 GHz @ 18.5 dBm nominal |
| NMEA 2000 LEN | 1 @ 9 Vdc (75 mA max.) |
| Memory card | 1 microSD card slot; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 25.0 x 13.9 x 5.1 cm (9.8 x 5.5 x 2.0 in.) |
| Weight | 0.77 kg (1.7 lb.) |
| Material | Polycarbonate plastic |
| Compass-safe distance | 65 cm (25.6 in.) |
Electrical
| Input voltage | 9 to 18 Vdc |
| Max. power draw | 15 W |
| Fuse | 3 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
